Husqvarna WA17H42STA (2003) Tractor

Model: WA17H42STA (2003)

Back To Assemblies

Save Part Not Listed?
product name

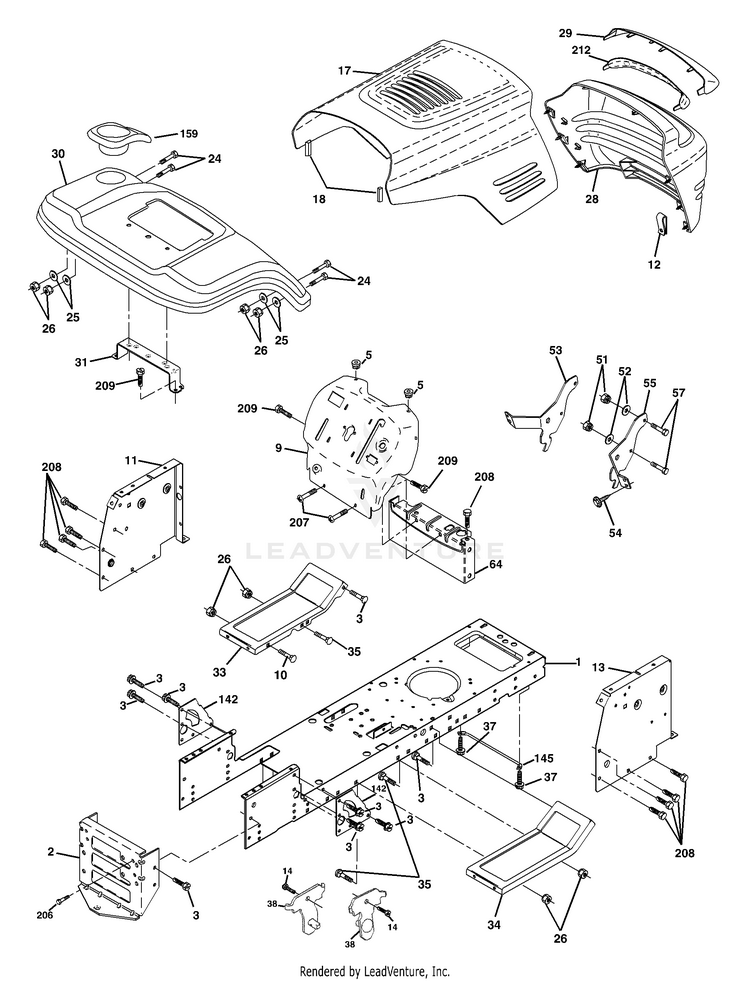

Chassis And Enclosures

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
3
Screw 3/8-16x.75 HUS-17060612
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash P/L HUS-168336X010
...
10
Bolt Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel Dash Lh HUS-174996
...
12
Clip Tinnerman HUS-145660
...
13
Panel Dash Rh HUS-172106
...
14
Screw Thdrol 3/8-16 x 1-1/4 HUS-17490608
...
17
Hood W/Side Louvers HUS-144983X603
...
18
Bumper Hood Large HUS-184921
...
24
Bolt Fin Hex 3/8-16 x 1 Gr 5 HUS-74780616
...
25
Washer 13/32 X 13/16 X 12 Ga HUS-19131312
...
26
Nut Lock Hex W/Ins 3/8-16 Unc HUS-73800600
...
28
Grille LT/PL HUS-178987X428
...
29
Lens HUS-155217X599
...
30
Fender Footrest STLT Pnt HUS-169470X603
...
31
Bracket Support Fender HUS-136619
...
33
Footrest Pnt Lh HUS-179716X603
...
34
Footrest Pnt Rh HUS-179717X603
...
35
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 6/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm. Pivot Mower Rear HUS-175710
...
51
Nut Lock Hex W/Ins 1/4-20 HUS-73800400
...
52
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
53
Bracket Grille Lh HUS-145201
...
54
Screw Hex Wshd 8-18 x 7/8 HUS-161464
...
55
Bracket Grille Rh HUS-145202
...
57
Bolt Hex 1/4-20 x 3/4 HUS-74780412
...
64
Dash Lower STLT HUS-154798
...
142
Plate Reinforcement STLT HUS-175702
...
145
Rod Pivot Chassis/Hood HUS-156524
...
159
Cupholder HUS-169473X428
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
207
Screw Thdrol 5/16-18 x 1/2 HUS-17670508
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
212
Insert Lens Reflect HUS-165919
...
xx
Plug HUS-5479J
