Husqvarna WA1742STA (2003) Tractor

Model: WA1742STA (2003)

Back To Assemblies

Save Part Not Listed?
product name

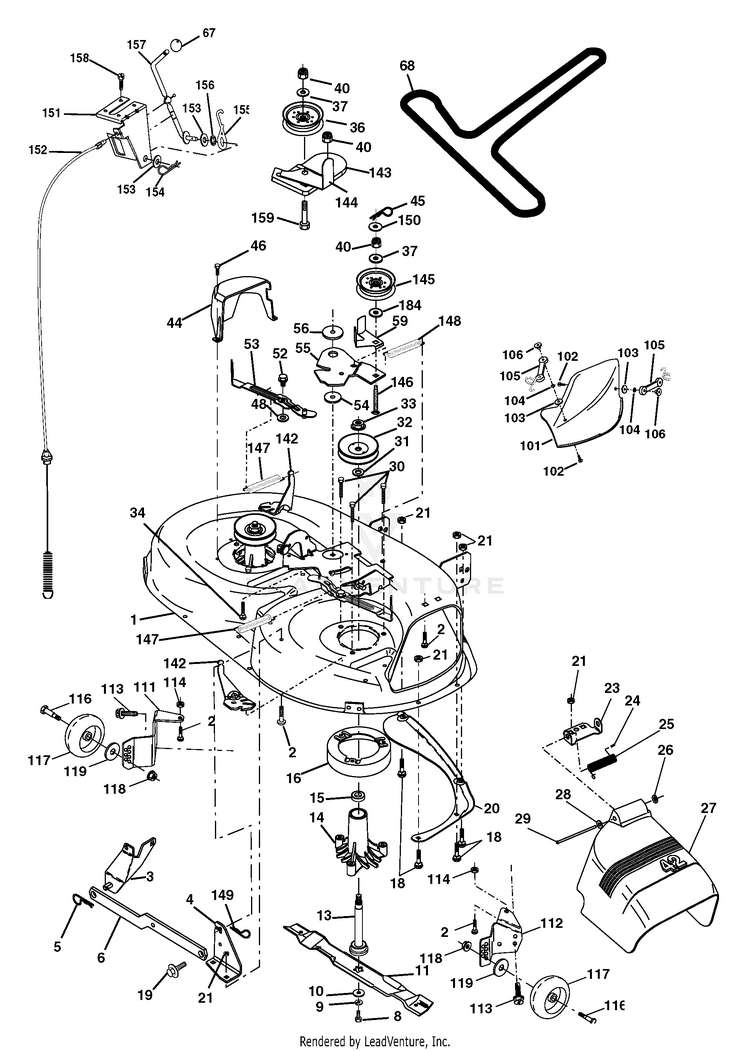

Mower Deck

...
...
1
Mower Deck Assembly, 42" HUS-165892
...
2
Bolt HUS-72140506
...
3
Bracket Assembly,Sway Bar, Front HUS-138017
...
4
Bracket Sway Bar 38/42" eck HUS-165460
...
5
Retainer Spring HUS-STD624008
...
6
Bar Sway Deck HUS-178024
...
8
Bolt, Hex 3/8-24 x 1.25 Gr. 8 HUS-850857
...
9
Washer, Lock HUS-10030600
...
10
Washer, Hardened HUS-140296
...
11
Blade, 42" Mulching Std (For mulching mowers only) HUS-134149
...
11
Blade, 42" Mulching Premium (For better wear when mulching) HUS-139775
...
11
Blade, 42" Hi-Lift (For bagging or discharging) HUS-138971
...
13
Shaft Assembly, Mandrel, Vented HUS-137645
...
14
Housing, Mandrel, Vented HUS-128774
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Stripper, Mower Deck HUS-174493
...
18
Bolt, Carriage 5/16-18 x 5/8 HUS-72140505
...
19
Bolt, Shoulder HUS-132827
...
20
Baffle, Vortex HUS-159770
...
21
Nut Crownlock 5/16-18 Unc HUS-73680500
...
23
Bracket, Deflector HUS-177563
...
24
Cap, Sleeve HUS-105304X
...
25
Spring, Torsion, Deflector HUS-123713X
...
26
Nut, Push HUS-110452X
...
27
Shield, Deflector HUS-130968X428
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-19111016
...
29
Rod, Hinge HUS-131491
...
30
Screw Thdrol DOD PT Hex HUS-173984
...
31
Washer, Spacer HUS-129963
...
32
Pulley, Mandrel HUS-153535
...
33
Nut, Toplock, Flanged HUS-178342
...
34
Bolt HUS-72110614
...
36
Pulley, Idler, Flat HUS-131494
...
37
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
40
Nut Crownlock 3/8-16 Unc HUS-73680600
...
44
Guard, Mandrel, L.H. HUS-140088
...
45
Retainer HUS-4497H
...
46
Screw, Thd. Roll 1/4-20 x 5/8 HUS-137729
...
48
Washer, Hardened HUS-133944
...
52
Bolt, Shoulder 5/16-18 Unc HUS-139888
...
53
Arm Assembly, Pad, Brake HUS-184907
...
54
Washer, Hardened HUS-178515
...
55
Arm, Idler HUS-155046
...
56
Spacer, Retainer HUS-165723
...
59
Guard, TUV Idler HUS-141043
...
67
Knob HUS-106932X
...
68
V-Belt HUS-144959
...
101
Mulcher Cover HUS-136420
...
102
Screw Pan Hd Phillips 10-24 x 5/8 HUS-71081010
...
103
Washer #10 HUS-19061216
...
104
Washer, Lock #10 HUS-10071000
...
105
Latch Assembly, Bagger HUS-160793
...
106
Nut, Weld HUS-2029J
...
111
Bracket Wheel Guage LH HUS-179292
...
112
Bracket Wheel Guage RH HUS-179293
...
113
Screw 3/8-16 x .625 HUS-17060510
...
114
Nut Keps 5/16-18 Unc HUS-73510500
...
115
Bolt 5/16-18 x 5/8 HUS-72110505
...
142
Arm Spring Brake Mower HUS-165890
...
143
Bracket Arm Idler 42" HUS-157109
...
144
Keeper Belt 42" Clutch Cable HUS-158634
...
145
Pulley Idler Flat HUS-165888
...
146
Bolt Carriage Idler HUS-171977
...
147
Spring Extension HUS-131335
...
148
Spring Return Idler HUS-169022
...
149
Retainer Spring Yellow Zinc HUS-165898
...
150
Washer 9/32 x 3/4 x 16 Ga. HUS-19091216
...
151
Bracket Clutch HUS-169670
...
152
Cable Clutch 42 In HUS-169676
...
153
Washer Flat 3/8" Type B HUS-169674
...
154
Spring Retainer HUS-169675
...
155
Spring Retention Lever HUS-169671
...
156
Spacer HUS-169672
...
157
Rod Clutch HUS-169669
...
158
Screw Hex Thd Cut 1/4-20 x 5/8 HUS-17720408
...
159
Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4 HUS-72140614
...
184
Washer 13/32 x 7/8 x 10 Ga. HUS-19131410
...
xx
Mandrel Assembly (Includes housing, shaft and shaft hardware only-pulley not included) HUS-130794
...
xx
Replacement Mower, Complete HUS-171491
