Husqvarna WA1742STA (2003) Tractor

Model: WA1742STA (2003)

Back To Assemblies

Save Part Not Listed?
product name

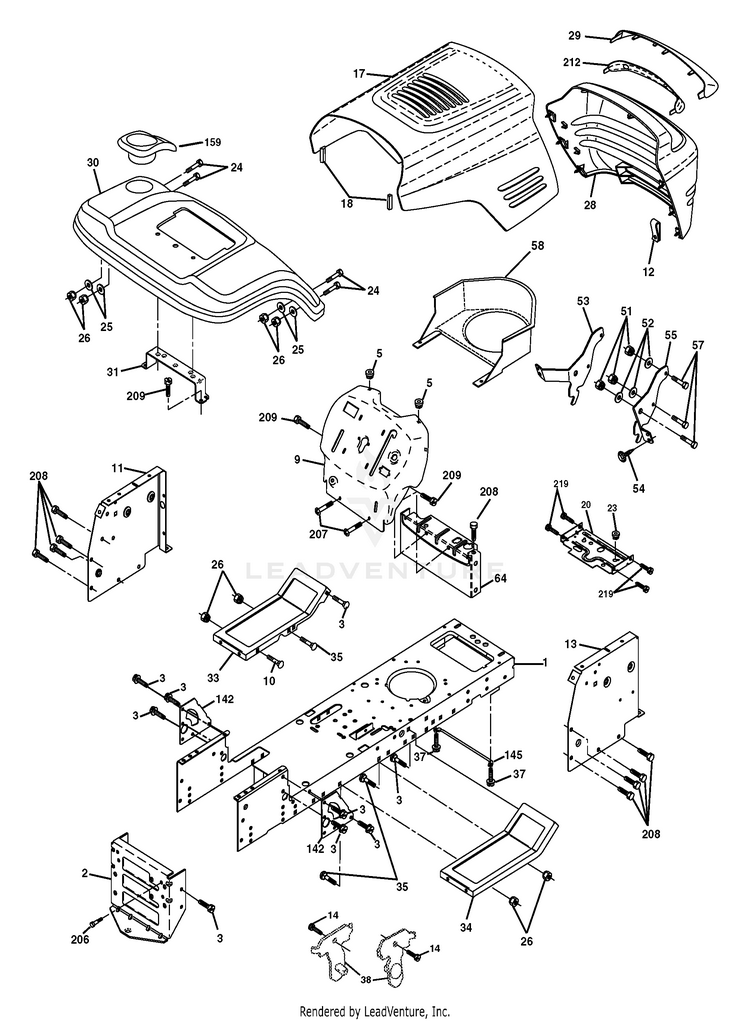

Chassis And Enclosures

...
...
1
Chassis Stamping HUS-174619
...
2
Drawbar HUS-176554
...
3
Screw 3/8-16 x 3/4 HUS-17060612
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash HUS-168337X010
...
10
Bolt, Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel, Dash, L.H. HUS-174996
...
12
Clip Tinnerman Grille HUS-145660
...
13
Panel, Dash, R.H. HUS-172106
...
14
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
17
Hood Assembly HUS-144983X603
...
24
Bolt 3/8-16 x 1 Gr. 5 HUS-74780616
...
25
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
26
Nut HUS-73800600
...
28
Grille Lens Asm HUS-178987X428
...
29
Lens HUS-155217X599
...
30
Fender HUS-169470X603
...
31
Bracket, Fender Support HUS-136619
...
33
Footrest LH HUS-179716X603
...
34
Footrest RH HUS-179717X603
...
35
Bolt 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 5/16-18 x 1/2 Tyt HUS-17490508
...
38
Bracket Asm. Pivot Mower Rear HUS-175710
...
51
Nut Lock w/Insert 1/4-20 Unc HUS-73800400
...
52
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
53
Bracket Grille Pick-off LH HUS-145201
...
54
Screw Hex Wshd. 8-18 x 7/8 HUS-161464
...
55
Bracket Grille Pick-off RH HUS-145202
...
57
Bolt fin Hex 1/4-20 Unc x .75 HUS-74780412
...
58
Duct Air HUS-150157
...
64
Dash Lower STLT HUS-154798
...
142
Plate Reinforcement STLT HUS-175702
...
145
Jod Pivot Chassis/Hood HUS-156524
...
159
Cupholder HUS-169473X428
...
206
Bolt Shoulder 5/16 -18 TT HUS-170165
...
207
Screw Thdrol 5/16-18 x 1/2 TYTT HUS-17670508
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hexwsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
212
Insert Lens Grille HUS-165919
...
257
Bumper Hood HUS-184921
...
xx
Plug, Button HUS-5479J
