Husqvarna WA1742STA (2003) Tractor

Model: WA1742STA (2003)

Back To Assemblies

Save Part Not Listed?
product name

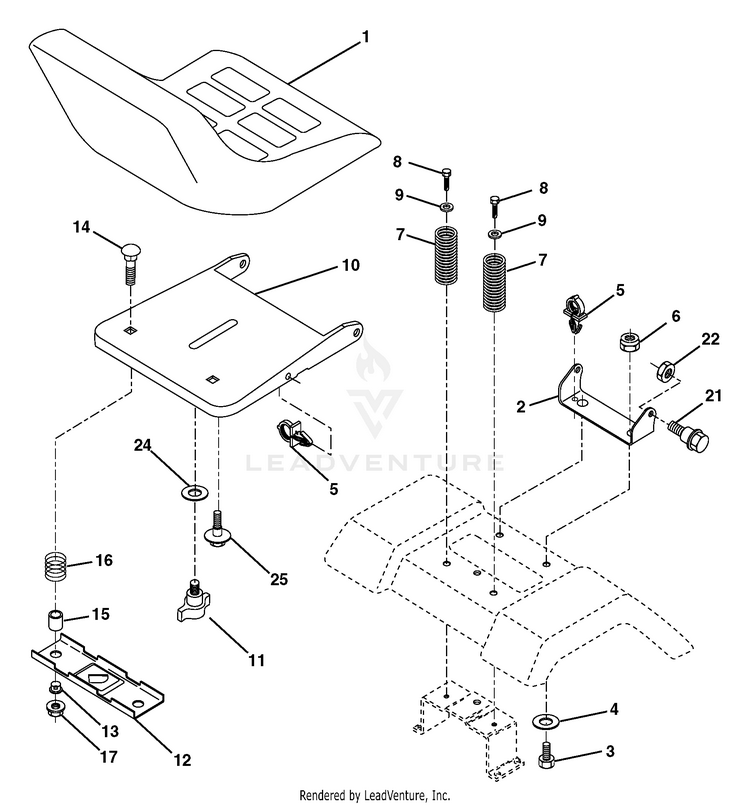

Seat Assembly

...
...
1
Seat HUS-140117
...
2
Bracket, Pivot, Seat HUS-140551
...
3
Bolt HUS-71110616
...
4
Washer 13/32 x 1 x 10 Gauge HUS-19131610
...
5
Clip, Push-In Hinged HUS-145006
...
6
Nut HUS-STD541437
...
7
Spring, Seat HUS-124181X
...
8
Screw 3/8-16 x 1-1/2 HUS-17000616
...
9
Washer 13/32 x 1 x 14 Gauge HUS-19131614
...
10
Pan, Seat HUS-182493
...
11
Knob Seat HUS-166369
...
12
Bracket, Switch Mounting HUS-121246X
...
13
Bushing, Snap HUS-121248X
...
14
Bolt, Carriage 1/4-20 x 1-1/2 HUS-72050412
...
15
Spacer, Split .28 x .88 HUS-134300
...
16
Spring HUS-121250X
...
17
Locknut, Flange 1/4 Grade 5 HUS-123976X
...
21
Bolt, Shoulder 5/16-18 Unc HUS-171852
...
22
Nut HUS-73800500
...
24
Washer 17/32 x 1-3/16 x 12 Ga. HUS-19171912
...
25
Bolt Shoulder 5/16-18 x .62 HUS-127018X
