Husqvarna WA15542A (2003) Tractor

Model: WA15542A (2003)

Back To Assemblies

Save Part Not Listed?
product name

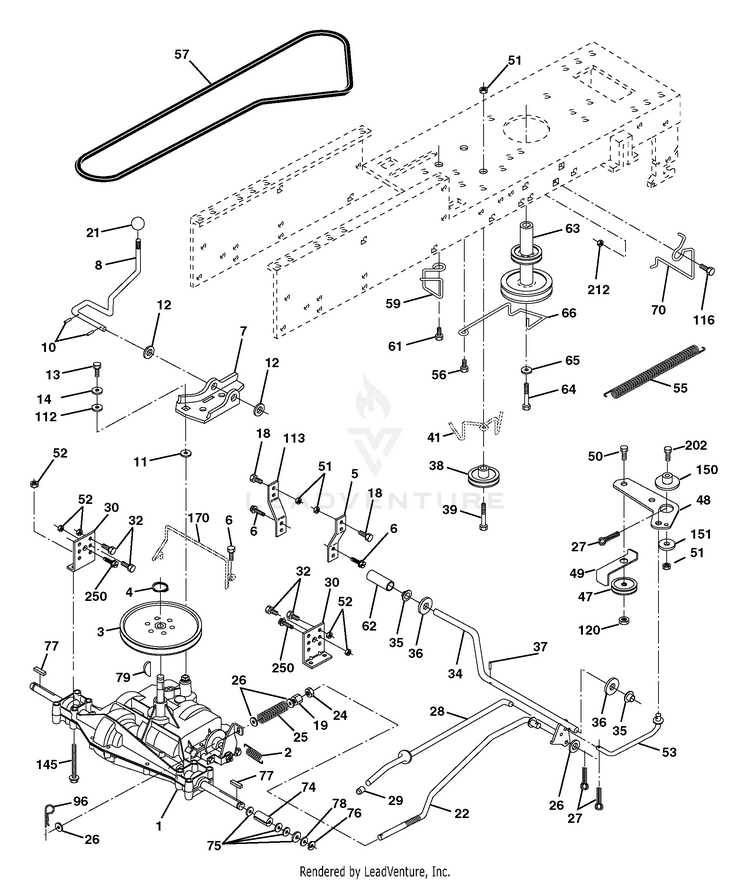

Ground Drive

...
...
2
Spring Extension Brake HUS-146682
...
3
Pulley Transaxle 18" tires HUS-123666X
...
4
Ring Retainer # 5100-62 HUS-12000028
...
5
Strap Torque Rh Pnt Blk HUS-121520X
...
6
Screw 5/16-18 X 3/4 HUS-17060512
...
7
Bracket T/A Saddle Shift HUS-162240
...
8
Rod Shifter Black (dana) HUS-131679
...
10
Pin,Cotter HUS-76020416
...
11
Washer Plate Shf 388 Sq Hole HUS-105701X
...
12
Washer 15/32 X 3/4 X 16ga HUS-19151216
...
13
Bolt 1/4-28 UNF Gr. 8 W/Patch HUS-74550412
...
14
Washer HUS-10040400
...
18
Bolt Fin Hex 3/8-16 UNC x 1 Gr. 5 HUS-74780616
...
19
Nut HUS-73800600
...
21
Knob Rd 1/2-13 Plstc Thds Blk HUS-106933X
...
22
Rod Brake Lt HUS-130804
...
24
Nut HUS-73350600
...
25
Spring Rod Brake 2 00 Zinc HUS-106888X
...
26
Washer HUS-19131316
...
27
Pin HUS-76020412
...
28
Rod Brake Parking HUS-175765
...
29
Cap Parking Brake HUS-71673
...
30
Bracket Transmission HUS-174973
...
32
Bolt HUS-74760512
...
34
Shaft Asm Pedal Foot HUS-175578
...
35
Bearing Nylon Blk 629 Id HUS-120183X
...
36
Washer HUS-19211616
...
37
Roll Pin HUS-1572H
...
38
Pulley Idler Composite HUS-179114
...
39
Bolt Fin Hex 3/8-16 Unc x 3 HUS-74760648
...
41
Keeper Belt Idler HUS-175556
...
47
Pulley Idler V Groove Plastic HUS-127783
...
48
Bellcrank Clutch HUS-154407
...
49
Retainer Belt Style Spring HUS-123205X
...
50
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
51
Nut HUS-73680600
...
52
Nut HUS-73680500
...
53
Link Clutch 7 66 HUS-105710X
...
55
Spring Return Clutch 6 75 HUS-105709X
...
56
Screw 3/8-16 x 1-1/4 HUS-17060620
...
57
V-belt Ground Drive 95 HUS-130801
...
59
Keeper Belt Chassis Span Ctr. HUS-169691
...
61
Screw 3/8-16 x .875 HUS-17120614
...
62
Cover Pedal Blk Round HUS-8883R
...
63
Pulley Engine HUS-175410
...
64
Bolt, Hex 7/16-20 x 4 Grade 5 HUS-71170764
...
65
Washer, Lock, Hvy Hlcl Spring 7/16 HUS-10040700
...
66
Keeper Belt Engine Flproof HUS-154778
...
70
Guide Belt Dr Mower Rh HUS-134683
...
74
Spacer Axle HUS-137057
...
75
Washer 25/32 X 1 1/4 X 16 Ga HUS-121749X
...
76
E Ring HUS-12000001
...
77
Key Square 2 0 X 1845/ 1865 HUS-123583X
...
78
Washer 25/32 X 1 5/8 X 16ga HUS-121748X
...
79
Key Woodruff HUS-2228M
...
96
Retainer Spring 1" HUS-4497H
...
112
Washer 9/32 X 3/4 X 10 Ga HUS-19091210
...
113
Strap Torque Lh HUS-127285X
...
116
Bolt, Rdhd Sqnk 3/8-16 x 1.00 HUS-72140608
...
120
Nut Lock Flg 3/8-16 HUS-73900600
...
145
Bolt Hex Flghd 5/16-18 x Gr. 5 HUS-74490540
...
150
Spacer Retainer HUS-175456
...
151
Washer 13/32 x 2 x 10 Ga. HUS-19133210
...
170
Keeper Belt HUS-178394
...
202
Bolt Rd Hd 3/8-16 Unc x 1-3/4 Gr. 5 HUS-72110614
...
212
Nut Hex Flange Lock HUS-145212
