product name

Husqvarna W53 SE - 968999289 (2007-03) Walk Behind Mower

Model: W53 SE - 968999289 (2007-03)

Save Part Not Listed?
product name

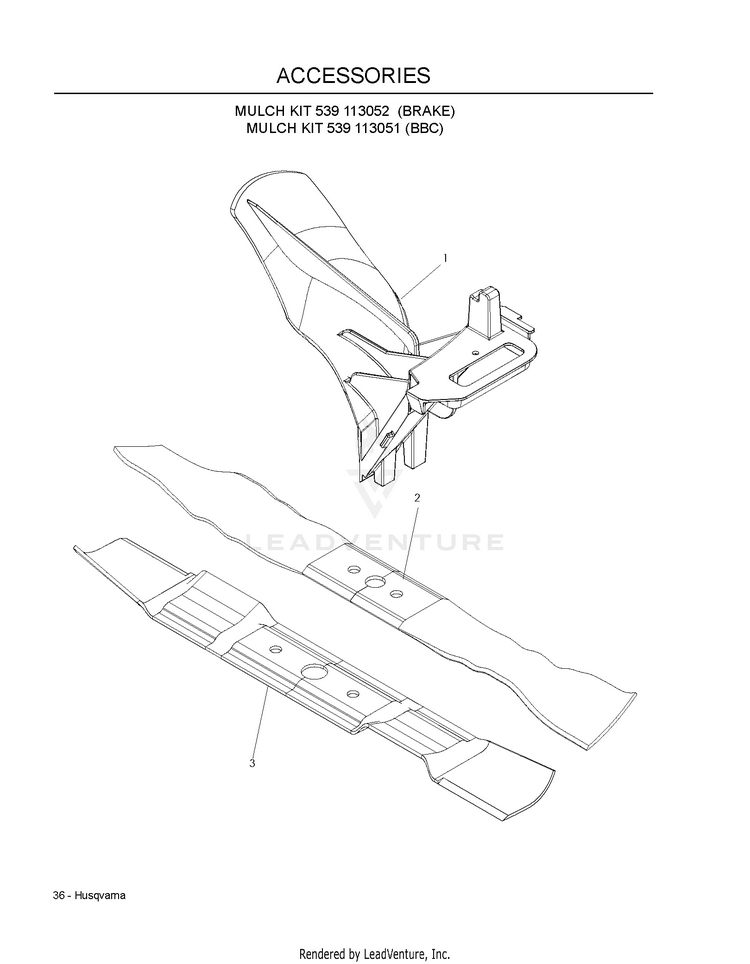

ACCESSORIES

...
...
3
BLADE, 21", BBC MULCH HUS-539111958
...
2
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
1
MULCH PLUG HUS-539111515

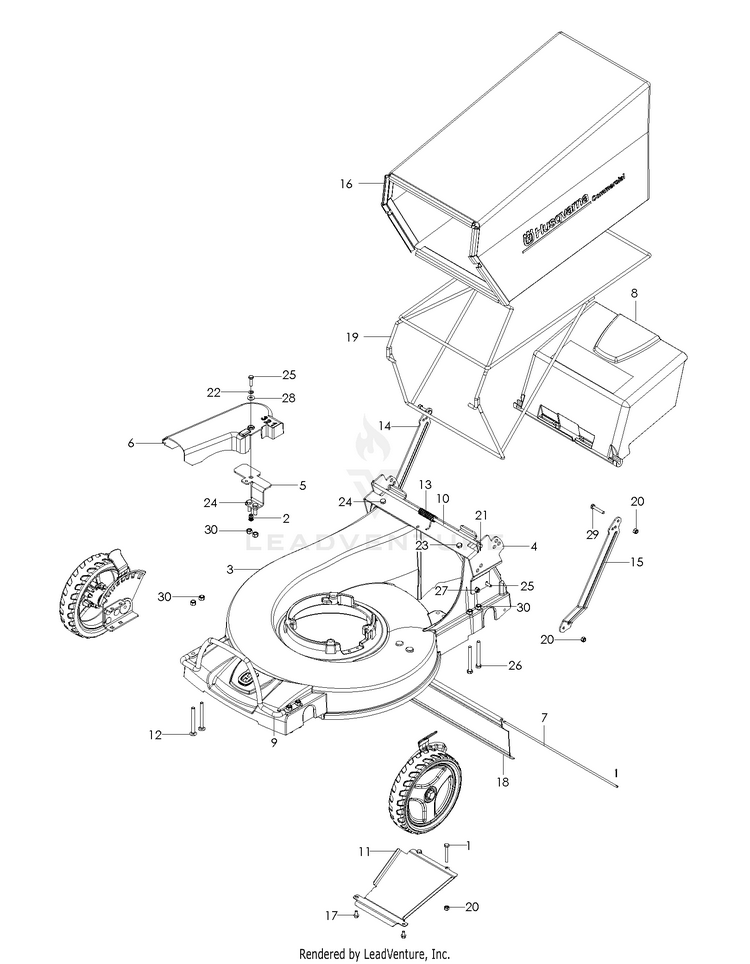

CHASSIS / FRAME

...
...
1
HCS 1/4C X 2 HUS-539101313
...
20
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
12
RHSNB, 5/16C X 3 1/4, GR5 HUS-539111977
...
17
SCREW, 1/4-14 X 1/2, THD FORM HUS-539112793
...
23
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
22
Washers HUS-596564801
...
27
Screws HUS-596230901
...
6
BELT SHIELD HUS-539111536
...
5
DECK BRACKET HUS-539111530
...
16
GRASS CATCHER - DUST SKIRT "MODELS 968999287, 968999289 ONLY" HUS-539112948
...
25
HCS 1/4 X 1 HUS-539990548
...
14
HANDLE BRACE, RIGHT RT HUS-539112047
...
8
DESCHARGE FLAP HUS-539111540
...
19
BAG FRAME HUS-539113545
...
13
SPRING TORSION HUS-539111995
...
11
CHUTE BOTTOM HUS-539111964
...
28
Washers HUS-597338501
...
18
DECK FLAP - REAR HUS-539130536
...
7
FLAP ROD HUS-539111538
...
3
DECK W/DECALS W21 HUS-539113049
...
10
HINGE ROD HUS-539111868
...
21
COTTER PIN 3/32 X 3/4 HUS-539990037
...
9
ENGINE GUARD HUS-539111863
...
30
Nuts HUS-596583702
...
16
GRASS BAG - W21 HUS-539112293
...
15
HANDLE BRACE, LEFT LT HUS-539112111
...
4
TOP SADDLE HUS-539111521
...
2
KNURLED INSERT HUS-539108147
...
24
Bolts HUS-596580801
...
29
SCW 1/4-20 X 1-1/2 HEX HUS-539990639
...
26
HCS 5/16 X 3 HUS-539990553

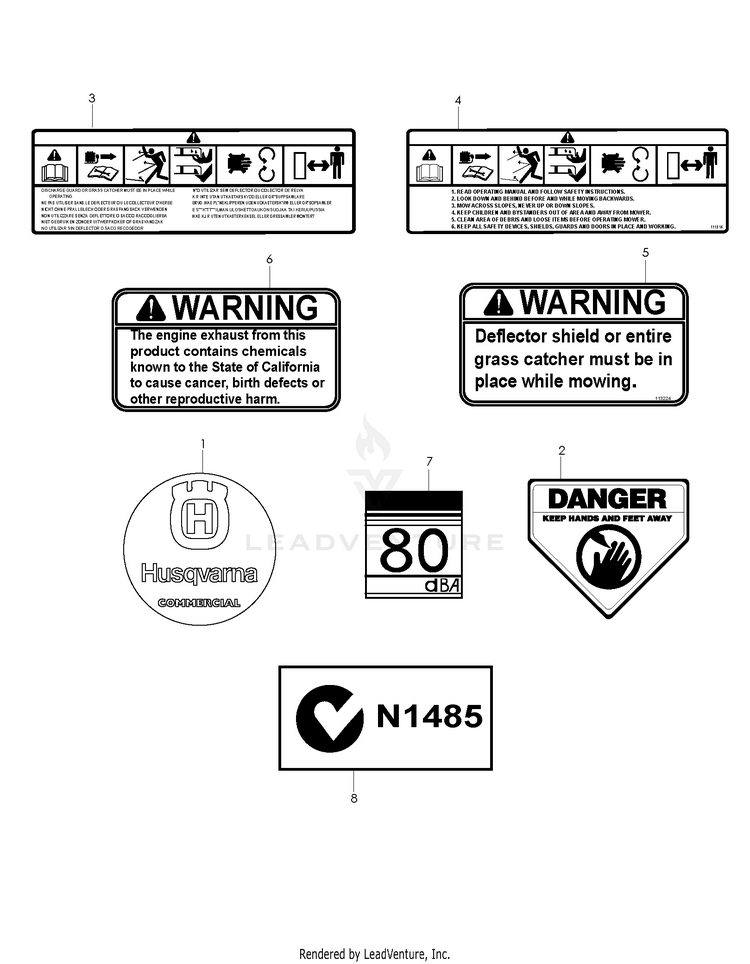

DECALS

...
...
3
DECAL, WARNING, MULTI HUS-539130240
...
4
DECAL, SAFETY GRAPHICS HUS-539111514
...
1
DECAL, CROWN ROUND HUS-539130239
...
8
DECAL, ECM, AUSTRALIA AUSTRALIA HUS-539110279
...
6
DECALS.WARN.CA.SPKARREST/PROP HUS-596024201
...
7
DECAL, 80DBA, AUSTRALIA AUSTRALIA HUS-539110278
...
5
DECAL, CAUTION HUS-539113224
...
2
DECAL, CPSC HUS-539913010

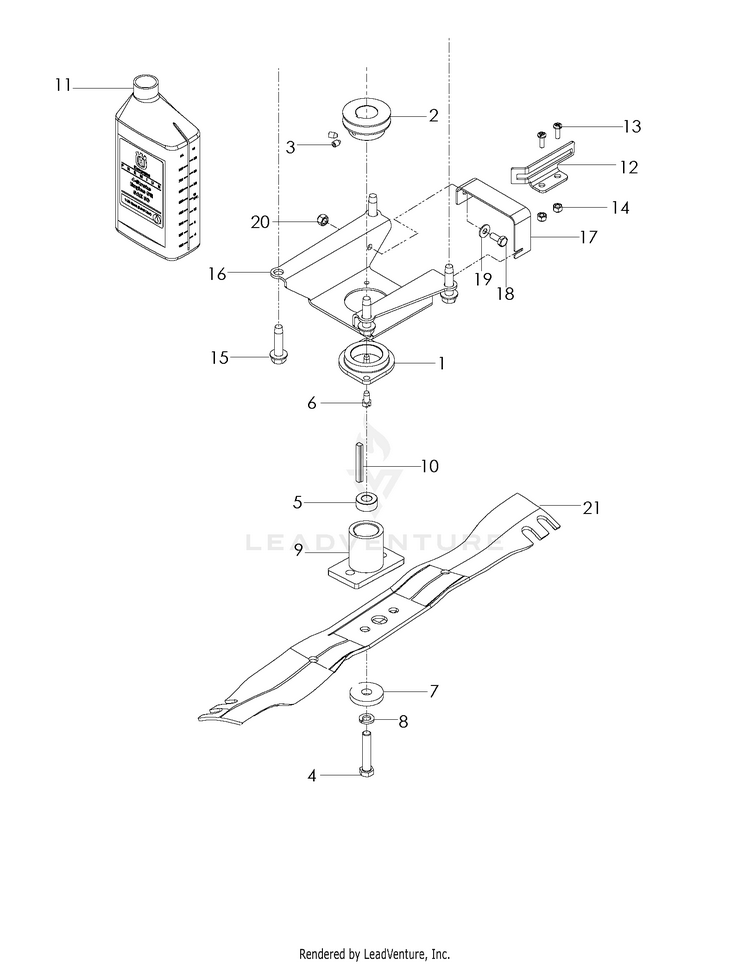

ENGINE PLATE

...
...
15
BOLT 3/8-16 X 1 1/2 ZINC CLEAR HUS-539110025
...
13
Screws HUS-596039001
...
9
BLADE ADAPTER HUS-539111526
...
6
HEX CAP SCREW 1/4 HUS-539105532
...
16
BRACKET-SHAFT SUPT HUS-539130595
...
21
BLADE.21.PUSH 968999289 HUS-532199377
...
18
Bolts HUS-596582501
...
7
WASHER HUS-532126197
...
2
ENGINE PULLEY HUS-539111527
...
5
BLADE DRIVER SPACER HUS-539111975
...
4
HCS 3/8-24 X 2, GR8 HUS-539108506
...
19
Washers HUS-596582301
...
20
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
14
Hardware HUS-596040801
...
8
Washers HUS-596238701
...
1
BEARING - SHAFT SUPPORT HUS-539114921
...
12
DECK GUARD, BBC HUS-539113391
...
3
SCREW, 1/4-20 X 3/8, SET HUS-539108561
...
10
KEY, STEPPED HUS-539112794
...
11
OIL W/LABEL, QT HUS-539112946
...
17
BELT KEEPER FRONT BLACK HUS-539131648

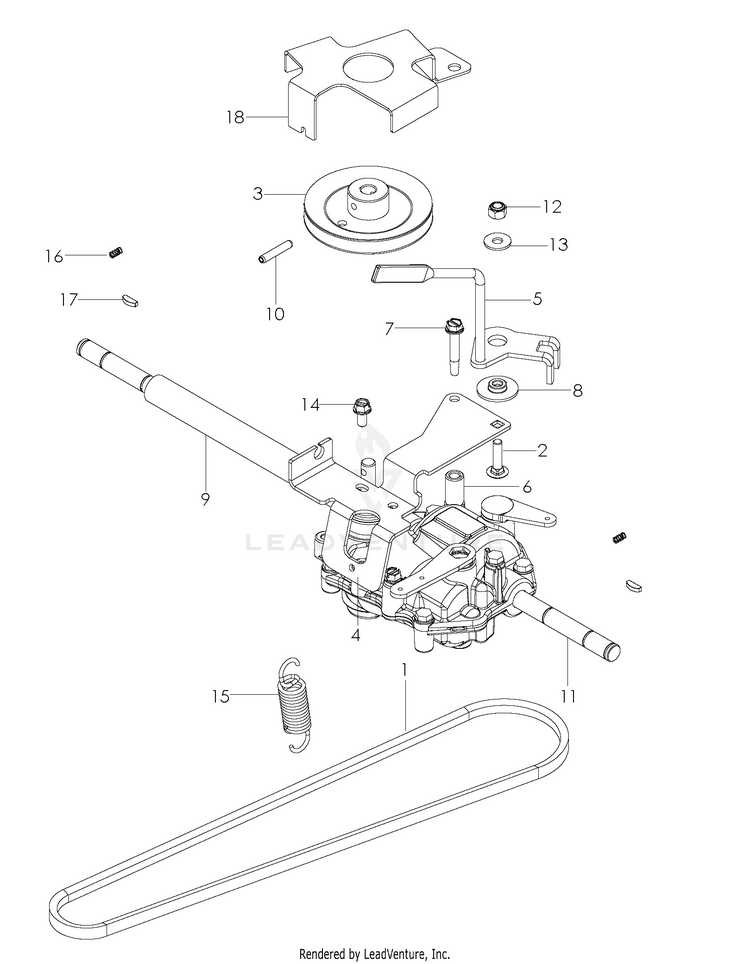

TRANSMISSION

...
...
4
CABLE BRACKET HUS-539111529
...
17
WOODRUFF KEY, SPECIAL HUS-539111893
...
2
BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801
...
3
DRIVEN PULLEY HUS-539111528
...
15
SPRING, TRANSMISSION HUS-539111890
...
1
BELT, 21 MOWER HUS-539111531
...
18
KIT - BELT KEEPER HUS-539131366
...
9
SHAFT COVER HUS-539112915
...
10
SPIRAL PIN, 3/16 X 1 1/8 HUS-539113100
...
6
TRANSMISSION SPACER HUS-539111877
...
7
HCS, 1/4-14 X 1 1/2, SELF TAP HUS-539112046
...
11
TRANSMISSION W/GREASE SLOT T13 HUS-539113139
...
14
SCREW, 1/4-14 X 3/4, SELF TAP HUS-539991081
...
5
SHIFTER HUS-539111535
...
8
PIVOT BUSHING HUS-539112911
...
16
KEY SPRING HUS-539111891
...
12
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
13
Washers HUS-597338501

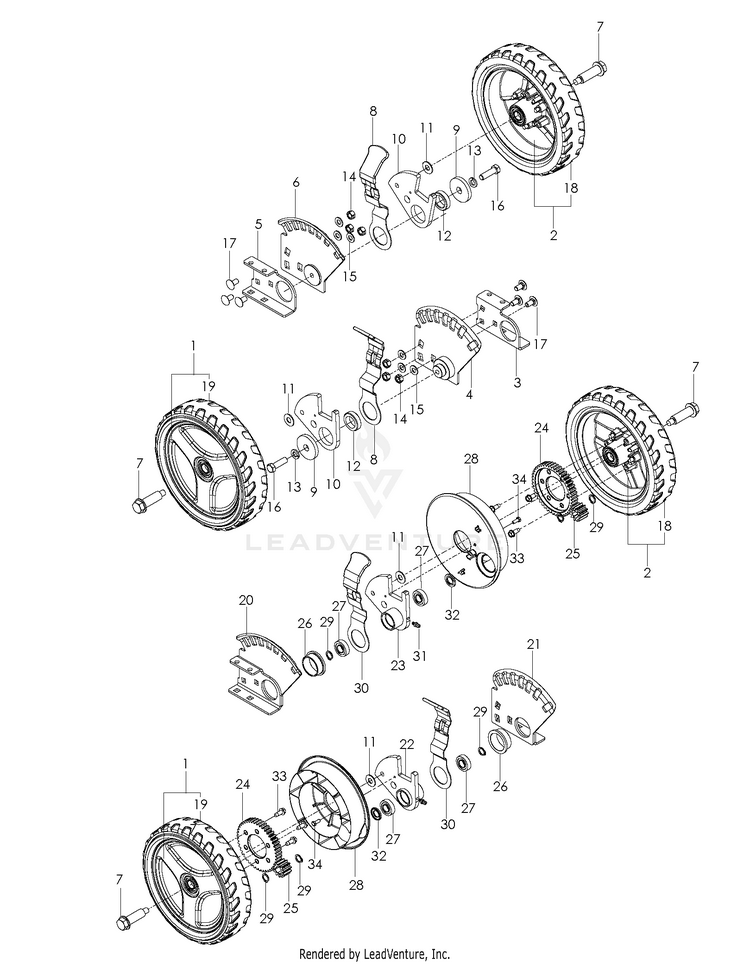

WHEELS & TIRES

...
...
10
WHEEL PLATE, FRONT HUS-539111955
...
20
WHEEL MOUNT, LEFT LT HUS-539111513
...
22
OUTER WHEEL, LEFT LT HUS-539111519
...
15
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
14
Nuts HUS-596580701
...
32
WASHER, SPACER HUS-539113138
...
xx
BEARING, WHEEL NOT SHOWN HUS-539111504
...
29
RETAINING RING, 1/2, EXT HUS-539111872
...
34
Screws HUS-596582801
...
7
SHOULDER BOLT HUS-539111873
...
2
WHEEL ASM - 9" RT HUS-539130853
...
17
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
27
BEARING, TRANS SHAFT HUS-539111517
...
31
ZERK, 3/16, DRIVE IN HUS-539115638
...
24
PINION GEAR, 11 TOOTH 11 TOOTH HUS-539111509
...
4
FRONT PLATE, LEFT LT HUS-539111888
...
33
SCREW 1/4 X 5/8 HUS-539990362
...
21
WHEEL MOUNT, RIGHT RT HUS-539111875
...
11
AXLE WASHER HUS-539112789
...
8
LEVER HUS-539111894
...
30
LEVER HUS-539111950
...
6
FRONT PLATE, RIGHT RT HUS-539111889
...
26
BUSHING HUS-539111516
...
23
OUTER WHEEL, RIGHT RT HUS-539111867
...
9
Washers HUS-596770301
...
25
DRIVEN GEAR, 45 TOOTH 45 TOOTH HUS-539111511
...
19
WHEEL ASM - 9" LT HUS-539130853
...
5
FRONT DECK PLATE, RIGHT RT HUS-539111887
...
18
WHEEL ASM - 9" RT HUS-539130853
...
3
FRONT DECK PLATE, LEFT LT HUS-539111886
...
28
DEBRIS GUARD HUS-539111547
...
1
WHEEL ASM - 9" LT HUS-539130853
...
12
BUSHING HUS-539110267
...
16
HCS 3/8C X 1 1/4 GR5 HUS-539976941
...
13
Washers HUS-596238701
