Husqvarna Tuff Torq K55J Transaxle Engine/Transaxles

Model: Tuff Torq K55J Transaxle

Back To Assemblies

Save Part Not Listed?
product name

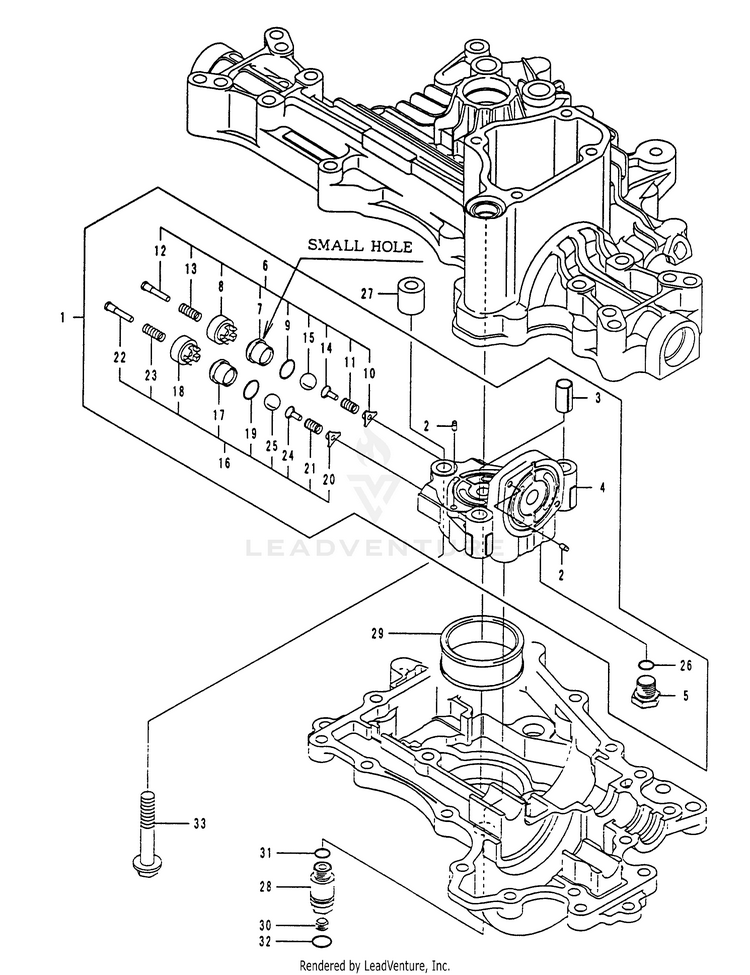

Center Case Assy.

...
...
1
CENTER CASE CMP. HUS-19216324500
...
2
KNOCK PIN 3.5 HUS-19216324420
...
3
KNOCK PIN 12 X 22 HUS-19215424450
...
4
CENTER CASE SERVICE: NO HUS-19216324510
...
5
PLUG PF1/4 HUS-19215424550
...
6
VALVE(A-1 SET HUS-19216324610
...
7
SLEEVE (A1 SERVICE: NO HUS-19216324641
...
8
VALVE(B SERVICE: NO HUS-19215424660
...
9
PACKING 1015 HUS-19215424670
...
10
HOLDER(BYPASS SERVICE: NO HUS-19215424690
...
11
SPRING SERVICE: NO HUS-19215424701
...
12
PUSH PIN SERVICE: NO HUS-19215424710
...
13
SPRING PUSH PIN SERVICE: NO HUS-19216324720
...
14
HOLDER (BALL HUS-19215424730
...
15
BALL 3/8 SERVICE: NO HUS-24190120001
...
16
VALVE (A-2 SET HUS-19216324620
...
17
SLEEVE (A2 SERVICE: NO HUS-19216324650
...
18
VALVE (B SERVICE: NO HUS-19215424660
...
19
PACKING 1015 HUS-19215424670
...
20
HOLDER(BYPASS SERVICE: NO HUS-19215424690
...
21
SPRING SERVICE: NO HUS-19215424701
...
22
PUSH PIN SERVICE: NO HUS-19215424710
...
23
SPRING PUSH PIN SERVICE: NO HUS-19216324720
...
24
HOLDER (BALL HUS-19215424730
...
25
BALL 3/8, SERVICE: NO HUS-24190120001
...
26
PACKING P 11 HUS-24311000110
...
27
COLLAR 10 X 20 X 20 HUS-19216324760
...
28
CONNECTER HUS-19216324900
...
29
FILTER HUS-19216324960
...
30
PLUG PT 1/8 HUS-23871010000
...
31
PACKING P 11 HUS-24311000100
...
32
PACKING P 14 HUS-24311000140
...
33
BOLT 10 X 60 HUS-26106100602
