Husqvarna Tec (1997-04) Engine/Transaxles

Model: Tec (1997-04)

Back To Assemblies

Save Part Not Listed?
product name

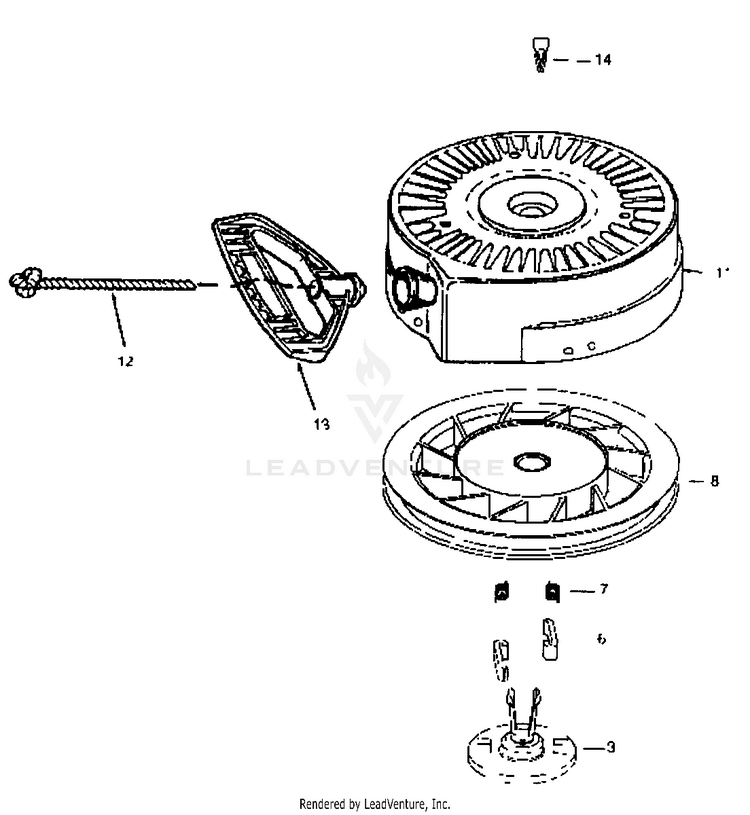

Rewind Starter (590742)

...
...
xx
Rewind Starter HUS-590742
...
3
Retainer HUS-590740
...
6
Starter Dog HUS-590616
...
7
Dog Spring HUS-590617
...
8
Pulley & Rewind Spring Ass'y. HUS-590645A
...
11
Starter Housing Ass'y. HUS-590647
...
12
Starter Rope (Length 98" x 9/64" dia.) HUS-590535
...
13
Mitten Grip Handle (Not included with starter) HUS-590574
...
14
Locking Tab HUS-590741
