Husqvarna TS22H50A (1996) Tractor

Model: TS22H50A (1996)

Back To Assemblies

Save Part Not Listed?
product name

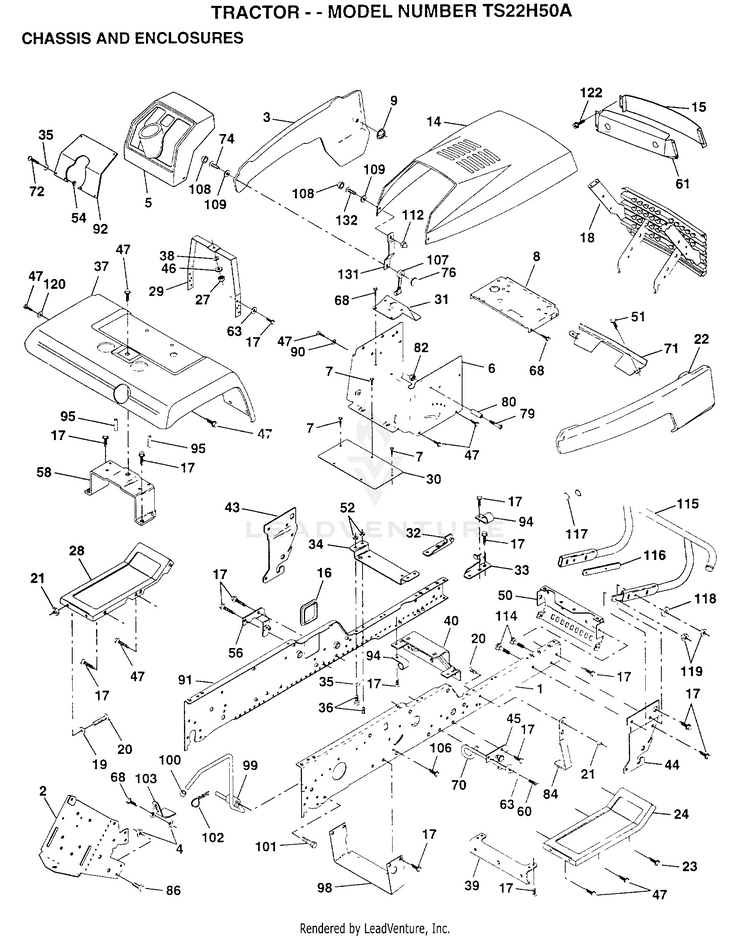

CHASSIS AND ENCLOSURES

...
...
1
"RAIL,FRAME RH" HUS-150253
...
2
DRAWBAR GT HUS-140506
...
3
PANEL ASM SIDE LH HUS-150302X505
...
4
NUT.7/16 HUS-73800700
...
5
DASHBOARD BLACK HUS-140398
...
6
"DASH AS.,LOWER" HUS-150273
...
7
SCREW HUS-17720408
...
8
SUPPORT.DASH.BTRY HUS-145166
...
9
PAL NUT LT HUS-108067X
...
14
HOOD ASM HUS-150301X505
...
15
LENS.BAR.CLEAR HUS-146459
...
16
COVER ACCESS HUS-121794X
...
17
SCREW HUS-17490612
...
18
GRILLE HUS-150198
...
19
WASHER HUS-19131312
...
20
BOLT HUS-74760616
...
21
SUB= 73690600 HUS-73680600
...
22
PANEL ASM RH HUS-150303X505
...
23
SCREW GTV HUS-17490616
...
24
FOOTREST.RH.LT/GT HUS-145243X505
...
27
SUB= 50675 HUS-73220400
...
28
FOOTREST.LH.LT/GT HUS-145244X505
...
29
DASH.SUPT.YP/HUSQ HUS-145205
...
30
SADDLE.HYDRO.95 HUS-145052
...
31
BRAKET.SUPT.STEER HUS-145183
...
32
BRACKET ASM FRAME HUS-141315
...
33
BRACKET ASM FRAME HUS-141314
...
34
BRACKET.ENG.SUPT. HUS-142131
...
35
WASHER HUS-19111116
...
36
BOLT HUS-74780512
...
37
FENDER.PNT. HUS-140002X505
...
38
WASHER PM HUS-19091216
...
39
BRACKET.AXLE.FRT. HUS-136961
...
40
SUB= 156111 HUS-142132
...
43
BRACKET.SUS.FT.LH HUS-136939
...
44
BRACKET.SUS.FT.RH HUS-136940
...
45
SUB= 155887 HUS-138460
...
46
LOCKWASHER HUS-10040400
...
47
SCREW LT HUS-17490608
...
50
"BRKT CHASSIS,FRNT" HUS-152728
...
51
SCREW CRT HUS-17580408
...
52
SUB= 73690500 HUS-73680500
...
54
NUT HUS-73510500
...
56
SUB= 155886 HUS-138461
...
58
BRKT.ASM.FENDER HUS-137113
...
60
SCREW HUS-17490620
...
61
BEZEL.ASM. HUS-147717
...
63
WASHER HUS-19131614
...
68
SCREW LT HUS-17490508
...
70
GUIDE.BELT.MID.SP HUS-137159
...
71
STRAP.GRILLE.PNT. HUS-144916X505
...
72
SCREW HUS-74180512
...
74
SCREW HUS-74191008
...
76
WELDNUT HUS-2029J
...
79
SCREW HUS-74981020
...
80
SPACER LT HUS-7206J
...
82
NUT HUS-73731000
...
84
STOP.OVER.CENTER HUS-142992
...
86
BOLT HUS-74760716
...
90
LOCKWASHER HUS-11050600
...
91
"RAIL,FRAME LH" HUS-150851
...
92
PLATE YP SLKSCR HUS-140130X012
...
94
CLIP GTV HUS-100207K
...
95
NUT-PUSH YT HUS-105531X
...
98
BRACKET SKID CHAS HUS-140503
...
99
ROD BYPASS HUS-140871
...
100
CAP HUS-124236X
...
101
SCREW LT HUS-17490628
...
102
RETAINER M HUS-4497H
...
103
LOCK BYPASS BRKT HUS-142273
...
106
SUB= 157722 HUS-138776
...
107
HOOD LATCH T HUS-109808X
...
108
SNAP CAP LT HUS-110356X
...
109
WASHER LT HUS-110357X
...
112
ACORN NUT RB HUS-60867
...
114
BOLT.3/8-14X1.25 HUS-72140610
...
115
BUMPER.ASM HUS-150300
...
116
BRACKET.EXT.BUMP. HUS-141461
...
117
PLUG.PLASTIC HUS-143679
...
118
WASHER HUS-19131316
...
119
SUB= 73690600 HUS-73680600
...
120
WASHER HYT HUS-19131616
...
122
SUB= 91817030814 HUS-17030814
...
131
BKT.SPT.HOOD/PANL HUS-150195
...
132
SCREW.10-24X3/8. HUS-74291006
...
xx
PLUG-DASH T HUS-8022J
