Husqvarna TS20H50B (1994) Tractor

Model: TS20H50B (1994)

Back To Assemblies

Save Part Not Listed?
product name

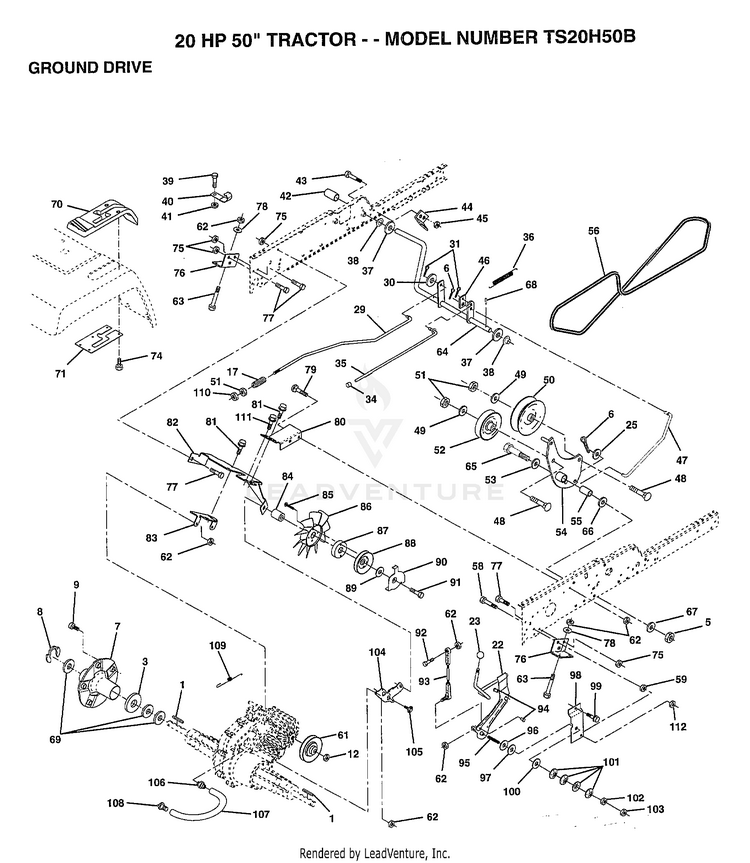

GROUND DRIVE/20 HP 50"

...
...
1
KEY 1/4 X 2.5 HUS-7070E
...
3
WASHER T HUS-7563R
...
5
SUB= 73690600 HUS-73680600
...
6
COTTER PIN HUS-76020412
...
7
HUB WHEEL ASM HUS-140507
...
8
E RING HYT HUS-12000053
...
9
BOLT.HUB.WHL.REAR HUS-140080
...
12
SUB= 73360800 HUS-73940800
...
17
SPRING ROD BRAKE HUS-140921
...
22
SHAFT ARM ASM HUS-140498
...
23
KNOB.DUCKHEAD.1/2 HUS-121274X
...
25
WASHER HUS-19131316
...
29
ROD BRAKE HUS-140494
...
30
WASHER HUS-19131614
...
31
SUB= 3145 HUS-76020312
...
34
PLUNGER CAP T HUS-71673
...
35
ROD BRAKE PART GT HUS-137648
...
36
SUB= 149412 HUS-138364
...
37
WASHER HUS-121749X
...
38
NYLINER T HUS-110895X
...
39
SCREW HUS-74321016
...
40
ACT-SWITCH T HUS-5304J
...
41
SUB= 69180 HUS-73631000
...
42
PEDAL COVER T HUS-8883R
...
43
BOLT LT HUS-74760412
...
44
BRKT SWITCH GT HUS-104601X
...
45
NUT HUS-73800400
...
46
RETAINER SPRING HUS-121358X
...
47
ROD.CLUTCH HUS-138228
...
48
BOLT HUS-72110614
...
49
WASHER HUS-19131413
...
50
FLAT IDLER PULLEY HUS-131494
...
51
NUT HUS-73800600
...
52
PULLEY.IDLER.V.GR HUS-139123
...
53
WASHER T HUS-207J
...
54
ARM.ASM.IDLER.CLU HUS-138390
...
55
"LY, BEARING" HUS-105706X
...
56
BELT-V 84.5 HUS-140218
...
58
BOLT HUS-74760724
...
59
NUT HUS-73220700
...
61
PULLEY TRANSAXLE HUS-140488
...
62
NUT HUS-73800500
...
63
BOLT FIN HEX 5/16 HUS-74780548
...
64
SUB= 154752 HUS-137649
...
65
AXLE BOLT HUS-67609
...
66
WASHER.HARD.BLADE HUS-140296
...
67
WASHER HUS-19131312
...
68
ROLL PIN STD HUS-5142H
...
69
WASHER T HUS-19332616
...
70
SUB= 153762 HUS-139989
...
71
PLATE CONSOLE S HUS-140927
...
74
SCREW HEXWSH H-L HUS-142432
...
75
NUT.7/16 HUS-73800700
...
76
BRACKET TRAN VGTH HUS-140481
...
77
BOLT HUS-74760716
...
78
WASHER HUS-19111212
...
79
BOLT HUS-72110505
...
80
BRACKET TORQUE RH HUS-140484
...
81
SCREW HUS-17490612
...
82
SUB= 154561 HUS-140482
...
83
STRAP TORQUE MID HUS-140479
...
84
SPACER HUS-140490
...
85
SCREW YTV HUS-17541020
...
86
"FAN 7"" HYDRO" HUS-140462
...
87
ADAPTER FAN HUS-140491
...
88
SUB= 161592 HUS-140492
...
89
WASHER HUS-19131312
...
90
KEEPER BELT HUS-140489
...
91
SCREW.HXWSH.3/8 HUS-17490644
...
92
BOLT HUS-74760520
...
93
LINK ASM SHIFT HUS-140502
...
94
XMAS TREE FASTNER HUS-133835
...
95
SCREW SET 5/16 HUS-23200528
...
96
WASHER NICKEL PLT HUS-141103
...
97
BEARING THRUST HUS-126874X
...
98
BRACKET SHIFT HUS-141004
...
99
SCREW LT HUS-17490624
...
100
WASHER COMPRESSIN HUS-126881X
...
101
WASHER HUS-59285
...
102
NUT HEX NYLOCK HUS-73560500
...
103
JAM NUT TI HUS-73350500
...
104
BRACKET IDLER HUS-140480
...
105
SCREW CRT HUS-17580408
...
106
SUB= 142922 HUS-142576
...
107
SUB= 142918 HUS-142577
...
108
SUB= 142917 HUS-142578
...
109
SPRING BRAKE HUS-140929
...
110
NUT HUS-73350600
...
111
HINGE SCREW HUS-88652
...
112
NUT GTV HUS-73680700
...
xx
SUB= 150073 HUS-140343
