Husqvarna TS20H50B (1994) Tractor

Model: TS20H50B (1994)

Back To Assemblies

Save Part Not Listed?
product name

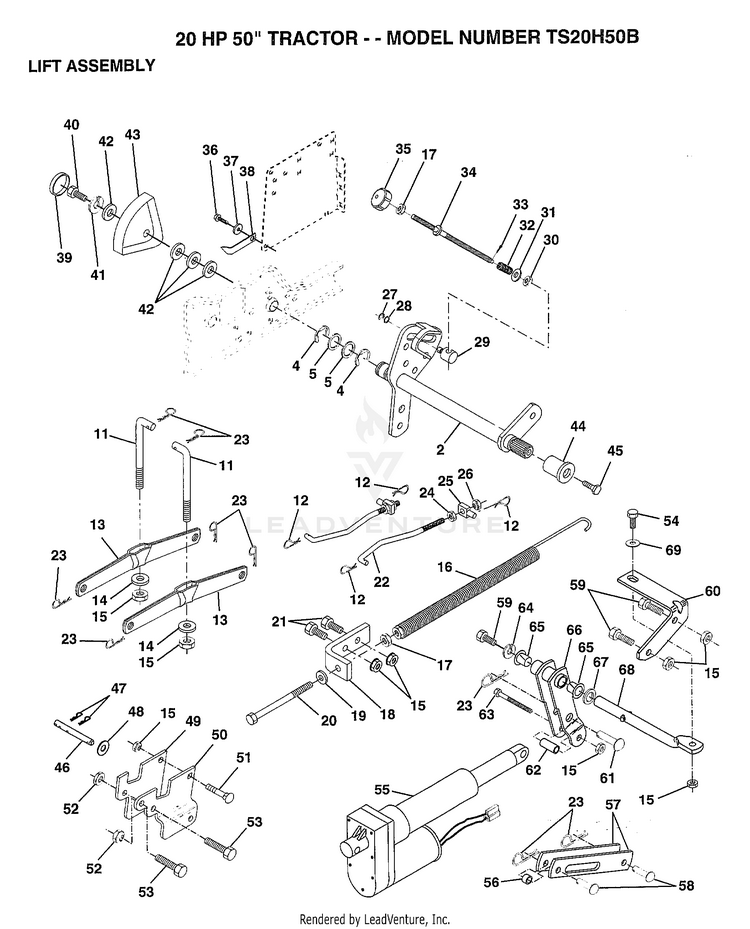

LIFT/20 HP 50"

...
...
2
SUB= 145542 HUS-137295
...
4
E-RING HUS-12000022
...
5
WASHER HUS-19292016
...
11
SUB= 146704 HUS-142369
...
12
RETAINER.SPRING HUS-3146R
...
13
SUB= 139868 HUS-139867
...
14
BEARING PVT LH HUS-140302
...
15
NUT HUS-73800600
...
16
SUB= 918674A247 HUS-674A247
...
17
NUT HUS-73350600
...
18
BRACKET SPRING AS HUS-143363
...
19
WASHER HUS-19131316
...
20
BOLT-ADJ SPRING T HUS-5328J
...
21
BOLT HUS-74760616
...
22
LINK.FRONT HUS-127218
...
23
SUB= 85902 HUS-4939M
...
24
NUT HUS-73350800
...
25
TRUNION HUS-130171
...
26
NUT.LK.W/WSH.1/2. HUS-73800800
...
27
KLIP RING HUS-12000037
...
28
WASHER HUS-19151216
...
29
TRUNION LT HUS-110810X
...
30
NUT T HUS-110807X
...
31
WASHER HUS-19131016
...
32
SPRING.COMP.INF.H HUS-137150
...
33
SUB= 3145 HUS-76020308
...
34
ROD.ADJ.LIFT HUS-137167
...
35
KNOB INF 3/8-16 HUS-138057
...
36
SCREW HUS-17490612
...
37
WASHER T HUS-120529X
...
38
POINTER HGT IND HUS-123933X505
...
39
"PLUG,HOLE" HUS-123935X
...
40
BOLT HUS-74760520
...
41
LOCKWASHER HUS-10040500
...
42
WASHER HUS-19112410
...
43
HEIGHT INDICATOR HUS-123934X
...
44
LIFT HUB-LEVE T HUS-105624X
...
45
Bolt, Hex 3/8-16 x 1-3/8 HUS-74760622
...
46
PIN.ACTUATOR HUS-140877
...
47
SPRING M HUS-4940M
...
48
WASHER HUS-19171216
...
49
BRACKET.ACTUAT.LH HUS-140876
...
50
BRACKET.ACTUAT.RH HUS-140875
...
51
BOLT.3/8-14X1.25 HUS-72140610
...
52
NUT.7/16 HUS-73800700
...
53
BOLT.HX.HD.7/16 HUS-74780720
...
54
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
55
Electric, Actuator HUS-124371X
...
56
SPACER.500X384X23 HUS-138909
...
57
LINK.LIFT.ELECT. HUS-138905
...
58
PIN.PIVOT HUS-138947
...
59
SUB= 74760616 HUS-74760614
...
60
BRACKET.ROD.PIVOT HUS-138912
...
61
PIN.PIVOT HUS-138948
...
62
TUBE GT HUS-5950J
...
63
Bolt Fin Hex 3/8-16 x 2-1/4 Gr. 5 HUS-74520636
...
64
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
65
NYLINER.ROD.PIVOT HUS-139276
...
66
ARM.ASM.PIVOT HUS-138908
...
67
WASHER HUS-19211621
...
68
ROD.SUPPORT.PIVOT HUS-138914
...
69
WASHER HUS-19131416
