Husqvarna TS20H50B (1994) Tractor

Model: TS20H50B (1994)

Back To Assemblies

Save Part Not Listed?
product name

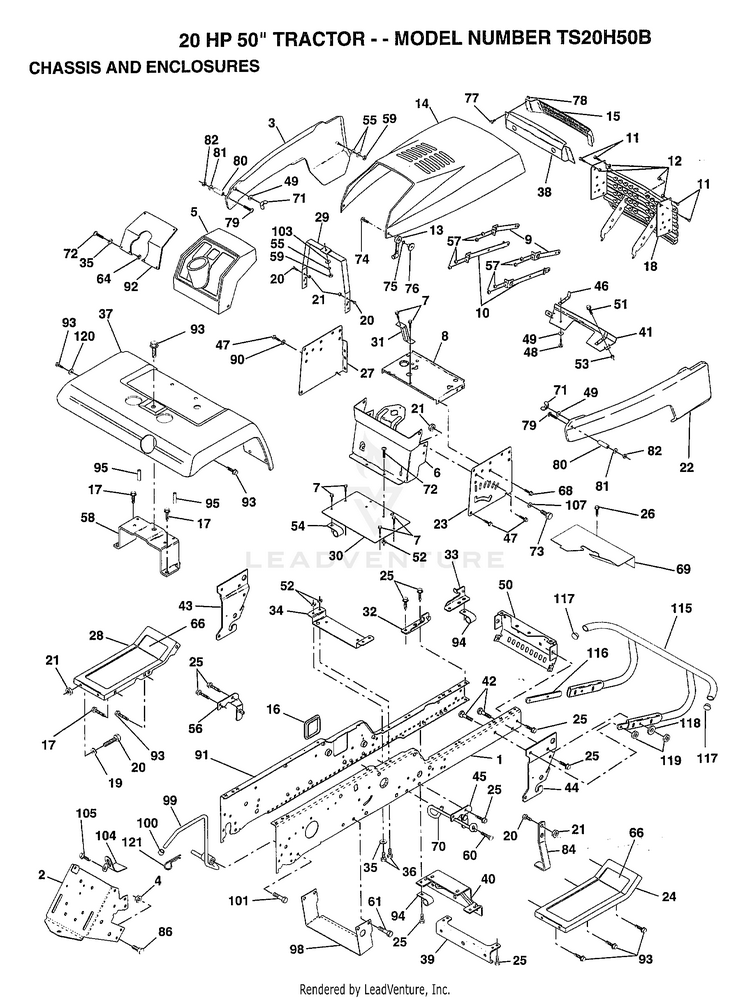

CHASSIS AND ENCLOSURES/20 HP 50"

...
...
1
SUB= 150383 HUS-144737
...
2
DRAWBAR GT HUS-140506
...
3
SUB= 150302X505 HUS-140678X505
...
4
NUT.7/16 HUS-73800700
...
5
DASHBOARD BLACK HUS-140398
...
6
DASH ASM LOWER HUS-140638
...
7
SCREW HUS-17720408
...
8
SUPPORT BATRY VGT HUS-140229
...
9
SUB= 155013 HUS-104618X
...
10
SUB= 155013 HUS-106784X
...
11
SUB= 7605J HUS-123481X
...
12
NUT HUS-73800400
...
13
HOOD LATCH T HUS-109808X
...
14
SUB= 150301X505 HUS-132635X505
...
15
LENS LT HUS-106395X
...
16
COVER ACCESS HUS-121794X
...
17
SCREW HUS-17490612
...
18
SUB= 140037X431 HUS-140037
...
19
WASHER HUS-19131312
...
20
BOLT HUS-74760616
...
21
NUT HUS-73800600
...
22
PANEL SIDE RH HUS-140679X505
...
23
SUB= 532121045 HUS-121045X
...
24
SUB= 145243X505 HUS-105464X505
...
25
SCREW HUS-17490612
...
26
SCREW HUS-17490512
...
27
SUB= 532121046 HUS-121046X
...
28
SUB= 145244X505 HUS-105465X505
...
29
SUPPORT ASS'Y HUS-124130X
...
30
SADDLE SLKSCRNED HUS-140493
...
31
BRACE.SUPT.STRG HUS-137556
...
32
BRACKET ASM FRAME HUS-141315
...
33
BRACKET ASM FRAME HUS-141314
...
34
BRACKET.ENG.SUPT. HUS-142131
...
35
WASHER HUS-19111116
...
36
BOLT HUS-74780512
...
37
FENDER.PNT. HUS-140002X505
...
38
SUB= 147717 HUS-124392X417
...
39
BRACKET.AXLE.FRT. HUS-136961
...
40
SUB= 156111 HUS-142132
...
41
GRILL STRAP HUS-105419X505
...
42
BOLT.3/8-14X1.25 HUS-72140610
...
43
BRACKET.SUS.FT.LH HUS-136939
...
44
BRACKET.SUS.FT.RH HUS-136940
...
45
SUB= 155887 HUS-138460
...
46
SUB= 532132644 HUS-132644
...
47
SCREW LT HUS-17490608
...
48
SCREW HUS-17490512
...
49
WASHER HUS-19131210
...
50
BRACKET.CHASSIS. HUS-136575
...
51
SCREW CRT HUS-17580408
...
52
NUT HUS-73800500
...
53
PAL NUT LT HUS-108067X
...
54
"CLIP,INSULATOR" HUS-126470X
...
55
WASHER PM HUS-19091216
...
56
SUB= 155886 HUS-138461
...
57
NUT HUS-73510400
...
58
BRKT.ASM.FENDER HUS-137113
...
59
SUB= 50675 HUS-73220400
...
60
SCREW HUS-17490620
...
61
SCREW HUS-17490612
...
62
RETAINER M HUS-4497H
...
64
NUT HUS-73510500
...
66
FOOTREST PAD HUS-133671
...
68
SCREW LT HUS-17490508
...
69
SHIELD.HEAT.MUF HUS-140022
...
70
GUIDE.BELT.MID.SP HUS-137159
...
71
SUB= 146525 HUS-123198X
...
72
SCREW HUS-74180512
...
73
BOLT HUS-74780616
...
74
SCREW HUS-74191008
...
75
LOCKWASHER HUS-10071000
...
76
WELDNUT HUS-2029J
...
77
SCREW LT HUS-17211010
...
78
"""J"" FASTENER LT" HUS-104755X
...
79
SCREW HUS-74981020
...
80
SPACER LT HUS-7206J
...
81
WASHER HUS-19070818
...
82
NUT HUS-73731000
...
84
STOP.OVER.CENTER HUS-142992
...
86
BOLT HUS-74760716
...
90
LOCKWASHER HUS-11050600
...
91
SUB= 151630 HUS-144735
...
92
PLATE YP SLKSCR HUS-140130X012
...
93
SCREW LT HUS-17490608
...
94
CLIP GTV HUS-100207K
...
95
NUT-PUSH YT HUS-105531X
...
98
BRACKET SKID CHAS HUS-140503
...
99
ROD BYPASS HUS-140871
...
100
CAP HUS-124236X
...
101
SCREW LT HUS-17490628
...
103
LOCKWASHER HUS-10040400
...
104
LOCK BYPASS BRKT HUS-142273
...
105
SCREW LT HUS-17490508
...
107
WASHER HUS-19131614
...
115
BUMPER.ASM.W/PY HUS-141460
...
116
BRACKET.EXT.BUMP. HUS-141461
...
117
PLUG.PLASTIC HUS-143679
...
118
WASHER HUS-19131316
...
119
SUB= 73690600 HUS-73680600
...
120
WASHER HYT HUS-19131616
