Husqvarna TS20H50B (1994) Tractor

Model: TS20H50B (1994)

Back To Assemblies

Save Part Not Listed?
product name

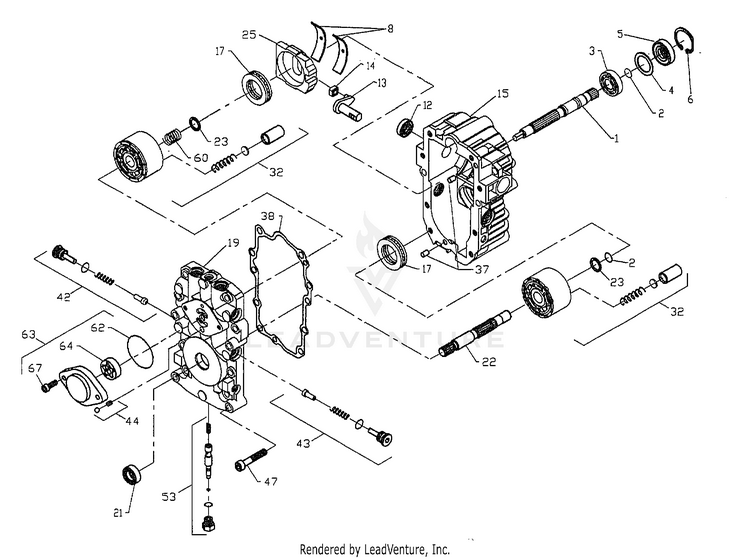

TRANSAXLE PUMP/20 HP 50"

...
...
1
SHAFT.PUMP.50158 HUS-144569
...
2
RETAINIANG RING-(2003016) HUS-122716X
...
3
BALL BEARING HUS-122745X
...
4
SPACER HUS-122715X
...
5
SEAL LIP HUS-122700X
...
6
RING.RET.2003052 HUS-122699X
...
8
CRADLE BEARING (2003023) HUS-122767X
...
12
SEAL.9008000-0126 HUS-122717X
...
13
TRUNION ARM (2003005) HUS-122748X
...
14
GUIDE.2000015.HYD HUS-122749X
...
15
KIT.HSG.2513035. HUS-144571
...
17
SUB= 142936 HUS-122770X
...
19
KIT.CENT.2513006 HUS-144572
...
21
LIP SEAL-9008000-0127 HUS-122722X
...
22
SHAFT.MOT.2003034 HUS-144573
...
23
SUB= 142978 HUS-144574
...
25
"SWASHPLATE,VARIAB" HUS-127148X
...
32
SUB= 142938 HUS-144577
...
37
PIN HUS-122786X
...
38
GASKET.20030600 HUS-122718X
...
42
KIT.VALVE.2510050 HUS-144578
...
43
KIT.VALVE.2510050 HUS-144578
...
44
KIT.RELI.2510011. HUS-144579
...
47
SCREW9007314-0808 HUS-122752X
...
53
"KIT,BYPASS VALVE" HUS-127153X
...
60
SUB= 142977 HUS-144580
...
62
0RING.90041011340 HUS-144581
...
63
KIT.CHARG.2513027 HUS-144582
...
64
GEROTOR.J1041008 HUS-144583
...
67
SCREW.CAP.50095. HUS-144584
...
xx
PUMP.BD-10L-118 HUS-144576
