Husqvarna TS2051D (1995) Tractor

Model: TS2051D (1995)

Back To Assemblies

Save Part Not Listed?
product name

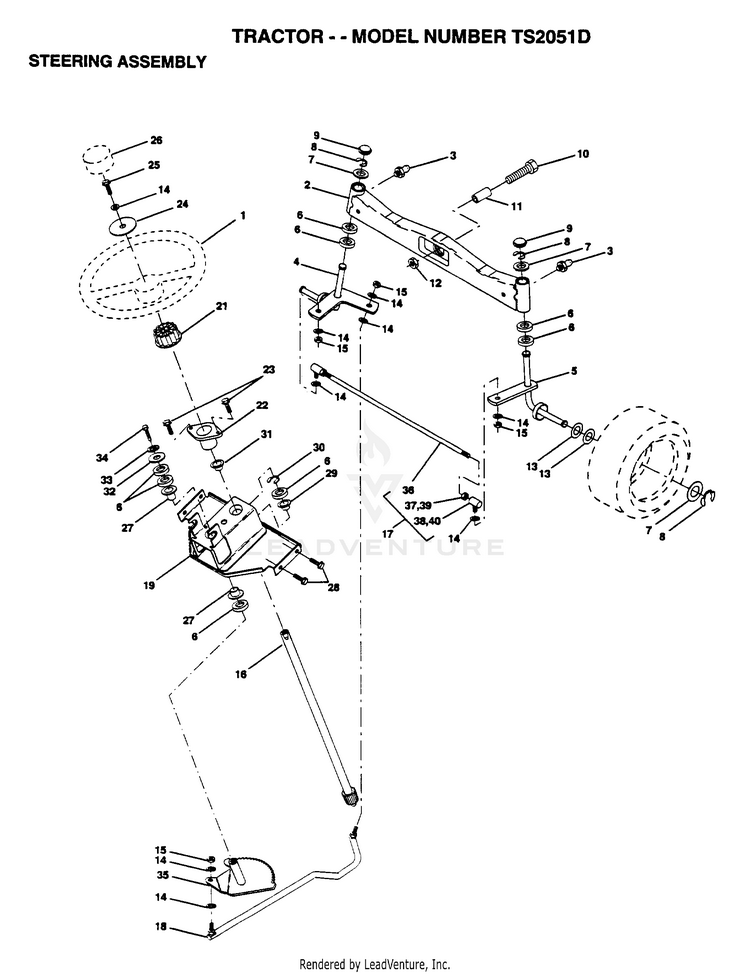

STEERING

...
...
1
SUB= 150547 HUS-133741
...
2
SUB= 532137094 HUS-137094
...
3
ZERK M HUS-6855M
...
4
SPINDLE.ASM.LH HUS-136960
...
5
SUB= 918136959 HUS-136959
...
6
WASHER .T HUS-6266H
...
7
WASHER HUS-121748X
...
8
RING HUS-12000029
...
9
CAP HUS-121232X
...
10
BOLT HUS-74781044
...
11
SPACER BEARING HUS-136518
...
12
"NUT-LOC,FLANGE LT" HUS-73901000
...
13
WASHER HUS-121749X
...
14
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
15
SUB= 7810H HUS-73610600
...
16
SHAFT.STEER.VGT HUS-145103
...
17
ROD.ASM.TIE.BALL HUS-137347
...
18
DRAGLINK.BALL.JOI HUS-137155
...
19
SUB= 144673 HUS-146611
...
21
ADAPTER LT HUS-100711L
...
22
SUB= 155108 HUS-1554J
...
23
SUB= 98000165 HUS-17431008
...
24
WASHER T HUS-19133808
...
25
BOLT HUS-74780616
...
26
ST WHL INSERT CAP HUS-133742
...
27
COL. SRTG. BEAR. HUS-3366R
...
28
SCREW HUS-17490612
...
29
"FLANGE GT, BEAR." HUS-104239X
...
30
KLIP RING HUS-12000034
...
31
BUSHING.NYLINER. HUS-138136
...
32
WASHER HUS-19111610
...
33
LOCKWASHER HUS-10040500
...
34
BOLT HUS-74760512
...
35
GEAR.ASM.SECTOR. HUS-138059
...
36
SUB= 137347 HUS-137156
...
37
NUT HUS-73360600
...
38
JOINT.RH HUS-109850X
...
39
NUT HUS-73700600
...
40
JOINT.LH HUS-109851X
