Husqvarna TS2051B (1993) Tractor

Model: TS2051B (1993)

Back To Assemblies

Save Part Not Listed?
product name

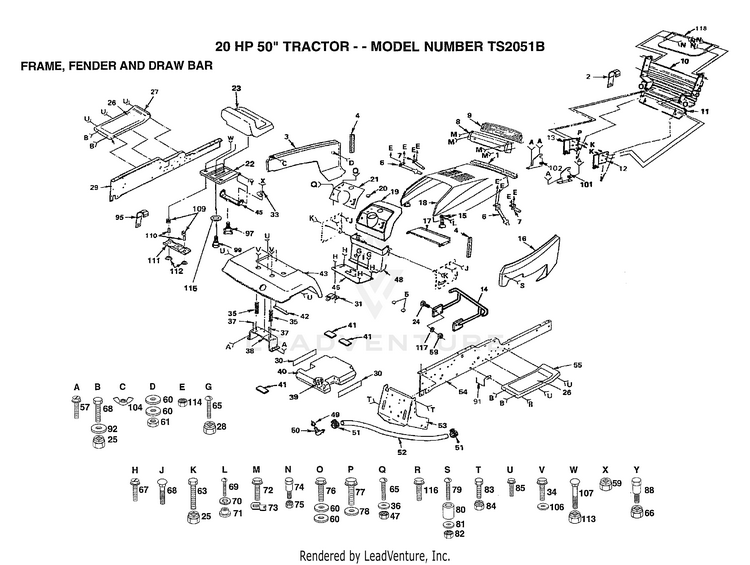

20HP 50"/FRAME, FENDER, AND DRAW BAR

...
...
1
FOAM STRIP T HUS-109458X
...
2
SUB= 532128146 HUS-128146
...
3
SUB= 150302X505 HUS-140678X505
...
4
FOAM STRIP T HUS-106088X
...
5
CAP SPRING HUS-124238X
...
6
SUB= 155013 HUS-106784X
...
7
SUB= 155013 HUS-104618X
...
8
SUB= 147717 HUS-124392X417
...
9
LENS LT HUS-106395X
...
10
GRILL ASSY HUS-122100X
...
11
GRILL STRAP HUS-105419X505
...
12
SUPPORT RH YTH HUS-110854X
...
13
SUPPORT LH YTH HUS-110855X
...
14
BUMPER ASSY. HUS-135258
...
15
HOOD LATCH T HUS-109808X
...
16
PANEL SIDE RH HUS-140679X505
...
17
SUPPORT BATRY VGT HUS-140229
...
18
SUB= 150301X505 HUS-132635X505
...
19
DASHBOARD BLACK HUS-140398
...
20
PLUG-DASH T HUS-8022J
...
21
PLATE.DASH HUS-123952X018
...
22
SUB= 155925 HUS-140552
...
23
SUB= 140121 HUS-129598
...
24
BOLT HUS-74780816
...
25
NUT HUS-73800600
...
26
FOOTREST PAD HUS-133671
...
27
SUB= 145244X505 HUS-105465X505
...
28
NUT HUS-73800500
...
29
SUB= 151630 HUS-140504
...
30
PAD IDLER TI HUS-109227X
...
31
"CLIP,INSULATOR" HUS-126470X
...
33
CLIP T HUS-2751R
...
34
SCREW LT HUS-17490508
...
35
SPRING COMPRESSIO HUS-124181X
...
36
WASHER HUS-19111116
...
37
NUT-PUSH YT HUS-105531X
...
38
BRKT.ASM.FENDER HUS-137113
...
39
SUB= 158990 HUS-123549X
...
40
SUB= 151346 HUS-141069
...
41
PAD-SPACER LT HUS-106082X
...
42
STRAP ASM FENDER HUS-140675
...
43
FENDER HUS-121642X505
...
45
SUB= 140551 HUS-126656X
...
46
SADDLE.6SP.GT HUS-106042X018
...
47
NUT HUS-73510500
...
48
DASH ASSEMBLY HUS-104608X
...
49
BUSHING OUTLET T HUS-3645J
...
50
STEM.TANK.FUEL HUS-139277
...
51
HOSE CLAMP HUS-123487X
...
52
SUB= 8542R HUS-7834R
...
53
DRAWBAR GT HUS-140506
...
54
SUB= 150383 HUS-140505
...
55
SUB= 145243X505 HUS-105464X505
...
57
SCREW HUS-17490612
...
59
SUB= 73690600 HUS-73680600
...
60
WASHER PM HUS-19091216
...
61
SUB= 50675 HUS-73220400
...
63
BOLT HUS-74760616
...
65
SCREW HUS-74180512
...
66
NUT HUS-73800500
...
67
SCREW HUS-17720408
...
68
SCREW LT HUS-17490508
...
69
SCREW HUS-74191008
...
70
LOCKWASHER HUS-10071000
...
71
WELDNUT HUS-2029J
...
72
SCREW LT HUS-17211010
...
73
"""J"" FASTENER LT" HUS-104755X
...
74
SUB= 7605J HUS-123481X
...
75
NUT HUS-73800400
...
76
SCREW HUS-17190412
...
77
SCREW HUS-17490512
...
78
WASHER HUS-19091016
...
79
SCREW HUS-74981020
...
80
SPACER LT HUS-7206J
...
81
WASHER HUS-19070818
...
82
NUT HUS-73731000
...
83
BOLT HUS-74760716
...
84
NUT.7/16 HUS-73800700
...
85
SCREW LT HUS-17490608
...
88
BOLT.SHLD.5/16-18 HUS-139888
...
91
BELT RETAINER GT HUS-105500X
...
92
WASHER HUS-19131312
...
95
CLIP T HUS-4171R
...
97
"KNOB 1/2"" YT" HUS-120068X
...
99
"BOLT,SHOULDER" HUS-127018X
...
101
SUPPORT RH YTH HUS-110853X
...
102
SUPPORT LH YTH HUS-110852X
...
104
SUB= 146525 HUS-123198X
...
106
WASHER HUS-19131614
...
107
SUB= 872050411 HUS-72050411
...
109
SPRING COMPRESSED HUS-123740X
...
110
SPACER SPLIT HUS-121249X
...
111
BRKT SWITCH HUS-121246X
...
112
BUSHING HUS-121248X
...
113
SUB= 73900400 HUS-123976X
...
114
NUT HUS-73510400
...
115
WASHER HUS-19171912
...
116
SCREW GTV HUS-17490616
...
117
WASHER HUS-19131316
...
118
"SHIELD,HEAT" HUS-127637
