Husqvarna TS2051B (1993) Tractor

Model: TS2051B (1993)

Back To Assemblies

Save Part Not Listed?
product name

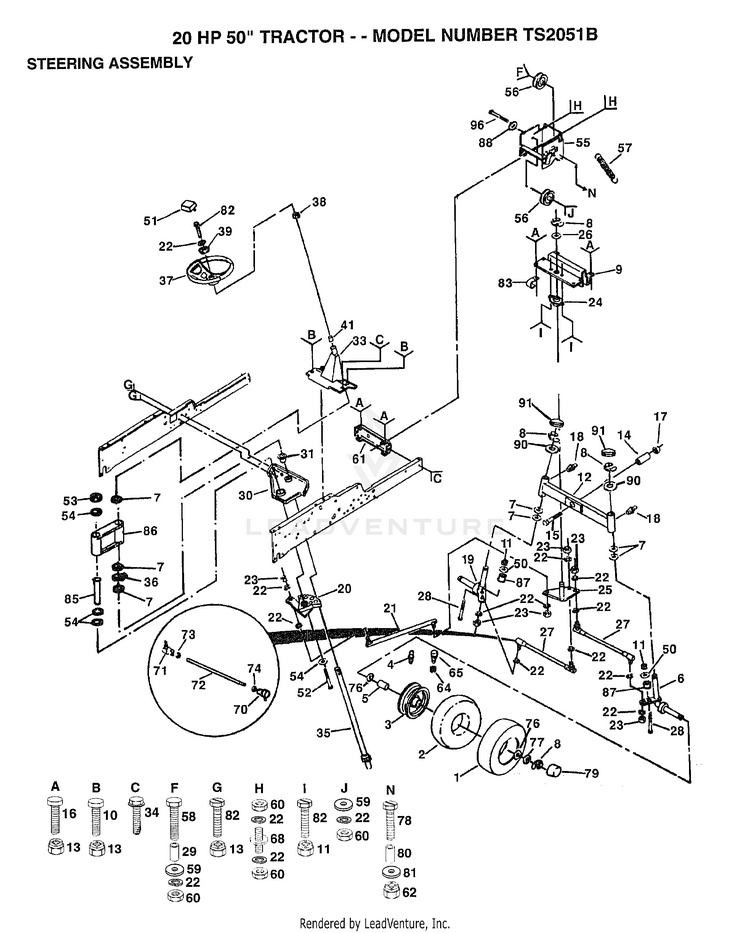

20HP 50"/STEERING ASSEMBLY

...
...
1
SUB= 122075X HUS-106230X
...
2
TUBE.16X6.5/7.5-8 HUS-8134H
...
3
SUB= 106228X417 HUS-106228X361
...
4
FITTING LT HUS-278H
...
5
"FLANGE, BEARING" HUS-9040H
...
6
SPINDLE.ASM.RH HUS-139265
...
7
WASHER .T HUS-6266H
...
8
RING HUS-12000029
...
9
AXLE BRACKET T HUS-5284J
...
11
SUB= 73690600 HUS-73680600
...
12
SUB= 532137094 HUS-137094
...
13
NUT HUS-73800600
...
14
SPACER BEARING HUS-136518
...
15
BOLT HUS-74781044
...
16
BOLT HUS-74760616
...
17
LOCKNUT M HUS-73681000
...
18
ZERK M HUS-6855M
...
19
SPINDLE.ASM.LH HUS-139266
...
20
SECTOR T HUS-120424X
...
21
LINK.DRAG.T HUS-110497X
...
22
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
23
SUB= 7810H HUS-73610600
...
24
BUSHING BELLCRANK HUS-140015
...
25
"T, BELLCRANK" HUS-108137X
...
26
WASHER HUS-19292016
...
27
TIE ROD T HUS-109849X
...
28
BOLT HUS-74520628
...
29
BUSHING LT HUS-100644K
...
30
SUB= 144668 HUS-102439X
...
31
"FLANGE GT, BEAR." HUS-104239X
...
33
SUPPORT ASSY T HUS-101274N
...
34
SCREW HUS-17490612
...
35
SHAFT STEERING GT HUS-104591X
...
36
KLIP RING HUS-12000034
...
37
SUB= 150547 HUS-133741
...
38
ADAPTER LT HUS-100711L
...
39
WASHER T HUS-19133808
...
40
SLEEV-STEERIN T HUS-106014X
...
41
"T, BEARING" HUS-9038R
...
50
WASHER T HUS-19131212
...
51
ST WHL INSERT CAP HUS-133742
...
52
BOLT T HUS-74780880
...
53
NUT LTV HUS-73680800
...
54
WASHER GT HUS-19172610
...
55
IDLER BRKT T HUS-120542X
...
56
IDLER-INSIDE T HUS-677A451
...
57
SPRING HUS-7190J
...
58
BOLT HUS-74760636
...
59
WASHER HUS-19131413
...
60
NUT.HEX.3/8-16UNC HUS-73220600
...
61
FRAME BRACKET GT HUS-5213J
...
62
SUB= 73690500 HUS-73680500
...
64
VALVE STEM LT HUS-65139
...
65
VALVE CAP HUS-59192
...
68
SUB= 677A928 HUS-106615X
...
70
JOINT.RH HUS-109850X
...
71
JOINT.LH HUS-109851X
...
72
SUB= 121159X HUS-7919J
...
73
NUT HUS-73700600
...
74
NUT HUS-73360600
...
76
WASHER HUS-121749X
...
77
WASHER HUS-121748X
...
78
BOLT GT HUS-74930516
...
79
HUB CAP HUS-104757X
...
80
SPLIT SPACER YTV HUS-102933X
...
81
WASHER HUS-19111416
...
82
BOLT HUS-74780616
...
83
CLIP GTV HUS-100207K
...
85
TUBE T HUS-120199X
...
86
COLLAR HUS-121177X
...
87
SPACER LT HUS-101496X
...
88
WASHER T HUS-19132007
...
90
WASHER HUS-121748X
...
91
CAP HUS-121232X
...
96
SUB= 74930632 HUS-74760632
