Husqvarna TS2051A (1993) Tractor

Model: TS2051A (1993)

Back To Assemblies

Save Part Not Listed?
product name

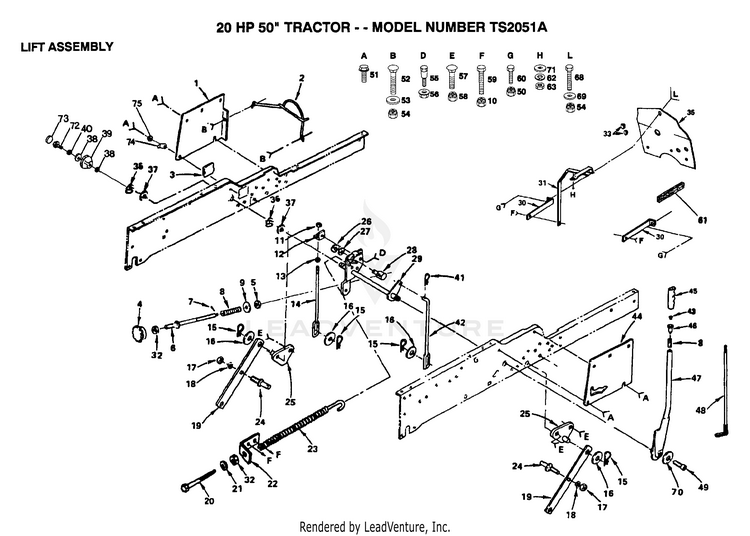

LIFT

...
...
1
SUB= 532121046 HUS-121046X
...
2
"GUARD, BELT" HUS-126651X
...
3
COVER ACCESS HUS-121794X
...
4
KNOB INF 3/8-16 HUS-138057
...
5
NUT T HUS-110807X
...
6
ROD ADJ. T HUS-110811X
...
7
SUB= 3145 HUS-76020308
...
8
SPRING T HUS-2876H
...
9
WASHER HUS-19131016
...
10
SUB= 73690600 HUS-73680600
...
11
NUT HUS-73800600
...
12
BRACKET T HUS-7594J
...
13
NUT.HEX.3/8-16UNC HUS-73220600
...
14
LINK-LIFT MOW T HUS-7596J
...
15
SPRING H HUS-9135R
...
16
WASHER HUS-19171616
...
17
NUT HUS-73220800
...
18
LOCKWASHER HUS-10040800
...
19
SUSPENSION ARM GT HUS-105429X
...
20
BOLT-ADJ SPRING T HUS-5328J
...
21
WASHER HUS-19131316
...
22
SUB= 143363 HUS-5329J
...
23
SUB= 918674A247 HUS-674A247
...
21
PIVOT STUD GT HUS-105413X
...
25
SUSP BRACKET T HUS-105501X
...
26
KLIP RING HUS-12000037
...
27
WASHER HUS-19151216
...
28
TRUNION LT HUS-110810X
...
29
SHAFT ASS'Y LIFT HUS-124217X
...
30
BRACKET T HUS-110903X
...
31
SUB= 532128141 HUS-128141
...
32
NUT HUS-73350600
...
33
SUB= 9151R HUS-110436X
...
35
"SHIELD HEAT, BASE" HUS-122085X
...
36
E-RING HUS-12000022
...
37
WASHER HUS-19292016
...
38
WASHER HUS-19112410
...
39
HEIGHT INDICATOR HUS-123934X
...
40
LOCKWASHER HUS-10040500
...
41
SUB= 85902 HUS-4939M
...
42
LIFT LINK RH T HUS-105503X
...
43
SUB= 125925X HUS-124526X
...
44
SUB= 532121045 HUS-121045X
...
45
GRIP HUS-109413X
...
46
SUB= 125925X HUS-122364X
...
47
SUB= 123096X HUS-121002X363
...
48
LEVER ROD LT HUS-121006X
...
49
"BOLT,HEX" HUS-74780624
...
50
SUB= 73690400 HUS-73680400
...
51
SCREW LT HUS-17490608
...
52
BOLT HUS-72140508
...
53
WASHER HUS-19111610
...
54
SUB= 73690500 HUS-73680500
...
55
SHOULDER BOLT T HUS-7901J
...
56
NUT T HUS-73900400
...
57
BOLT HUS-72140606
...
58
LOCKNUT HUS-73930600
...
59
BOLT HUS-74760616
...
60
BOLT HUS-74780408
...
61
FOAM STRIP T HUS-109458X
...
62
SUB= 10040400 HUS-10090400
...
63
SUB= 50675 HUS-73220400
...
68
BOLT HUS-74760512
...
69
WASHER M HUS-19111216
...
70
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
71
WASHER PM HUS-19091216
...
72
SUB= 77394 HUS-74780516
...
73
"PLUG,HOLE" HUS-123935X
...
74
POINTER HGT IND HUS-123933X505
...
75
WASHER T HUS-120529X
