Husqvarna TS2051A (1993) Tractor

Model: TS2051A (1993)

Back To Assemblies

Save Part Not Listed?
product name

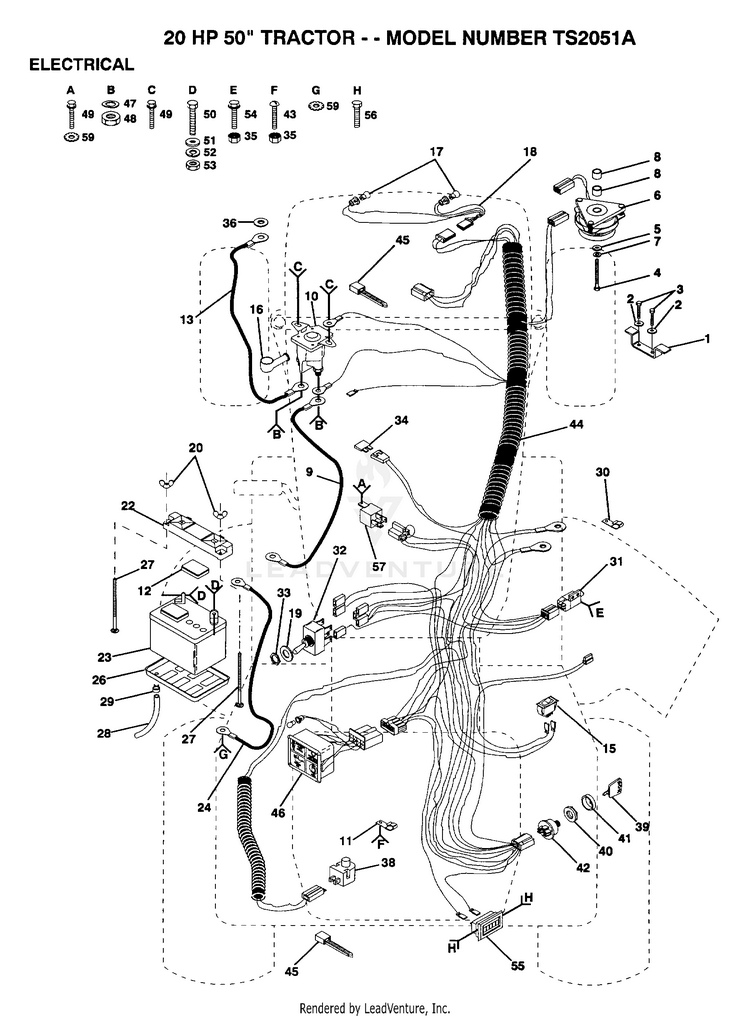

ELECTRICAL

...
...
1
STOP T HUS-110882X
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
3
BOLT HUS-74780612
...
4
SUB= 871130724 HUS-71130724
...
5
WASHER HUS-126197X
...
6
SUB= 133501 HUS-127170X
...
7
LOCKWASHER HUS-10040700
...
8
SPACER-CLUTCH HUS-128224
...
9
"CABLE T, BATTERY" HUS-4799J
...
10
SUB= 146154 HUS-138406
...
11
CLIP T HUS-4171R
...
12
"CAP,BATTERY " HUS-121264X
...
13
"CABLE,STARTER T" HUS-129458
...
15
SWITCH LT HUS-110712X
...
16
SUB= 154336 HUS-131563
...
17
HEADLAMP BULB HUS-4152J
...
18
"HARNESS,LIGHT SOC" HUS-136850
...
19
WASHER HUS-19171216
...
20
SUB= 146525 HUS-123198X
...
22
SUB= 150109 HUS-102476X
...
23
SUB= 123899X HUS-121537X
...
24
SUB= 120606X HUS-121080X
...
26
"TRAY T, BATTERY" HUS-7603J
...
27
BOLT HUS-72240460
...
28
"DRAIN TU T, BATT" HUS-7697J
...
29
HOSE CLAMP T HUS-109596X
...
30
CLIP GTV HUS-100207K
...
31
SWITCH INTERLOCKT HUS-109553X
...
32
SUB= 532126018 HUS-126018X
...
33
HEX NUT T HUS-4022J
...
34
FUSE HYT HUS-108824X
...
35
"NUT,KEPS" HUS-73951000
...
36
LOCKWASHER HUS-11150400
...
38
SWITCH SEAT HUS-121305X
...
39
KEY HUS-122147X
...
40
NUT IGNITION HUS-124211X
...
41
SUB= 141226 HUS-123620X
...
42
SUB= STD365402 HUS-4406R
...
43
SUB= 71031008 HUS-74641008
...
44
HARNESS.IGN HUS-139012
...
45
WIRE TIE HUS-7192 J
...
46
LIGHT.PKG.ASM. HUS-138101
...
47
SUB= 10040400 HUS-10090400
...
48
NUT HUS-73350400
...
49
SCREW HUS-17720408
...
50
BOLT LT HUS-74760412
...
51
WASHER HUS-19091016
...
52
LOCKWASHER HUS-10040400
...
53
SUB= 50675 HUS-73220400
...
54
SCREW HUS-71031008
...
55
HOUR METER T HUS-110940X
...
56
SCREW HUS-17011008
...
57
RELAY ASSY T HUS-109748X
...
59
LOCKWASHER HUS-11050600
