Husqvarna TS2050B (1996) Tractor

Model: TS2050B (1996)

Back To Assemblies

Save Part Not Listed?
product name

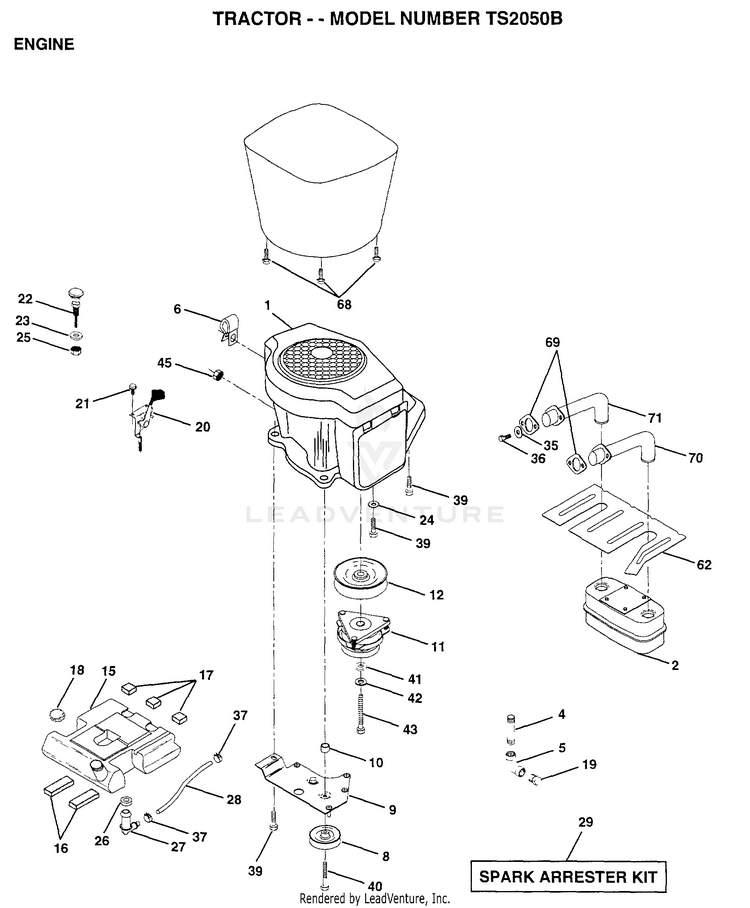

ENGINE

...
...
1
ENGINE, ONAN HUS-P248V
...
2
MUFFLER ASM-ONAN HUS-152851
...
4
SUB= 13280328 HUS-13090328
...
5
ELBOW HUS-13200300
...
6
CLAMP.TUBE.DBL.EN HUS-138129
...
8
SUB= 139123 HUS-121361X
...
9
SUB= 150828 HUS-145109
...
10
BUSHING. HUS-105432X
...
11
SUB= 142600 HUS-137140
...
12
PULLEY.ENGINE.VGT HUS-136907
...
15
TANK FUEL REAR HUS-151346
...
16
PAD IDLER TI HUS-109227X
...
17
PAD-SPACER LT HUS-106082X
...
18
CAP ASM FUEL HUS-140527
...
19
PLUG T HUS-13290300
...
20
SUB= 532132748 HUS-132747
...
21
SCREW LT HUS-17720410
...
22
SUB= 132781 HUS-132782
...
23
WASHER HUS-19131316
...
24
LOCKWASHER HUS-11050600
...
25
"NUT,KEPS 3/8-24IM" HUS-73920600
...
26
BUSHING OUTLET T HUS-3645J
...
27
STEM.TANK.FUEL HUS-139277
...
28
SUB= 8542R HUS-7834R
...
29
SPARK ARREST KIT HUS-132920
...
35
LOCKWASHER HUS-10040500
...
36
SCREW HUS-74570512
...
37
HOSE CLAMP HUS-123487X
...
39
SCREW LT HUS-17490624
...
40
SCREW.3/8-16X3.25 HUS-17490652
...
41
WASHER HUS-126197X
...
42
LOCKWASHER HUS-10040700
...
43
BOLT.7/16-20X4.25 HUS-150280
...
45
NUT FLANGE M8-125 HUS-M73030800
...
50
"DUCT-AIR,ONAN,YP" HUS-151574
...
62
"SHIELD-HEAT,ONAN" HUS-153994
...
64
SCREW HUS-17490612
...
65
WASHER HUS-19131614
...
68
"SCREW-TT,10-32 FL" HUS-152927
...
69
GASKET-MUFFLER ) HUS-148428
...
70
"PIPE-EXHAUST,LH" HUS-152849
...
71
"PIPE-EXHAUST,RH" HUS-152850
