Husqvarna TS1846A (1996) Tractor

Model: TS1846A (1996)

Back To Assemblies

Save Part Not Listed?
product name

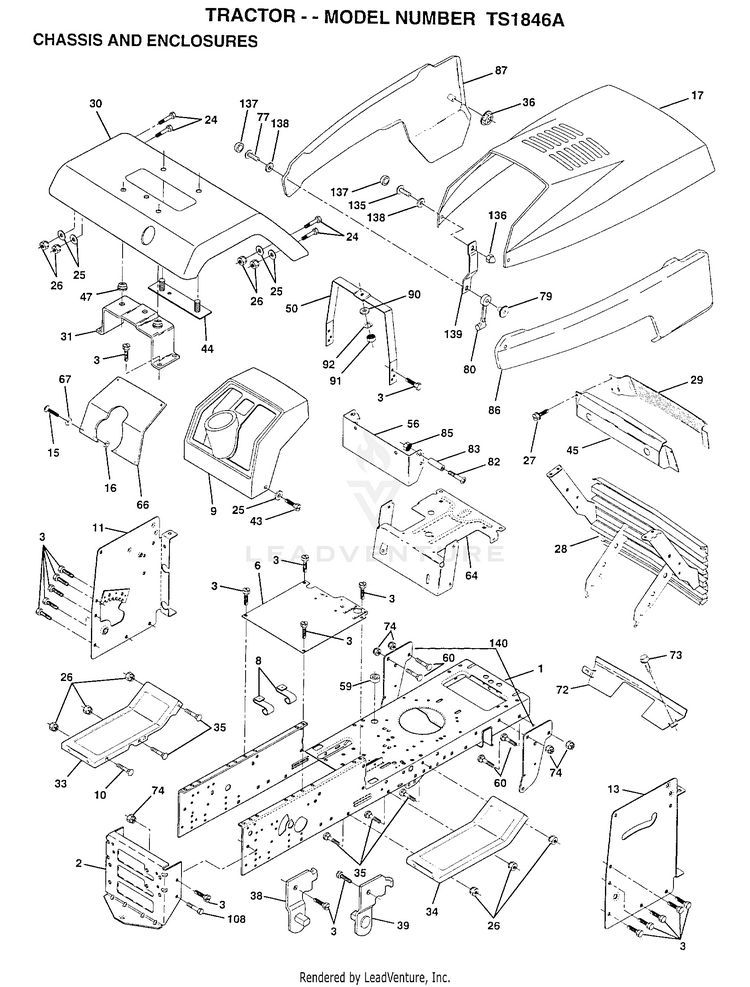

CHASSIS AND ENCLOSURE

...
...
1
CHASSIS WLDMT 11G HUS-151169
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
6
SUB= 145206X431 HUS-145206
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
DASHBOARD BLACK HUS-140398
...
10
SUB= 72110608 HUS-72140608
...
11
PANEL.DASH.LH.PNT HUS-145222
...
13
PANEL.DASH.RH.PNT HUS-145221
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD ASM HUS-150301X505
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
27
SUB= 91817030814 HUS-17030814
...
28
GRILLE ASM PNT HUS-150197
...
29
LENS.BAR.CLEAR HUS-146459
...
30
FENDER.PNT. HUS-140002X505
...
31
BRKT.ASM.FENDER HUS-137113
...
33
FOOTREST.LH.LT/GT HUS-145244X505
...
34
FOOTREST.RH.LT/GT HUS-145243X505
...
35
BOLT HUS-72110606
...
36
PAL NUT LT HUS-108067X
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
43
SCREW HUS-17490612
...
44
STRAP ASM FENDER HUS-140675
...
45
BEZEL.ASM. HUS-147717
...
47
NUT-PUSH YT HUS-105531X
...
50
DASH.SUPT.YP/HUSQ HUS-145205
...
56
EXT DASH LTYT HUS-150271
...
59
SUB= 9151R HUS-110436X
...
60
BOLT HUS-72140606
...
64
DASH.LOWER.LT HUS-150272
...
66
PLATE SLKSCR YP HUS-140299X012
...
67
WASHER HUS-19111116
...
72
STRAP.GRILLE.PNT. HUS-144916X505
...
73
SCREW CRT HUS-17580408
...
74
SUB= 73690600 HUS-73680600
...
77
SCREW HUS-74191008
...
79
WELDNUT HUS-2029J
...
80
HOOD LATCH T HUS-109808X
...
82
SCREW HUS-74981020
...
83
SPACER LT HUS-7206J
...
85
NUT HUS-73731000
...
86
PANEL ASM RH HUS-150303X505
...
87
PANEL ASM SIDE LH HUS-150302X505
...
90
WASHER PM HUS-19091216
...
91
SUB= 50675 HUS-73220400
...
92
LOCKWASHER HUS-10040400
...
108
SUB= 74780612 HUS-74760612
...
135
SCREW.10-24X3/8. HUS-74291006
...
136
ACORN NUT RB HUS-60867
...
137
SNAP CAP LT HUS-110356X
...
138
WASHER LT HUS-110357X
...
139
BKT.SPT.HOOD/PANL HUS-150195
...
140
SUB= 158739 HUS-150556
...
xx
COVER ACCESS HUS-121794X
