Husqvarna TS1846A (1996) Tractor

Model: TS1846A (1996)

Back To Assemblies

Save Part Not Listed?
product name

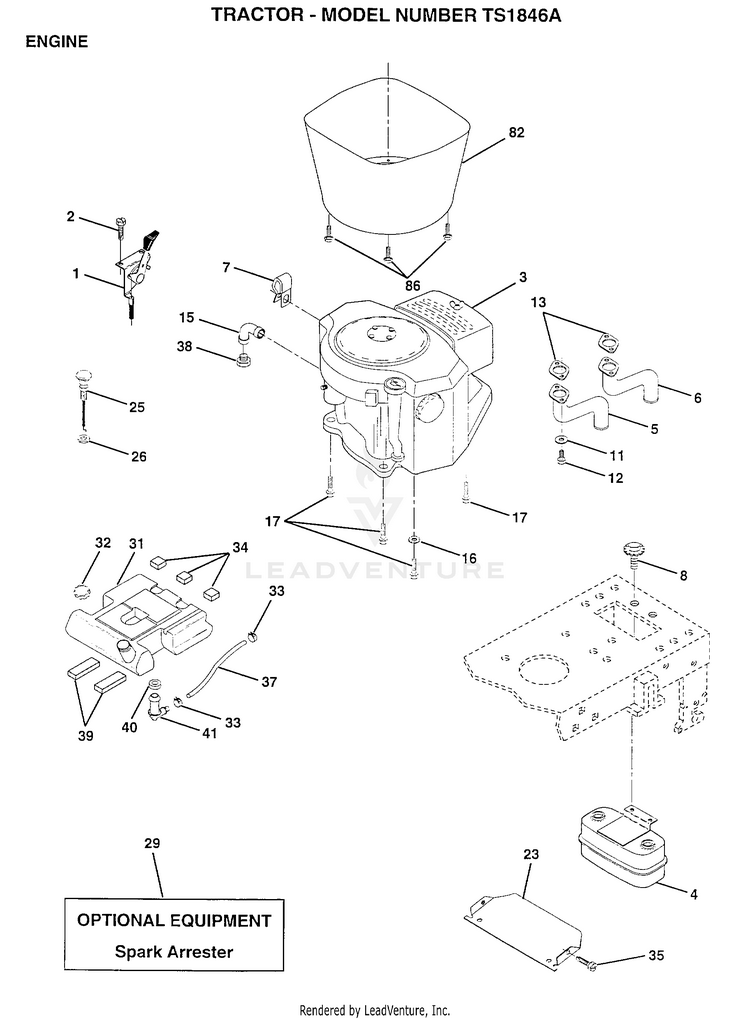

ENGINE

...
...
1
SUB= 532132748 HUS-132747
...
2
SCREW LT HUS-17720410
...
4
MUFFLER.TW.LOTONE HUS-149723
...
5
TUBE MANIFOLD LH HUS-146702
...
6
TUBE MANIFOLD RH HUS-146701
...
7
CLAMP.TUBE.DBL.EN HUS-138129
...
8
BOLT.5/16-18.UNC HUS-150176
...
11
LOCKWASHER HUS-10040500
...
12
SCREW HUS-74570512
...
13
GASKET-MUFFLER ) HUS-148428
...
15
STREET ELBOW LT HUS-13240300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW LT HUS-17490624
...
23
SUB= 157405 HUS-150554
...
25
"CONTROL.CHOKE.51""" HUS-138672
...
26
"NUT,KEPS 3/8-24IM" HUS-73920600
...
29
SUB= 532137180 HUS-137180
...
31
TANK FUEL REAR HUS-151346
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
34
PAD-SPACER LT HUS-106082X
...
35
SCREW HUS-17490512
...
37
FUEL LINE T HUS-8543R
...
38
PLUG T HUS-13290300
...
39
PAD IDLER TI HUS-109227X
...
40
BUSHING OUTLET T HUS-3645J
...
41
STEM.TANK.FUEL HUS-139277
...
82
DUCT, AIR ONAN HUS-151573
...
86
"SCREW-TT,10-32 FL" HUS-152927
