Husqvarna TS1846A (1996) Tractor

Model: TS1846A (1996)

Back To Assemblies

Save Part Not Listed?
product name

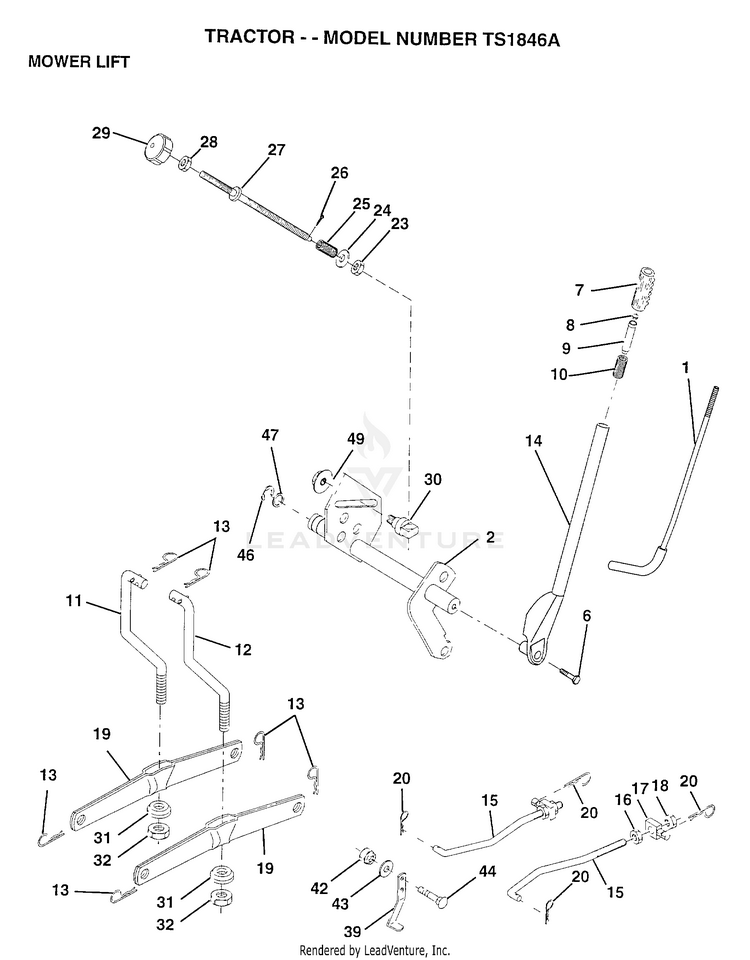

MOWER LIFT

...
...
1
LEVER ROD LT HUS-121006X
...
2
SHAFT LIFT W/IND HUS-140673
...
6
"BOLT,HEX" HUS-74780624
...
7
GRIP HANDLE HUS-125631X
...
8
SUB= 125925X HUS-124526X
...
9
SUB= 125925X HUS-122364X
...
10
SPRING T HUS-2876H
...
11
LINK.LIFT.LH.GTV HUS-145537
...
12
LINK.LIFT.RH.GTV. HUS-145536
...
13
SUB= 85902 HUS-4939M
...
14
SUB= 123096X HUS-121002X
...
15
LINK.FRONT HUS-127218
...
16
NUT HUS-73350800
...
17
TRUNION HUS-130171
...
18
NUT.LK.W/WSH.1/2. HUS-73800800
...
19
ARM SUSP REAR HUS-139868
...
20
RETAINER.SPRING HUS-3146R
...
23
NUT T HUS-110807X
...
24
WASHER HUS-19131016
...
25
SPRING.COMP.INF.H HUS-137150
...
26
SUB= 3145 HUS-76020308
...
27
ROD.ADJ.LIFT HUS-137167
...
28
NUT HUS-73350600
...
29
KNOB INF 3/8-16 HUS-138057
...
30
TRUNNION HUS-150233
...
31
BEARING PVT LH HUS-140302
...
32
NUT.CROWNLOCK.3/8 HUS-73540600
...
39
STOP.OVER.CENTER HUS-142992
...
42
SUB= 73690600 HUS-73680600
...
43
WASHER GT HUS-19131612
...
44
BOLT HUS-72240608
...
46
E-RING HUS-12000022
...
47
WASHER HUS-19292016
...
49
NUT.HXFLG.LOCK. HUS-145212
