product name

Husqvarna TS1844B (1995) Tractor

Model: TS1844B (1995)

Back To Assemblies

Save Part Not Listed?
product name

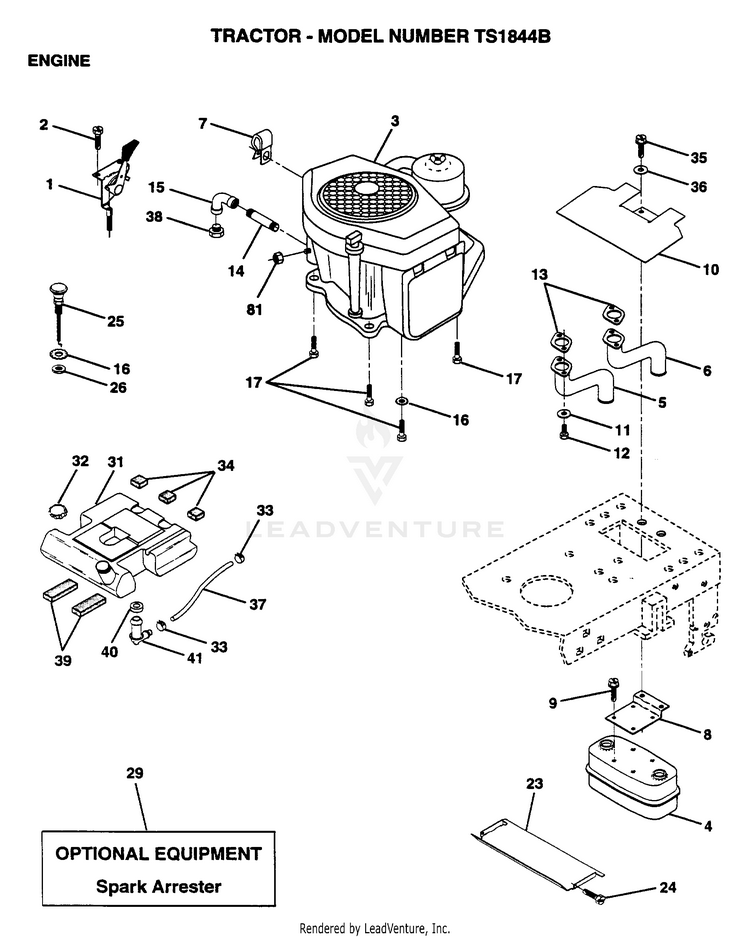

ENGINE

...
...
1
SUB= 532132748 HUS-132747
...
2
SCREW LT HUS-17720410
...
3
ENGINE, KOHLER HUS-CV18S
...
4
SUB= 149723 HUS-137978
...
5
PIPE-EXHAUST.LH HUS-146699
...
6
PIPE-EXHAUST.RH. HUS-146700
...
7
CLIP T HUS-2751R
...
8
BRACKET MUFFLER HUS-122439X
...
9
SCREW ST HUS-17190408
...
10
SHIELD.HEAT.MUFF. HUS-146629
...
11
LOCKWASHER HUS-10040500
...
12
SCREW HUS-74570512
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW LT HUS-17490624
...
23
HEAT SHIELD HUS-128953
...
24
SCREW HUS-17021008
...
25
SUB= 132781 HUS-132782
...
26
SUB= 7810H HUS-73610600
...
29
SUB= 532137180 HUS-137180
...
31
SUB= 151346 HUS-141069
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
34
PAD-SPACER LT HUS-106082X
...
35
SCREW HUS-17490512
...
36
WASHER HUS-19132012
...
37
FUEL LINE T HUS-8543R
...
39
PAD IDLER TI HUS-109227X
...
40
BUSHING OUTLET T HUS-3645J
...
41
STEM.TANK.FUEL HUS-139277
...
81
NUT HUS-73510400
Schematic Image Zoomed
