Husqvarna TS1844A (1993) Tractor

Model: TS1844A (1993)

Back To Assemblies

Save Part Not Listed?
product name

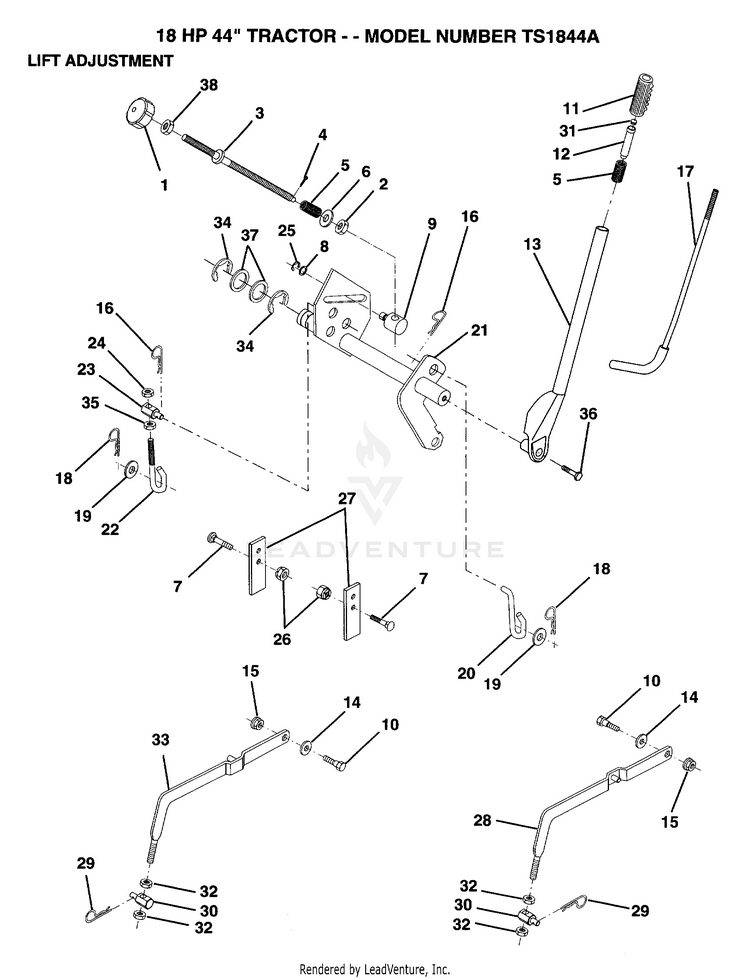

LIFT ADJUSTMENT

...
...
1
KNOB INF 3/8-16 HUS-138057
...
2
NUT T HUS-110807X
...
3
ROD LIFT LT HUS-110729X
...
4
SUB= 3145 HUS-76020308
...
5
SPRING T HUS-2876H
...
6
WASHER HUS-19131016
...
7
SUB= 72110608 HUS-72140608
...
8
WASHER HUS-19151216
...
9
TRUNION LT HUS-110810X
...
10
"BOLT, SHOULDER LT" HUS-105848X
...
11
GRIP HUS-109413X
...
12
SUB= 125925X HUS-122364X
...
13
SUB= 123096X HUS-121002X
...
14
WASHER T HUS-110739X
...
15
NUT SPECIAL T HUS-73980600
...
16
SUB= 85902 HUS-4939M
...
17
LEVER ROD LT HUS-121006X
...
18
SPRING.RETAINER HUS-4921H
...
19
WASHER T HUS-19171516
...
20
LIFT LINK LT HUS-110029X
...
21
SUB= 532131926 HUS-131926
...
22
PIVOT PIN T HUS-110448X
...
23
SUB= 132793 HUS-110447X
...
24
NUT LOCK YTH HUS-73710700
...
25
KLIP RING HUS-12000037
...
26
SUB= 73690600 HUS-73680600
...
27
UPSTOP HUS-121252X
...
28
RH SUSP ARM ASM HUS-121598X
...
29
SPRING H HUS-9135R
...
30
SUB= 130171 HUS-106308X
...
31
SUB= 125925X HUS-124526X
...
32
NUT HUS-73220800
...
33
LH SUSP ARM ASM HUS-121599X
...
34
E-RING HUS-12000022
...
35
NUT HUS-73360700
...
36
"BOLT,HEX" HUS-74780624
...
37
WASHER HUS-19292016
...
38
NUT HUS-73350600
