Husqvarna TS14H42B (1994) Tractor

Model: TS14H42B (1994)

Back To Assemblies

Save Part Not Listed?
product name

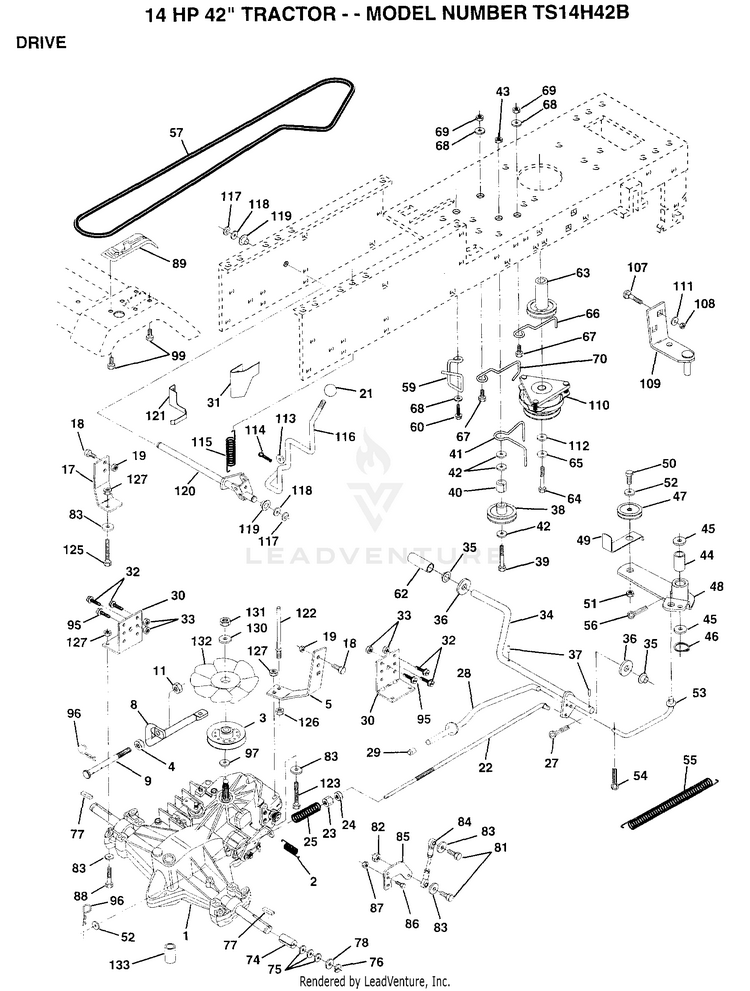

DRIVE

...
...
1
SUB= 150071 HUS-140295
...
2
SPRING RET BRAKE HUS-142431
...
3
SUB= 143995 HUS-140293
...
4
JAM NUT TI HUS-73350500
...
5
STRAP TORQ RH HYD HUS-140157
...
8
SUB= 144832 HUS-140357
...
9
SUB= 144832 HUS-140550
...
11
NUT HUS-73800500
...
17
STRAP TORQ LH HYD HUS-140158
...
18
BOLT HUS-74780616
...
19
NUT HUS-73800600
...
21
KNOB T (1/2-HOLE) HUS-106933X
...
22
SUB= 145627 HUS-140217
...
23
NUT HUS-73350600
...
24
NUT HUS-73800600
...
25
SPRING ROD LT HUS-106888X
...
27
COTTER PIN HUS-76020412
...
28
BRAKE PARK ROD HUS-133261
...
29
PLUNGER CAP T HUS-71673
...
30
TRANSAXLE MTG BKT HUS-130807
...
31
"KEEPER,BELT LH T" HUS-127275X
...
32
BOLT HUS-74760512
...
33
NUT HUS-73800500
...
34
SUB= 149001 HUS-122424X
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
PULLEY.IDLER.FLAT HUS-123674X
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
BELT KEEPER LT HUS-109070X
...
42
WASHER HUS-19131312
...
43
SUB= 73690600 HUS-73680600
...
44
"LY, BEARING" HUS-105706X
...
45
WASHER LT HUS-110812X
...
46
KLIP RING HUS-12000039
...
47
SUB= 139245 HUS-127783
...
48
ARM IDLER HUS-123789X
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
WASHER HUS-19131316
...
53
"LINK, CLUTCH T" HUS-105710X
...
54
COTTER PIN HUS-76020412
...
55
"SPRING, RETURN LT" HUS-105709X
...
56
COTTER PIN HUS-76020412
...
57
"BELT.GD DRV 82""" HUS-140294
...
59
KEEPER BELT CNTSP HUS-140312
...
60
SCREW HUS-17490612
...
62
PEDAL COVER T HUS-8883R
...
63
PULLEY CLU ELEC HUS-140189
...
64
SUB= M747810110 HUS-M010110110
...
65
LOCKWASHER HUS-10040700
...
66
KEEPER BELT ENGLH HUS-121218X
...
67
BOLT HUS-74760616
...
68
WASHER HUS-19131312
...
69
SUB= 73690600 HUS-73680600
...
70
"KEEPER,BLT ENG LT" HUS-105730X
...
74
SPACER SPLIT HUS-121199X
...
75
WASHER HUS-121749X
...
76
E-RING LT HUS-12000001
...
77
SQUARE KEY HUS-123583X
...
78
WASHER HUS-121748X
...
81
BOLT HUS-74780520
...
82
NUT HUS-73800500
...
83
WASHER M HUS-19111216
...
84
ROD.TIE.BALL.4.75 HUS-140548
...
85
ARM CONTROL HYDRO HUS-140156
...
86
SCREW CAP 5/16-18 HUS-71070516
...
87
NUT HUS-73800500
...
88
BOLT HEX HUS-74780544
...
89
SUB= 153764 HUS-139988
...
95
SCREW HUS-17490612
...
96
RETAINER M HUS-4497H
...
97
WASHER LT HUS-19211616
...
99
SCREW HEXWSH H-L HUS-142432
...
107
BOLT HUS-72140506
...
108
SUB= 73690500 HUS-73680500
...
109
BRACKET.ASM.MTG HUS-137141
...
110
SUB= 142600 HUS-137140
...
111
WASHER T HUS-19111012
...
112
WASHER HUS-126197X
...
113
WASHER HUS-19171216
...
114
PIN COTTER 1/8 HUS-76020416
...
115
"SPRING,TORSION" HUS-123782X
...
116
ROD SHIFT FEND LT HUS-141003
...
117
KLIP RING HUS-12000008
...
118
WASHER D HUS-19212016
...
119
BUSHING HUS-71208
...
120
SUB= 156046 HUS-140154
...
121
KEEPER BELT LH HUS-140470
...
122
BOLT KEEPER RH HUS-140469
...
123
NLA HUS-74780536
...
125
HEX BOLT HUS-74780524
...
126
NUT HUS-73510600
...
127
NUT HUS-73800500
...
130
WASHER BELLEVILLE HUS-141322
...
131
NUT NYLON 1/2-20 HUS-50831
...
132
"FAN 7"" HYDRO" HUS-140462
...
133
"LINE FUEL HYD 4""" HUS-142564
