Husqvarna TS14H42A (1993) Tractor

Model: TS14H42A (1993)

Back To Assemblies

Save Part Not Listed?
product name

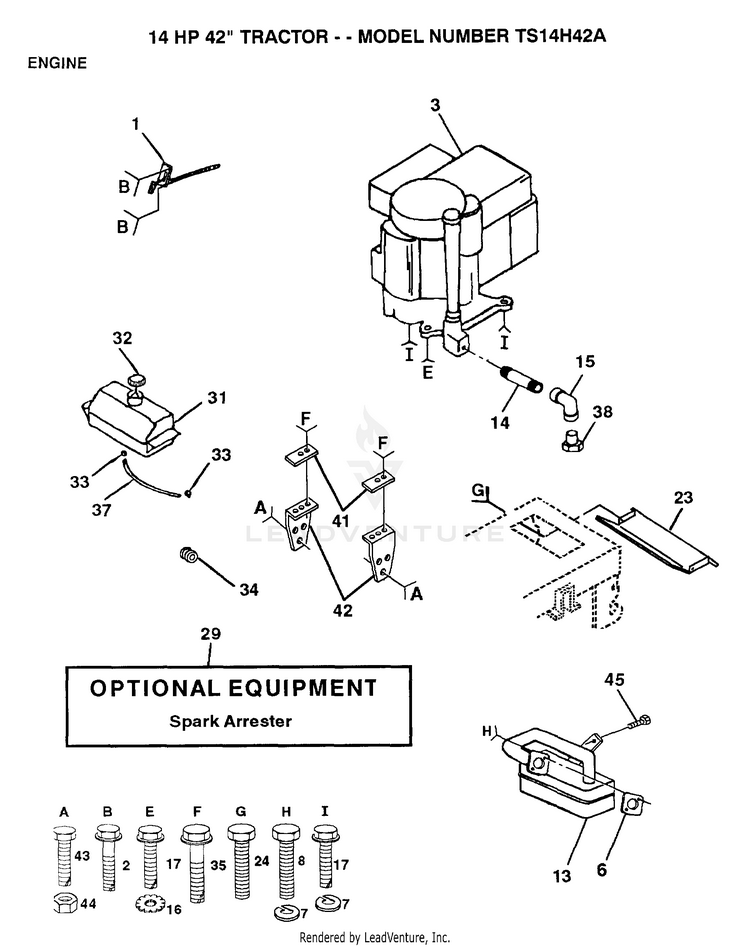

ENGINE

...
...
1
THROTTLE CONTROL HUS-132753
...
2
SCREW LT HUS-17720410
...
3
ENGINE KOHLER 14HP HUS-PS1454
...
7
LOCKWASHER HUS-10040500
...
8
BOLT HUS-74760508
...
13
MUFFLER.LT.12.5 HUS-137350
...
14
PIPE NIPPLE HUS-13280328
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER.5/16.E HUS-11050500
...
17
"BOLT,HEX" HUS-M740108025
...
23
HEAT SHIELD HUS-128953
...
24
SCREW HUS-17021008
...
29
SUB= 532137180 HUS-137180
...
31
TANK.FUEL.LT. HUS-109202X
...
32
SUB= 158990 HUS-123549X
...
33
HOSE CLAMP HUS-123487X
...
34
SUB= 9151R HUS-110436X
...
35
SCREW HUS-17490612
...
37
SUB= 8542R HUS-7834R
...
41
"CLAMP,FUEL TANK T" HUS-128230
...
42
BRKT FUEL TANK T HUS-128229
...
43
BOLT HUS-74760616
...
44
SUB= 73690600 HUS-73680600
