Husqvarna TS 38 - 96041036602 (2017-04) Tractors/Ride Mower

Model: TS 38 - 96041036602 (2017-04)

Back To Assemblies

Save Part Not Listed?
product name

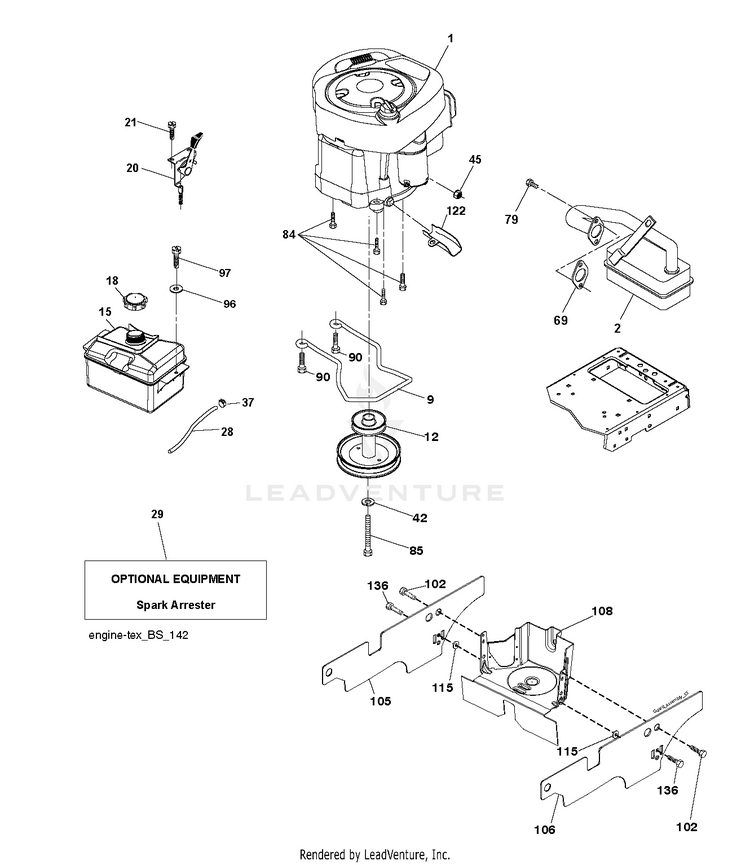

ENGINE

...
...
12
PULLEY.ENGINE HUS-586729001
...
96
Washers HUS-596135301
...
21
Screws HUS-596321701
...
37
HOSE CLAMP HUS-532123487
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
15
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
79
Screws HUS-596134201
...
106
SHIELD.SIDE.LH.3842"TEX FRN.BK HUS-501268202
...
122
EXTENSION DRAIN OIL HUS-532421922
...
42
Washers HUS-596238901
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
1
Engine Briggs Model No. 21R707-0115-B1(501303601) HUS-000000000
...
2
MUFFLER.B&S.MODEL.21.11HP.OHV HUS-532179758
...
69
GASKET.EXHAUST.KOHLER HUS-532185909
...
105
SHIELD.SIDE.LH.3842"TEX FRN.BK HUS-501267202
...
108
COVER ENGINE PULLEY COVER WITH HUS-587179509
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
115
RETAINER HUS-532431761
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
9
KEEPER.BELT.ENG.3.25"2BOLT.PNT HUS-582540302
...
90
SCREW 3/8-16X1 HUS-817000616
...
84
SCREW.3/8-16 HUS-817060620
...
136
Screws HUS-596434001
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
