Husqvarna TS 354XD - 96041041900 (2018-03) Riding Tractor

Model: TS 354XD - 96041041900 (2018-03)

Back To Assemblies

Save Part Not Listed?
product name

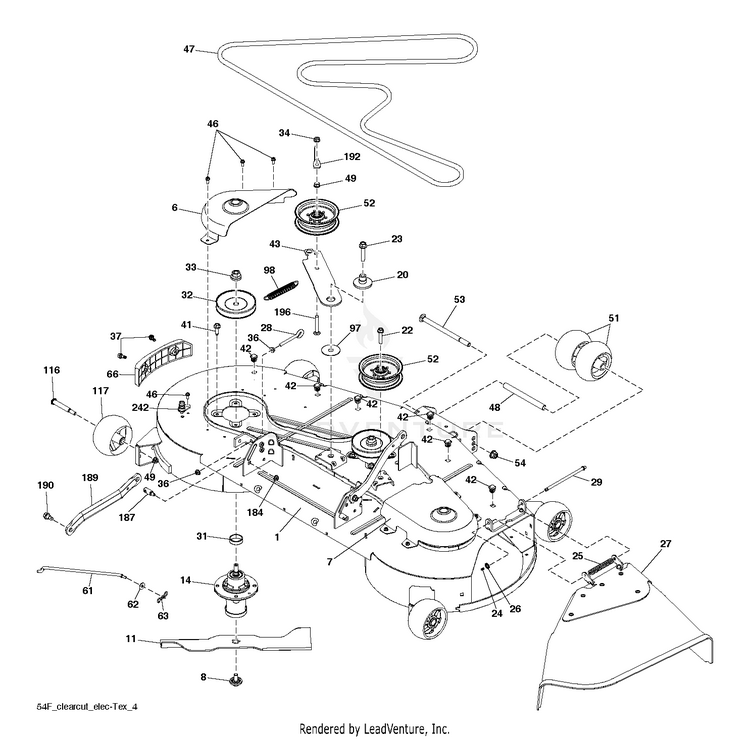

MOWER DECK / CUTTING DECK

...
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
6
COVER 54 CLEARCUT, LH MANDREL, HUS-590304303
...
14
MANDREL ASM, CAST IRON HUS-539131898
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
116
Bolts HUS-596434404
...
28
GSPW Bolts HUS-596240801
...
61
Rods HUS-596274401
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
11
BLADE CC54 PZ STYLE HI LIFT BL HUS-582760502
...
187
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
32
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
36
GSPW Hardware HUS-596039201
...
20
SPACER.IDLER.PULLY.HUB HUS-532197236
...
--
SERVICE KIT KIT.SVC.WELDMENT.5 HUS-592618801
...
48
Tubes HUS-574196502
...
196
Bolts HUS-596337801
...
189
LINK FIXED MOWER DRAWBAR BLACK HUS-536050602
...
29
Rods HUS-595297001
...
52
PULLEY.IDLER.2006 HUS-532196106
...
62
GSPH HUS-596134901
...
26
NUT PUSH M HUS-532110452
...
1
SERVICE KIT KIT.SVC.WELDMENT.5 HUS-592618801
...
51
ROLLER, GAUGE .635 BORN HUS-574169601
...
97
WASHER HUS-532178515
...
54
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
53
Bolts HUS-594944501
...
22
BOLT HUS-599972501
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
27
DEFLECTOR ASSY 54 CLEARCUT RES HUS-590632201
...
242
PORT.WASHOUT HUS-532415598
...
98
SPRING.EXTN.42.FCS.TR.DECK.DRV HUS-587358401
...
25
SPRING.42.FCS.DEFLECTOR HUS-587354701
...
190
BOLT.SHOULDER HUS-532196539
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
33
Nuts HUS-596134801
...
--
COUPLING.QUICK CONNECT HUS-532416405
...
63
PIN.COTTER.5/16.BOW TI HUS-532194208
...
47
BELT CLEARCUT 54, TRACTOR DECK HUS-582236301
...
37
SHOULDER BOLT 5/16-18TT HUS-532170165
...
66
BUMPER ASSY 54 CLEARCUT TRIM S HUS-590732501
...
43
ARM IDLER ARM, CLEARCUT 54 BLA HUS-582219602
...
192
KEEPER.BELT.IDLER.54"T HUS-532198468
...
42
Plugs HUS-596952201
...
7
COVER 54 CLEARCUT RH MANDREL G HUS-590304203
...
23
SCREW.7/16-14 X 2.125.WASHER HUS-588438301
...
34
Nuts HUS-596322601
...
184
GSPW Nuts HUS-596135701
...
24
CAP-SLEEVE LT HUS-532105304
