Husqvarna TS 348XD - 96043031900 (2019-08) Riding Tractor

Model: TS 348XD - 96043031900 (2019-08)

Back To Assemblies

Save Part Not Listed?
product name

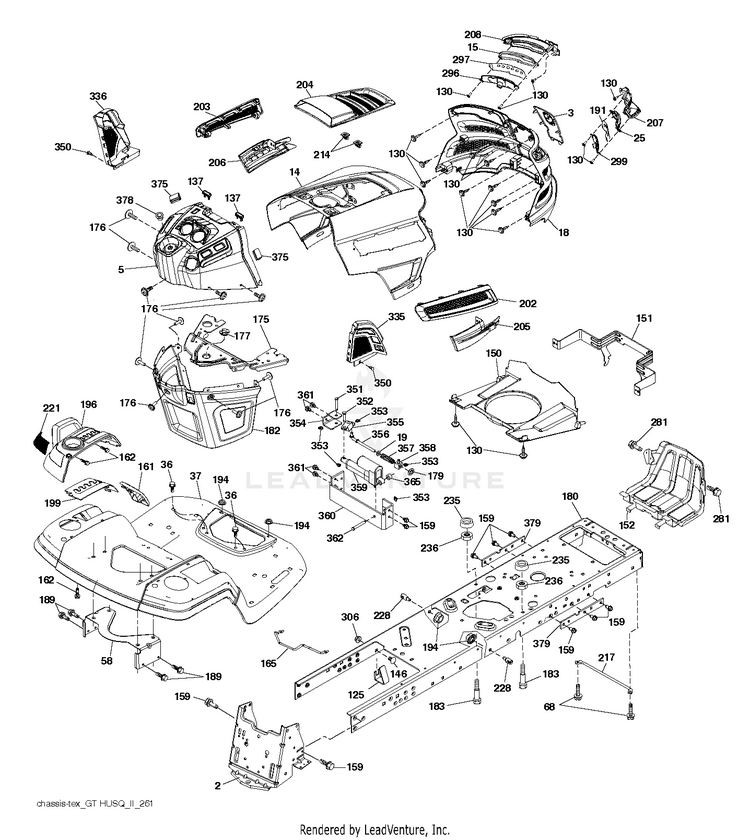

CHASSIS / FRAME

...
...
281
SCREW 3/8-16X1 HUS-817000616
...
299
LED LIGHT.RH HUS-585420401
...
296
LED LIGHT.LH HUS-585420501
...
130
Screws HUS-596321701
...
208
BEZEL GT2 LED LH W/ LOWER ATT LH HUS-585420102
...
354
SUPPORT.BELLCRANK HUS-583597601
...
137
BUMPER DASH HUS-532407590
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
358
GUIDE.SWIVEL HUS-580366601
...
365
NYLN.SPCR.375 X .75 X .4375.L HUS-583590601
...
68
Screws HUS-596030701
...
379
CHASSIS.PLATE.REINFORCEMNT.431 HUS-593206902
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
378
BUSHING FLANGE; PLASTIC HUS-590849801
...
207
BEZEL GT2 LED RH W/ LOWER.ATT RH HUS-585420002
...
204
VENT.TOP.ASM.HUSQ.GT2 HUS-587485801
...
165
SUPPORT.TANK.REAR.B/TE HUS-532194330
...
5
DASH.UPR.GT2.DUAL.RD.PTO.MC HUS-590748819
...
146
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 HUS-581857901
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
221
REFLECTOR.LH.TEX GT HU LH HUS-532198909
...
235
Spacers HUS-596564201
...
15
Grilles LH HUS-597247301
...
359
ACTUATOR HUS-534996001
...
306
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
356
LINK.LOCK.DIFF HUS-583598601
...
360
BRACKET ACUATOR HUS-583597501
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
162
Screws HUS-596134101
...
--
TRACTOR BRUSH GUARD LS MODELS HUS-505568813
...
25
LENS.RH RH HUS-585420201
...
375
BUMPER CLIP-ON. DASH 1" HUS-586908201
...
150
AIR.DUCT.GTV.BLACK HUS-532439774
...
18
Grilles HUS-597247201
...
357
SPRING.COMPRESSION HUS-583598501
...
191
INSERT INFLECT.RH HUS-586182801
...
297
INSERT REFECT LH HUS-586182901
...
351
PIN.CLEVIS.375X2.125 HUS-532421734
...
19
Washers HUS-596133201
...
355
BELLCRANK.PIVOT.LOCK.DIFF HUS-583598101
...
199
PLATE.DECK.LIFT.HUSQVARNA.GT HUS-532198259
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
161
FUEL WINDOW HUS-532401801
...
2
DRAWBAR.STGT HUS-580434401
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
361
Screws HUS-596564002
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
336
COVER-LH.LOWER.DASH.GT2.BLACK HUS-532445309
...
37
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ HUS-532441208
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
362
CLEVIS.375 X 2.42 HUS-583597901
...
183
Screws HUS-595305701
...
353
CLIP RETAINER HUS-532178062
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
179
NUT HUS-532168937
...
217
ROD.PIVOT.HOOD HUS-532409167
...
58
BRKT.SUPPORT.FNDR/TANK HUS-532194314
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
352
CLEVIS.375X1.25 HUS-583598001
...
3
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
335
COVER.LOWER.DASH.RH.BLACK HUS-532448204
...
180
KITS.TEX.BOLTED.CHASSIS.445559 HUS-582033101
...
125
CLIP.FUEL.LINE HUS-581684801
...
350
CLIP.X-MAS.TREE HUS-532445143
...
177
BUSHING STEERING HUS-532195228
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
194
GSPW Nuts HUS-596135701
...
196
SUBASM.CONSOLE.HUSQ.GT.DECKLFT HUS-532439716
...
202
VENT.SIDE.RH.GT.HUSQ.II. RH HUS-532439728
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 LH HUS-532439727
