Husqvarna TS 348XD - 96041043700 (2019-08) Riding Tractor

Model: TS 348XD - 96041043700 (2019-08)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
41
WASHER HUS-532126197
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
12
PULLEY ENGINE HUS-532194343
...
45
Hardware HUS-596133601
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
70
EXHAUST.TUBE.LH.BS/TWIN LH HUS-581881101
...
15
TANK.FUEL.4GAL HUS-532193499
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
116
KNOB - SHIFT HUS-539132624
...
91
BUSHING.1.375OD HUS-532187495
...
82
VALUE.OIL.DRAIN HUS-532428287
...
69
GASKET.MUFFLER HUS-532165391
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH01 HUS-587241401
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK RH HUS-581881001
...
105
SHIELD 48 CLEARCUT EURO TRACTO HUS-591204902
...
85
BOLT.HEX.7/16-20X3.GR5.YELLOW HUS-501606901
...
9
Keepers HUS-596501502
...
106
SHIELD 48 CLEARCUT EURO TRACTO HUS-591205002
...
1
ENGINE B&S MODEL NO. 44U877-0023-B1 (594083601) HUS-000000000
...
37
HOSE CLAMP HUS-532123487
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
42
Washers HUS-596238901
...
90
SCREW 3/8-16X1 HUS-817000616
...
84
SCREW.3/8-16 HUS-817060620
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
108
COVER 48 CLEARCUT EURO TRACTOR HUS-592727101
...
21
Screws HUS-596321701
...
79
Screws HUS-596134202
...
20
CONTROL.THROTTLE.PRO. HUS-532424341
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702

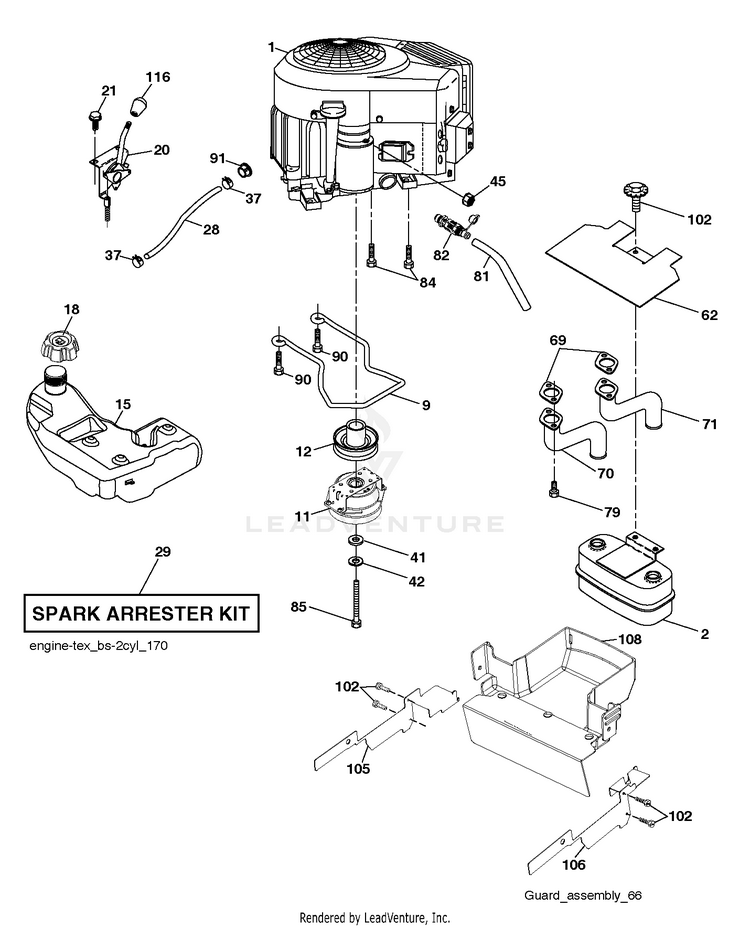

Schematic Image Zoomed
