Husqvarna TS 348XD - 96041043700 (2019-08) Riding Tractor

Model: TS 348XD - 96041043700 (2019-08)

Back To Assemblies

Save Part Not Listed?
product name

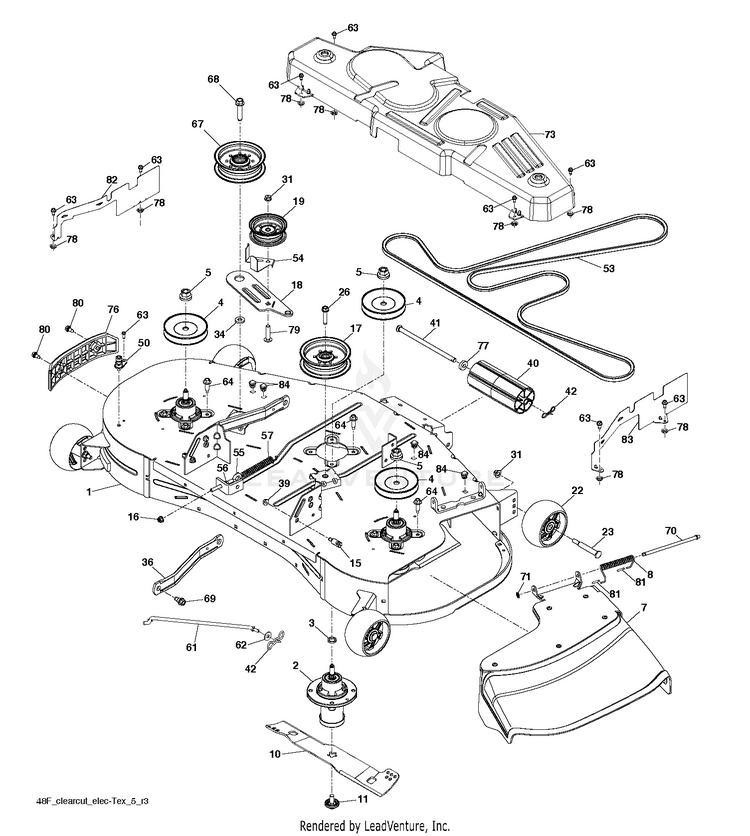

MOWER DECK / CUTTING DECK

...
...
11
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
53
Belts HUS-599275701
...
8
SPRING.42.FCS.DEFLECTOR HUS-587354701
...
50
PORT.WASHOUT HUS-532415598
...
67
PULLEY.IDLER.2006 HUS-532196106
...
82
SHIELD 48 CLEARCUT EURO TRACTO HUS-591204702
...
2
MANDREL ASM, CAST IRON HUS-539131898
...
5
Nuts HUS-596134801
...
80
SHOULDER BOLT 5/16-18TT HUS-532170165
...
79
Bolts HUS-596136201
...
84
Plugs HUS-596952201
...
61
Rods HUS-596274401
...
57
SPRING.EXTN.42.FCS.TR.DECK.DRV HUS-587358401
...
56
GSPW Hardware HUS-596039201
...
55
GSPW Bolts HUS-596240801
...
70
Rods HUS-595297001
...
69
BOLT.SHOULDER HUS-532196539
...
23
Bolts HUS-596434404
...
64
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
81
CAP-SLEEVE LT HUS-532105304
...
15
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
39
GSPW Nuts HUS-596135701
...
1
DECK.SVC.48.CC.ASM.668 HUS-583810001
...
40
NOSE ROLLER 48" HUS-532176066
...
18
IDLER ARM HUS-529470302
...
19
PULLEY.IDLER.FLAT HUS-532177968
...
54
SERVICE KIT GUARD HUS-531165901
...
10
BLADE.48.CC.EURO.RES.BGR.MS431 HUS-591203902
...
7
GSPW Deflectors HUS-593649701
...
73
COVER 48 CLEARCUT EURO TRACTOR HUS-591204601
...
31
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
22
WHEEL.GAUGE.RALLY HUS-589527301
...
68
BOLT HUS-599972501
...
4
MANDREL PULLEY HUS-532173434
...
71
NUT PUSH M HUS-532110452
...
42
PIN.COTTER.5/16.BOW TI HUS-532194208
...
63
Screws HUS-596637301
...
76
BUMPER 48 CLEARCUT TRIM SIDE A HUS-582541103
...
17
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
34
WASHER HUS-532178515
...
62
Washers HUS-596133201
...
41
Rods HUS-594092501
...
26
SCREW.7/16-14 X 2.125.WASHER HUS-588438301
...
16
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
77
BUSHING.NOSE.ROLLER HUS-582360501
...
83
SHIELD 48 CLEARCUT EURO TRACTO HUS-591204802
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
36
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
78
PALNUT 1/4 HUS-532423062
