Husqvarna TS 348XD - 96041042500 (2018-04) Riding Tractor

Model: TS 348XD - 96041042500 (2018-04)

Back To Assemblies

Save Part Not Listed?
product name

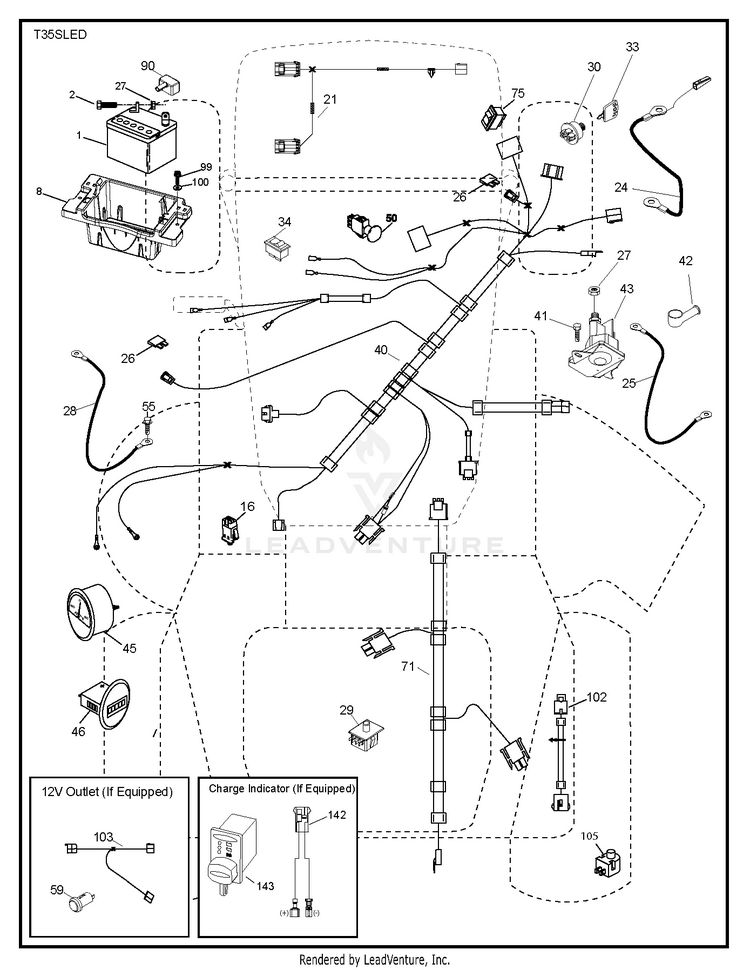

ELECTRICAL

...
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
21
HARNESS LIGHT ASSY TRACTOR, HUS-585436401
...
43
Solenoids HUS-582042802
...
99
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
8
TRAY.BATTERY BOX.FRONT HUS-587205101
...
42
COVER.TERMINAL.RED HUS-532154336
...
105
REVERSE SWITCH HUS-532407568
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
25
CABLE.STARTER.8GA.17.5 HUS-585555501
...
102
HARNESS PIGTAIL PCH TEX ROS HUS-532404454
...
45
AMMETER HUS-529910801
...
143
CTEK CHARGE PORT W/HARNESS HUS-583593501
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
41
Screws HUS-596437001
...
71
HARNESS.IGN.CHASSIS.TEX.DCKLOC HUS-580513001
...
46
HOUR METER HUS-529910701
...
29
SWITCH.SEAT.DP W/RAMPS HUS-532192749
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
26
FUSE 20AMP HUS-532175158
...
40
NEEDS DESCRIPTION HUS-595075201
...
24
CABLE.FRBATT.W/WIRE.8GA.8 HUS-585555601
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
100
Washers HUS-596135301
...
34
SWITCH LT HUS-532110712
...
28
CABLE.GROUND.21"BLK.8GA.90T HUS-532416588
...
75
SWITCH.ON/OFF.(DIFF.LOCK) HUS-580366401
