Husqvarna TS 348D - 96043027000 (2017-10) Riding Tractor

Model: TS 348D - 96043027000 (2017-10)

Back To Assemblies

Save Part Not Listed?
product name

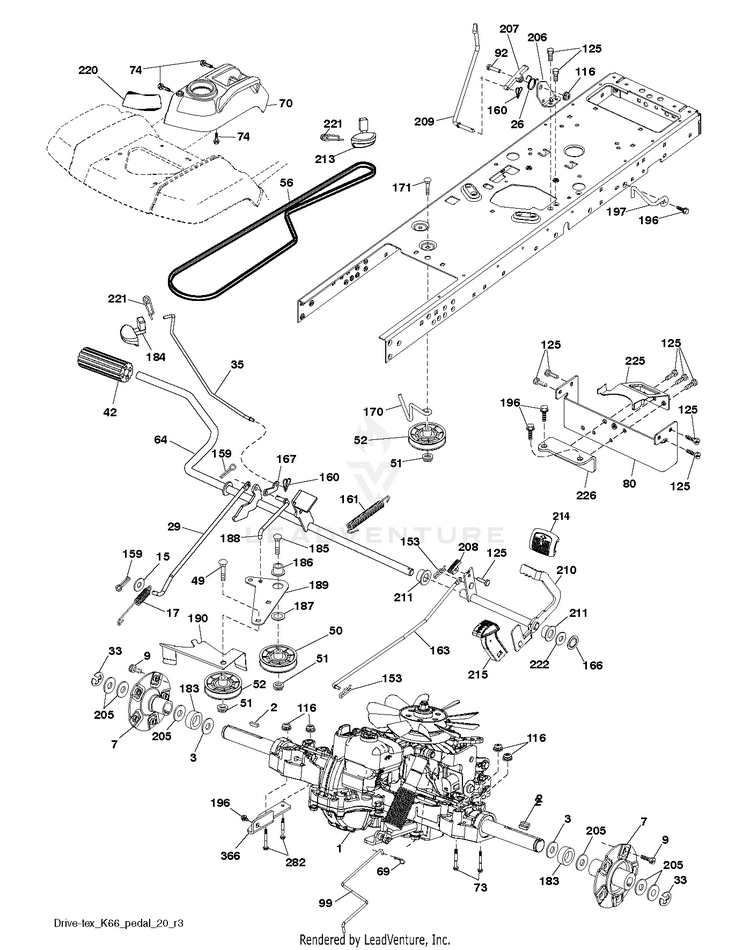

DRIVE

...
...
196
SCREW 3/8-16X1 HUS-817000616
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
226
BRACKET.MOUNT.TORQUE.K66.TG HUS-532407109
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
1
ABSORBER Shock Absorber For Transmission HUS-536879901
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
183
SPACER.SPLIT.1.000IDX1.75 HUS-587587401
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
207
Latch HUS-587031402
...
--
TRACTOR BRUSH GUARD LS MODELS HUS-505568813
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
70
CONSOLE.ASM.RH.GT.FC.HUSQ HUS-532439661
...
166
NUT.PUSH.625 HUS-532429164
...
56
BELT HUS-532125907
...
366
BRACKET.REINFORCEMENT HUS-580626201
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
153
RETAINER M HUS-532004497
...
187
Washers HUS-596135501
...
1
TRANSAXLE, TUFFTORQ K66ELD (580402201) HUS-000000000
...
3
WASHER T HUS-532007563
...
160
GSPW Retainers HUS-596029401
...
185
BOLT HUS-872110622
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
7
HUB.PNT.GT.PM.1IN.AXLE.E-DIP HUS-586935402
...
69
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
29
ROD.BRAKE.K66 HUS-532407245
...
282
BOLT HEX FLGHD 5/16-18X3 GR. 5 HUS-874490548
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
170
KEEPER.V-IDLER.CENTER. HUS-532194322
...
33
E RING HYT HUS-812000053
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
211
BEARING.NYLON HUS-532120183
...
17
SPRING.BRAKE.K46 HUS-532401072
...
163
ROD.PEDAL.CONTROL HUS-532407246
...
159
Pins HUS-596029501
...
209
ROD ROD.CRUISECONTROL.GT.HUSQ/ HUS-590527802
...
35
ROD ROD.PARKINGBRAKE.GT.HUSQ/P HUS-590605902
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
210
ROCKER.ASM.PEDAL.CONTR RH HUS-532197860
...
92
Screws HUS-595305701
...
49
Bolts HUS-596136201
...
99
ROD.BYPASS.K66 HUS-582404701
...
215
PEDAL.COVER.REVERSE.CRD.X428BK HUS-586606502
...
73
Bolts HUS-595316601
...
9
Bolts HUS-596218701
...
42
PAD, FOOT PEDAL HUS-510089501
...
2
KEY, 1/4 SQ X 1 1/4 HUS-539912757
...
205
WASHER HUS-532123800
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
186
SPACER.RETAINER HUS-532194321
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
171
Bolts HUS-596136301
...
116
GSPW Nuts HUS-596135701
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
208
Gears HUS-596564101
...
220
REFLECTOR.RH.TEX GT RH HUS-532198908
...
74
Screws HUS-596134101
...
225
KEEPER.BELT.TRANSAXLE.K66 HUS-532407311
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
80
STRAP.PNT.TORQUE.K66.EDIP HUS-589333402
...
161
SPRING, RETURN LT HUS-532105709
...
197
Stop HUS-585658602
