Husqvarna TS 346 - 96041037200 (2014-07) Tractors/Ride Mower

Model: TS 346 - 96041037200 (2014-07)

Back To Assemblies

Save Part Not Listed?
product name

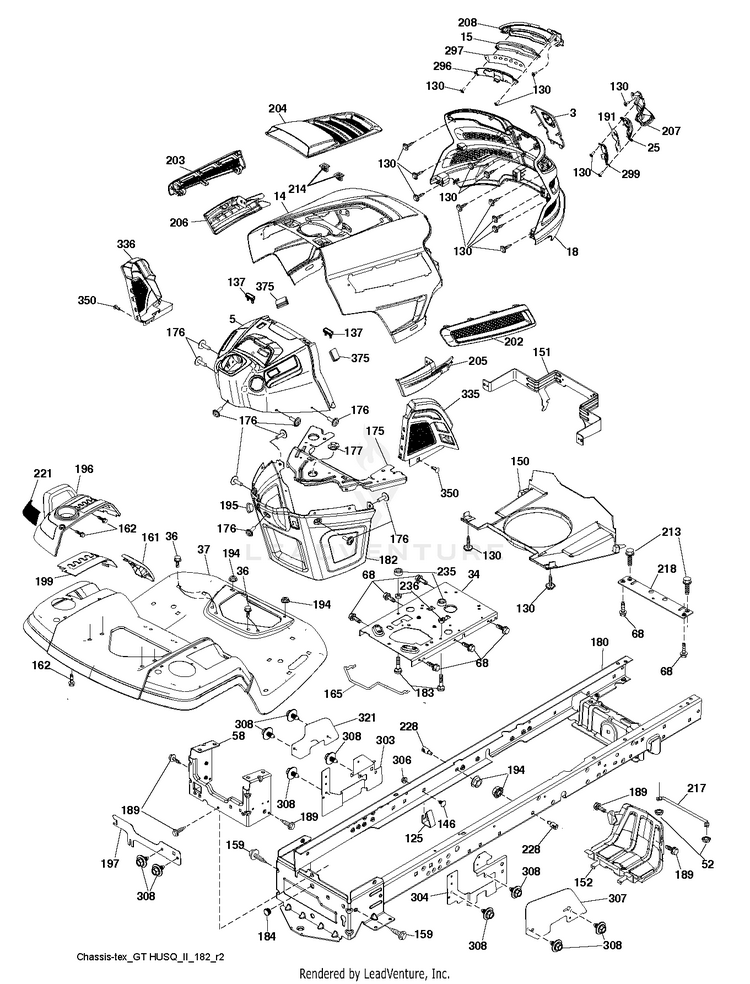

CHASSIS & ENCLOSURES

...
...
336
COVER-LH.LOWER.DASH.GT2.BLACK HUS-532445309
...
191
INSERT INFLECT.RH HUS-586182801
...
308
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
184
PLUG.DEMO.625 HUS-587554101
...
296
LED LIGHT.LH HUS-585420501
...
177
BUSHING, STEERING HUS-532195227
...
137
BUMPER DASH HUS-532407590
...
202
VENT.SIDE.RH.GT.HUSQ.II. HUS-532439728
...
194
GSPW Nuts HUS-596135701
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
5
GT2.DASH.UPPER.W/BUMPERS HUS-581674202
...
15
Grilles HUS-597247301
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
150
AIR.DUCT.GTV.BLACK HUS-532439774
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
307
SHIELD.UPPER.PEDAL.TEX.FRENCH HUS-583413101
...
3
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
183
Screws HUS-595305701
...
306
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
207
LIGHT.BEZEL. RH HUS-585420001
...
- -
TRACTOR BRUSH GUARD LS MODELS HUS-505568813
...
204
VENT.TOP.ASM.HUSQ.GT2 HUS-587485801
...
335
COVER.LOWER.DASH.RH.BLACK HUS-532448204
...
37
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ HUS-532441208
...
165
SUPPORT.TANK.REAR.W/TEX HUS-532196826
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
205
SIDE.TRIM.RH.GT.HUSQ.II HUS-532439730
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
146
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 HUS-581857901
...
52
Hardware HUS-596040501
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY HUS-532439729
...
162
Screws HUS-596134101
...
235
Spacers HUS-596564201
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
- -
PLUG.LIGHT.SWITCH.GREY HUS-586297601
...
180
CHASSIS WELDMENT HUS-531437601
...
199
PLATE.DECK.LIFT.HUSQVARNA.GT HUS-532198259
...
375
BUMPER CLIP-ON. DASH 1" HUS-586908201
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
221
REFLECTOR.LH.TEX GT HU HUS-532198909
...
350
CLIP.X-MAS.TREE HUS-532445143
...
321
SHIELD.UPPER.LH.GT HUS-587520201
...
58
DRAWBAR.UPPER.2PC,LRG.FENDER HUS-532412281
...
125
CLIP.FUEL.LINE HUS-581684801
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
208
LED LIGHT.LH HUS-585420501
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
303
SHEILD.CHASSIS.FRENCH.LH HUS-583384401
...
304
SHIELD.RH.LOW.LT/GT.NON-30.PNT HUS-587865102
...
18
Grilles HUS-597247201
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
25
LENS.RH HUS-585420201
...
196
SUBASM.CONSOLE.HUSQ.GT.DECKLFT HUS-532439716
...
299
LED LIGHT.RH HUS-585420401
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 HUS-532439727
...
161
FUEL WINDOW HUS-532401801
...
297
INSERT REFECT LH HUS-586182901
...
130
Screws HUS-596321701
...
68
Screws HUS-596030701
...
217
ROD.PIVOT.HOOD HUS-532409167
...
197
SHIELD.DRAWBAR.LT.REAR.TANK HUS-589204602
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
