Husqvarna TS 342 - 96041038600 (2015-03) Tractors/Ride Mower

Model: TS 342 - 96041038600 (2015-03)

Back To Assemblies

Save Part Not Listed?
product name

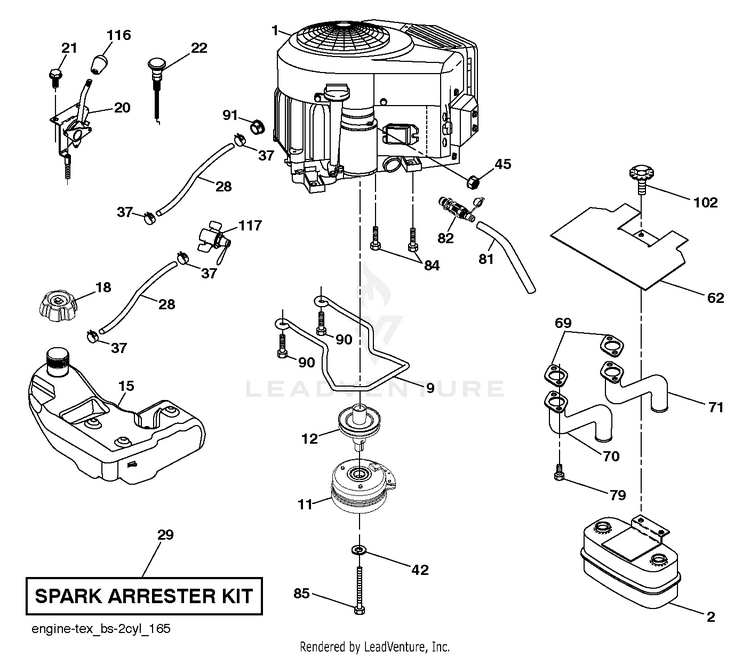

ENGINE

...
...
84
SCREW.3/8-16 HUS-817060620
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
1
ENGINE B&S MODEL NO. 385777-0007-G1 (588627901) HUS-000000000
...
116
KNOB - SHIFT HUS-539132624
...
85
BOLT.HEX.7/16-20X5.GR5.GREEN HUS-501606701
...
71
EXHAUST.TUBE.MUFFLR.RH.VANG HUS-532191549
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
69
GASKET.MUFF 806237 NOW 806425 HUS-532192442
...
9
Keepers HUS-596501502
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044861
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
21
Screws HUS-596321701
...
82
VALUE.OIL.DRAIN HUS-532428287
...
117
VALVE FUEL RESERVE HUS-532420828
...
15
TANK FUEL HUS-532422804
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
37
HOSE CLAMP HUS-532123487
...
20
CONTROL.THROTTLE.PRO. HUS-532424341
...
70
EXHAUST.TUBE.MUFFLR.LH.VANG HUS-532191548
...
11
CLUTCH. 5.0 PD. 2.5 OFFSET HUS-587255001
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
12
PULLEY.EXTENDED.SHAFT.GROUND HUS-586899601
...
79
Screws HUS-596134201
...
91
BUSHING.1.375OD HUS-532187495
...
90
SCREW 3/8-16X1 HUS-817000616
...
42
Washers HUS-596238901
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
