Husqvarna TS 342 - 96041037100 (2014-07) Tractors/Ride Mower

Model: TS 342 - 96041037100 (2014-07)

Back To Assemblies

Save Part Not Listed?
product name

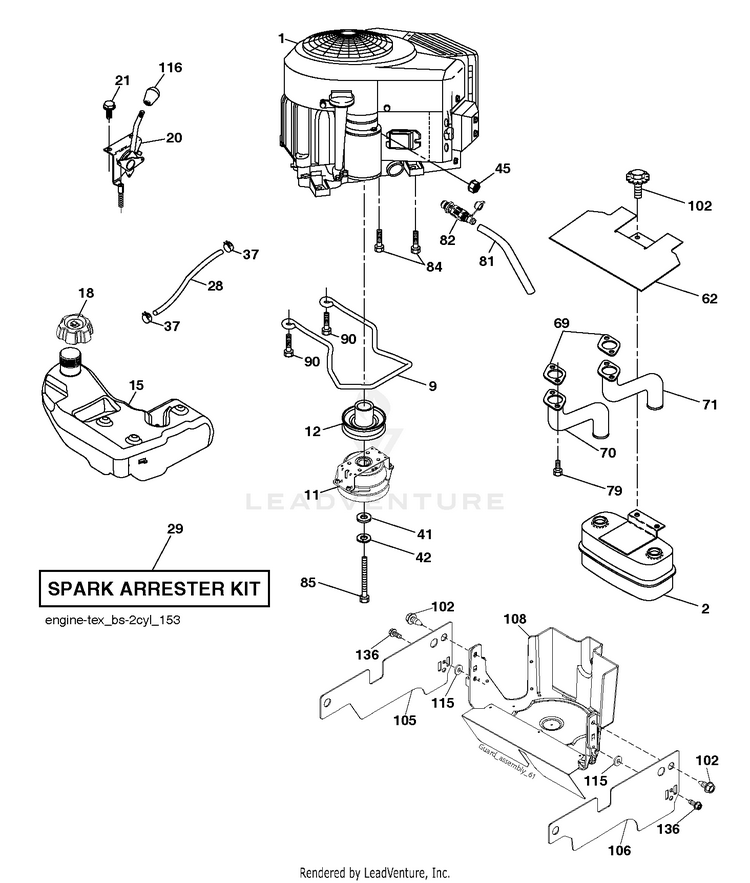

ENGINE

...
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
136
Screws HUS-596434001
...
9
Keepers HUS-596501502
...
21
Screws HUS-596321701
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
108
COVER ENGINE PULLEY COVER WITH HUS-587179509
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
20
THROTTLE.PRO.RSTART. 38 HUS-587242701
...
11
CLUTCH.OGURA.4.4PD.GT1.5-EH13V HUS-587241501
...
37
HOSE CLAMP HUS-532123487
...
79
Screws HUS-596134202
...
85
CLUTCH BOLT7/16-20X3.5 GR524HR HUS-581332804
...
15
TANK.FUEL.4GAL HUS-532193499
...
18
CAP.ASSY.FUEL.3".N-EPA.BLK.428 HUS-584248701
...
116
KNOB - SHIFT HUS-539132624
...
70
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
82
VALUE.OIL.DRAIN HUS-532428287
...
115
RETAINER HUS-532431761
...
84
SCREW.3/8-16 HUS-817060620
...
69
GASKET.MUFFLER HUS-532165391
...
105
SHIELD.SIDE.LH.3842"TEX FRN.BK HUS-501267202
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
1
Engine B&S Model No. 40U777-0001-B1 (590033401) HUS-000000000
...
106
SHIELD.SIDE.LH.3842"TEX FRN.BK HUS-501268202
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
90
SCREW 3/8-16X1 HUS-817000616
