Husqvarna TS 254XG - 96043031100 (2019-07) Riding Tractor

Model: TS 254XG - 96043031100 (2019-07)

Back To Assemblies

Save Part Not Listed?
product name

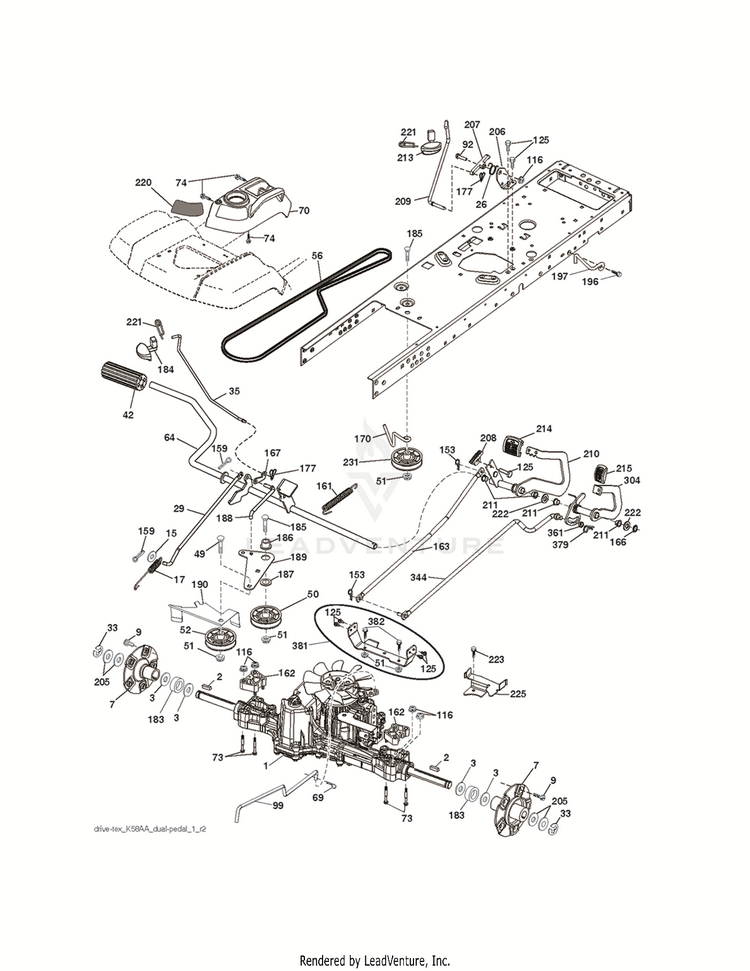

DRIVE

...
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
361
Bushings HUS-597136701
...
69
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
1
Transaxle, TUFFTORQ K58 AA (596038601) HUS-000000000
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
161
SPRING, RETURN LT HUS-532105709
...
159
Pins HUS-596029501
...
74
Screws HUS-596134101
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
99
Rods HUS-593982501
...
153
RETAINER M HUS-532004497
...
186
SPACER.RETAINER HUS-532194321
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
381
Service Kit HUS-597911301
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
177
PIN COTTER;LOCKING;BOWTIE;1IN HUS-587225301
...
196
SCREW 3/8-16X1 HUS-817000616
...
49
Bolts HUS-596136201
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
209
ROD ROD.CRUISECONTROL.GT.HUSQ/ HUS-590527802
...
9
Bolts HUS-596218701
...
42
PAD, FOOT PEDAL HUS-510089501
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
223
BOLTS HUS-598662601
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
35
ROD ROD.PARKINGBRAKE.GT.HUSQ/P HUS-590605902
...
344
Rods HUS-597647201
...
304
Pedals HUS-588987302
...
73
BOLT.HEX.FLNG.5/16-18X3.75 HUS-583613301
...
215
Pedals HUS-596908301
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
211
BEARING.NYLON HUS-532120183
...
379
Pins HUS-596580601
...
162
Spacers HUS-580457402
...
207
Latch HUS-587031402
...
116
GSPW Nuts HUS-596135701
...
197
Stop HUS-585658602
...
2
KEY, 1/4 SQ X 1 1/4 HUS-539912757
...
208
Gears HUS-596564101
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
210
Pedals HUS-588987202
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
56
Belts HUS-592855201
...
166
NUT.PUSH.625 HUS-532429164
...
220
REFLECTOR.RH.TEX GT HUS-532198908
...
187
Washers HUS-596135501
...
33
E RING HYT HUS-812000053
...
183
SPACER.SPLIT.1.000IDX1.75 HUS-587587401
...
7
HUB.PNT.GT.PM.1IN.AXLE.E-DIP HUS-586935402
...
163
Rods HUS-588566301
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
92
Screws HUS-595305701
...
29
ROD.BRAKE.K46 HUS-532403806
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
205
WASHER HUS-532123800
...
70
CONSOLE.ASM.RH.GT.FC.HUSQ HUS-532439661
...
382
Bolts HUS-596438301
...
185
BOLT HUS-872110622
...
3
WASHER T HUS-532007563
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
