Husqvarna TS 254XG - 96043031100 (2019-07) Riding Tractor

Model: TS 254XG - 96043031100 (2019-07)

Back To Assemblies

Save Part Not Listed?

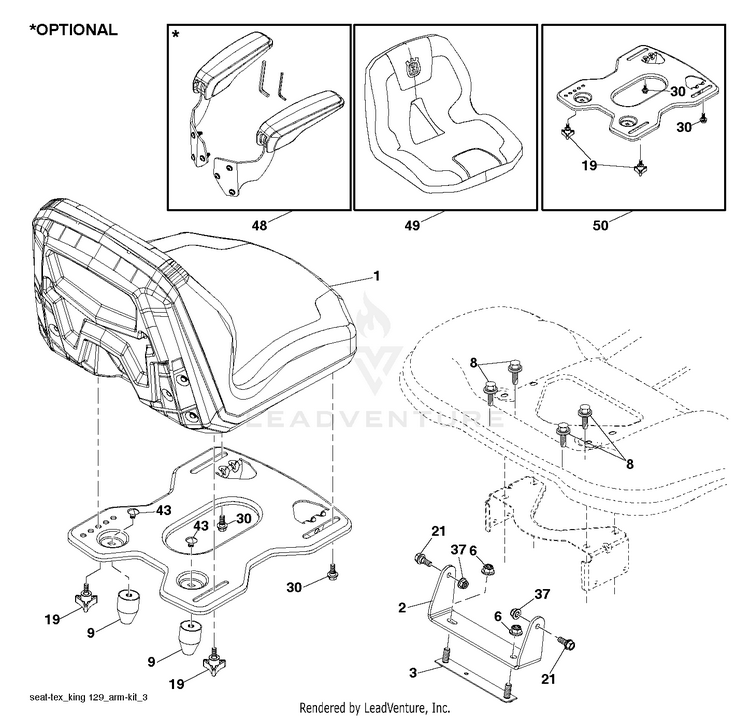

product name

SEAT

...
...
48
ARMREST SERVICE KIT HUS-547213101
...
6
GSPW Nuts HUS-521996502
...
9
Bumpers HUS-597785101
...
37
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
2
Brackets HUS-597329902
...
3
BRACKET ASSEMBLY REINFORCEMENT HUS-590777602
...
43
Hardware HUS-597869301
...
30
Hardware HUS-597781801
...
50
Service Kit HUS-598001601
...
49
Seats HUS-597959401
...
1
Seats HUS-597658101
...
19
GSPW Knobs HUS-597783101
...
21
Bolts HUS-596240701
