Husqvarna TS 248TD - 96043032500 (2020-08) Riding Tractor

Model: TS 248TD - 96043032500 (2020-08)

Back To Assemblies

Save Part Not Listed?
product name

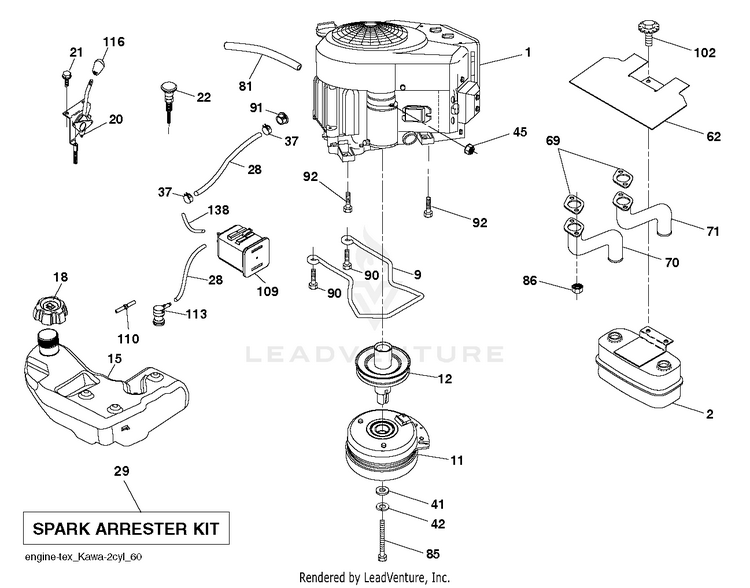

ENGINE

...
...
70
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
18
FUEL CAP Fits 2.00" filler neck HUS-529989701
...
113
VALVES HUS-597791601
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
110
VALVE.ASM.ANTI-SLOSH HUS-532414118
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
92
SCREW 3/8-16X1 HUS-817120616
...
116
KNOB - SHIFT HUS-539132624
...
90
SCREW 3/8-16X1 HUS-817000616
...
1
ENGINE KAWASAKI MODEL NO. FR651V (593006001) HUS-000000000
...
21
SCREW.#10X.750 (2 2) HUS-583533301
...
45
Hardware HUS-596133601
...
9
Keepers HUS-596501502
...
69
GASKET HUS-532178151
...
20
CONTROL.THROTTLE.PRO. HUS-532424341
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
91
BUSHING.1.375OD HUS-532187495
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
15
FUEL TANKS Fits 2.75" filler neck HUS-598703202
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
18
CAP ASSY FUEL 3" GRAY Fits 2.75" filler neck HUS-585124801
...
42
Washers HUS-596238901
...
41
WASHER HUS-532126197
...
85
BOLT.HEX.7/16-20X5.GR5.GREEN HUS-501606701
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
37
HOSE CLAMP HUS-532123487
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
11
CLUTCH. 5.0 PD. 2.5 OFFSET HUS-587255001
...
71
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
138
PURGE.LINE.36"REAR.CALIFORNIA HUS-532420718
...
109
CANNISTER, CARBON HUS-532414114
...
12
PULLEY.EXTENDED.SHAFT.GROUND HUS-586899601
