Husqvarna TS 248TD - 96043032500 (2020-08) Riding Tractor

Model: TS 248TD - 96043032500 (2020-08)

Back To Assemblies

Save Part Not Listed?
product name

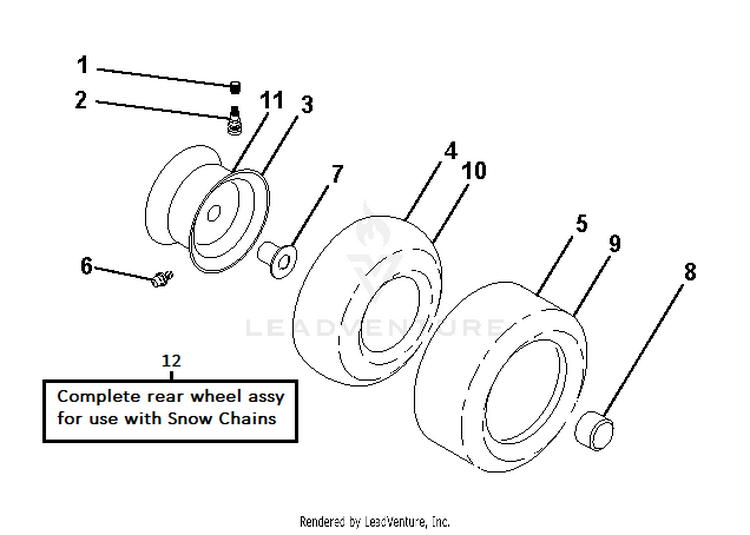

WHEELS & TIRES

...
...
10
TUBE - UNIVERSAL FOR 8" RIM (Service Item Only) HUS-532007152
...
11
RIM.ASM.8X7.REAR.SILVER Rear 8" HUS-532106108
...
9
TIRE.20X10-8.TURF.SAVER 20x10-8 Rear Tire (Not for use with Snow Chains) HUS-532125833
...
xx
6, 24OZ PNUEMASEAL BOTTLES HUS-576707201
...
7
BEARING.FLANGE (Front Wheel Only) HUS-532009040
...
1
VALVE CAP HUS-532059192
...
4
TUBE.16X6.5/7.5-8 (Service Item Only) HUS-532008134
...
2
VALVE STEM LT HUS-532065139
...
6
FITTING LT. (Front Wheel Only) HUS-532000278
...
5
TIRE.16X6.5-8.TURF.SAVER.FRONT FRONT (16 X 6.5-8) HUS-532122075
...
8
CAP.HUB.FRONT.LT.BLACK HUS-532104757
...
3
RIM.ASM.8X5.FRONT.SILVER FRONT HUS-532148736
...
12
Wheels 20x8-8 Rear Wheel Assy - For use with Snow Chains HUS-598927701
