Husqvarna TS 248TD - 96043032500 (2020-08) Riding Tractor

Model: TS 248TD - 96043032500 (2020-08)

Back To Assemblies

Save Part Not Listed?
product name

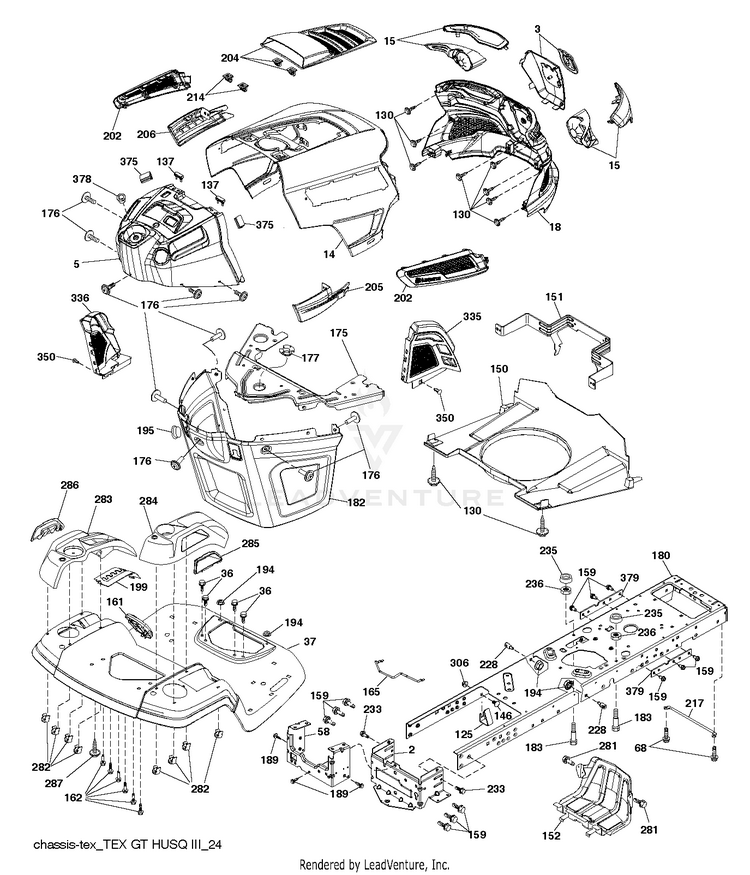

CHASSIS / FRAME

...
...
283
CONSOLE.DECK.LIFT.R.SDFL.HUSQ HUS-532439861
...
15
Service Kit HUS-597867801
...
378
BUSHING FLANGE; PLASTIC HUS-590849801
...
165
SUPPORT.TANK.REAR.B/TE HUS-532194330
...
180
KITS.TEX.BOLTED.CHASSIS.445559 HUS-582033101
...
336
COVER-LH.LOWER.DASH.GT2.BLACK HUS-532445309
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
281
SCREW 3/8-16X1 HUS-817000616
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
379
CHASSIS.PLATE.REINFORCEMNT.431 HUS-593206902
...
137
BUMPER DASH HUS-532407590
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
375
BUMPER CLIP-ON. DASH 1" HUS-586908201
...
146
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 HUS-581857901
...
335
COVER.LOWER.DASH.RH.BLACK HUS-532448204
...
306
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
162
Screws HUS-596134101
...
3
Covers HUS-597688201
...
183
Screws HUS-595305701
...
68
Screws HUS-596030701
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
58
DRAWBAR.UPPER.2PC,LRG.FENDER HUS-532412281
...
287
SCREW 1/4X20 HUS-817600406
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
161
WINDOW.FUEL.LT.HUSQ.TEX.498 HUS-532439781
...
177
BUSHING STEERING HUS-532195228
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
- -
TRACTOR BUMPER KIT ALL MODELS HUS-531307007
...
285
CONSOLE INSERT RH HUS-532416315
...
150
AIR.DUCT.GTV.BLACK HUS-532439774
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
286
CONSOLE.INSRT.LH.HUSQ.LT.BLACK HUS-532416317
...
233
BOLT.SHOULDER HUS-532196539
...
18
Grilles HUS-597407101
...
37
FENDER.TLT.FS.W/CPH/FW/RSF.ORN HUS-532423694
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
125
CLIP.FUEL.LINE HUS-581684801
...
204
Vents HUS-597408001
...
202
Vents RH HUS-597867701
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
194
GSPW Nuts HUS-596135701
...
2
DRAWBAR.LOWER.2PC.18/22 HUS-532412282
...
5
DASH.UPR.GT2.SM.PTO.MC.HR.498 HUS-590748811
...
350
CLIP.X-MAS.TREE HUS-532445143
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
217
ROD.PIVOT.HOOD HUS-532409167
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
284
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT HUS-532439150
...
235
Spacers HUS-596564201
...
199
PLATE.DECK.LIFT.HUSQVARNA.GT HUS-532198259
...
130
Screws HUS-596321701
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
