Husqvarna TS 248G - 96041044400 (2019-08) Riding Tractor

Model: TS 248G - 96041044400 (2019-08)

Back To Assemblies

Save Part Not Listed?
product name

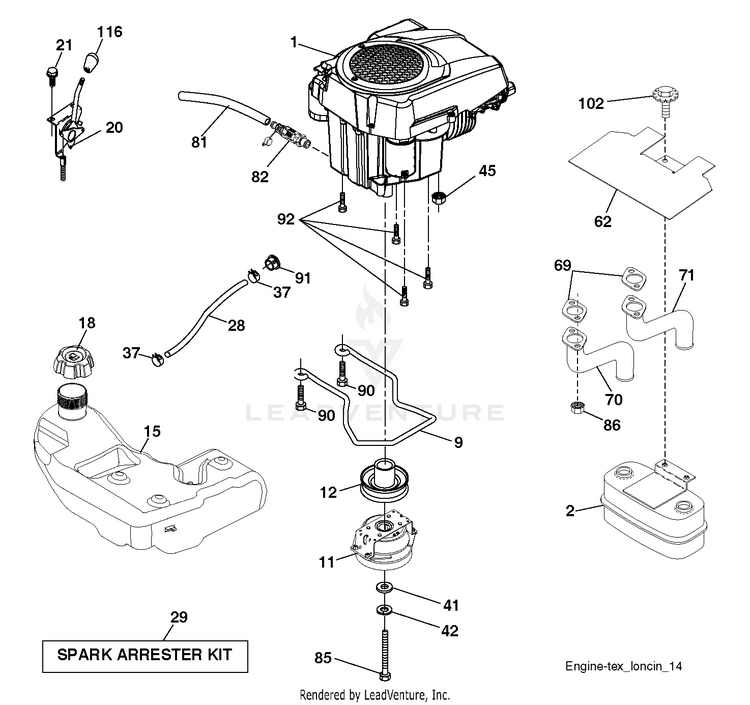

ENGINE

...
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
15
TANK.FUEL.4GAL HUS-532193499
...
20
CONTROL.THROTTLE/CHOKE.PRO.45 HUS-586219601
...
9
Keepers HUS-596501502
...
41
WASHER HUS-532126197
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
42
Washers HUS-596238901
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH01 HUS-587241401
...
85
BOLT.HEX.7/16-20X3.GR5.YELLOW HUS-501606901
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
116
KNOB - SHIFT HUS-539132624
...
45
NUT HEXAGON WITH FLANGE, SERRA HUS-593356401
...
1
NEEDS DESCRIPTION HUSQVARNA MODEL NO. HV764 (COMPLETE IPL AVAILABLE SEPARATELY) HUS-598632103
...
12
PULLEY ENGINE HUS-532194343
...
91
BUSHING.1.375OD HUS-532187495
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
37
HOSE CLAMP HUS-532123487
...
92
SCREW 3/8-16X1 HUS-817120616
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
21
Screws HUS-596321701
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
90
SCREW 3/8-16X1 HUS-817000616
...
82
VALUE.OIL.DRAIN HUS-532428287
