Husqvarna TS 246 - 96041039700 (2016-06) Riding Tractor

Model: TS 246 - 96041039700 (2016-06)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

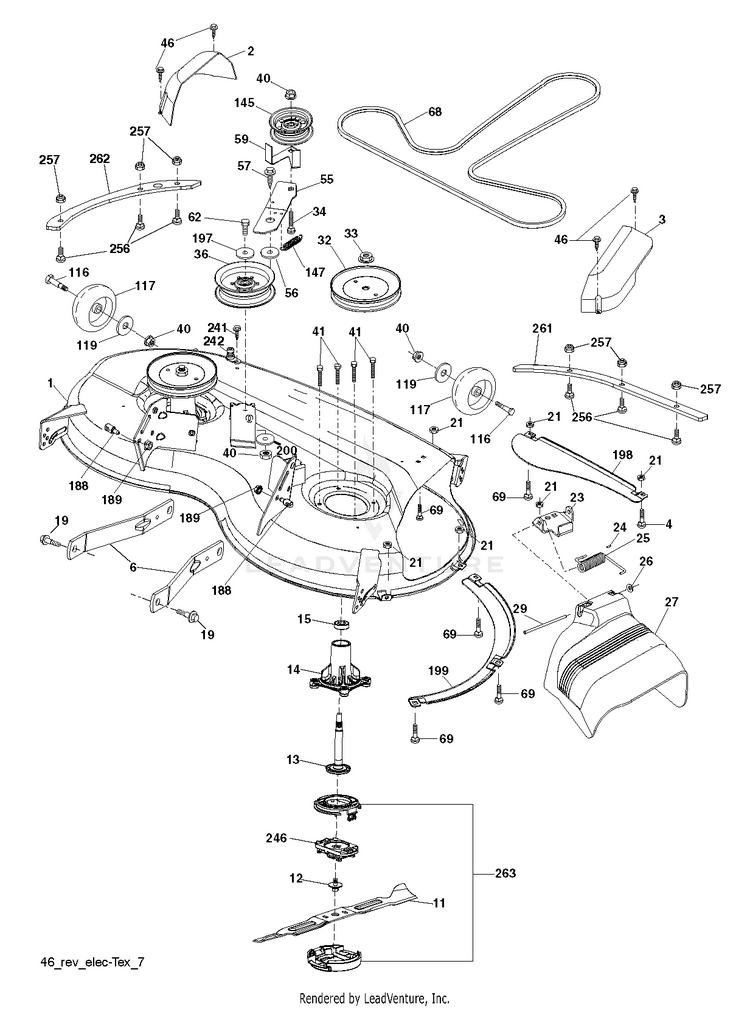

MOWER DECK / CUTTING DECK

...
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
199
SERVICE KIT BAFFLE FRONT HUS-531170701
...
189
GSPW Nuts HUS-596135701
...
119
GSPH HUS-596134901
...
145
PULLEY.IDLER.FLAT HUS-532177968
...
246
HOLDER.BLADE.REVOLUTION HUS-580954003
...
197
GSPH HUS-596134901
...
15
BEARING.MANDREL.TOP.EXTENDED HUS-585323901
...
147
SPRING.MOWER.DRIVE.ELECTRIC HUS-532197251
...
263
CAP.REVOLUTION ASM HUS-586638501
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
117
WHEEL.GAUGE.RALLY.NARROW HUS-589527401
...
55
SERVICE KIT IDLER.ARM HUS-531169401
...
62
Bolts HUS-596564404
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
34
GSPW Bolts HUS-596136101
...
116
Bolts HUS-596434402
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
12
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
57
SCREW 3/8-16X1 HUS-817000616
...
32
PULLEY.MANDREL.5.438.P HUS-532195945
...
27
SHIELD.DEFLECTOR.MOWER.46"BLAC HUS-532405357
...
13
KIT,MANDREL,NONGREASE,REVOL HUS-587820201
...
262
PLATE.REINF.DECK.46".SIDE.BLK HUS-589482005
...
21
Hardware HUS-596040501
...
261
PLATE.REINF.DECK.46".FRONT.BLK HUS-589481805
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
36
PULLEY.IDLER.2006 HUS-532196106
...
26
NUT PUSH M HUS-532110452
...
59
SERVICE KIT GUARD HUS-531165901
...
11
BLADE.REVOLTION.46"BAGER.PT43 HUS-581043901
...
68
V-BELT.DRIVE.MWR.MECHANICL.46" HUS-584453101
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
56
SPACER.RETAINER HUS-532199092
...
33
Nuts HUS-596134801
...
- -
MANDREL.INT.SPACER.NONGRS.REV HUS-587126105
...
200
Washers HUS-596135501
...
- -
DECK.ASM.SVCX.46B.HP.E.2GW.WP HUS-588839301
...
14
KIT,MANDREL,NONGREASE,REVOL HUS-587820201
...
69
BOLT HUS-872140505
...
242
PORT.WASHOUT HUS-532415598
...
257
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
24
CAP-SLEEVE LT HUS-532105304
...
4
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
198
SERVICE KIT BAFFLE CENT HUS-531170601
...
3
COVER.MANDREL.RH.46" HUS-532405506
...
19
BOLT.SHOULDER HUS-532196539
...
29
Rods HUS-595297001
...
1
DECK.SVC 46" 441616X498 GREY HUS-532444379
...
2
COVER.MANDREL.LH.46" HUS-532405507
...
256
BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801
...
...
...
