Husqvarna TS 246 - 96041038501 (2016-10) Tractors/Ride Mower

Model: TS 246 - 96041038501 (2016-10)

Back To Assemblies

Save Part Not Listed?
product name

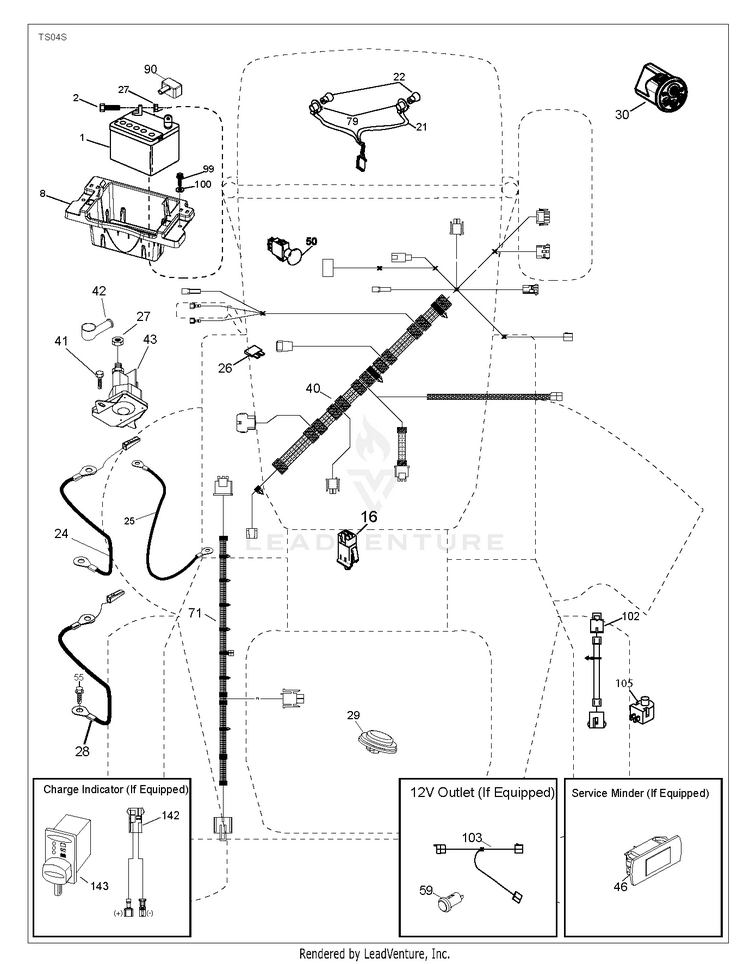

ELECTRICAL

...
...
79
BULB HOLDER ASM. HUS-532175242
...
40
HARNESS.DASH.EL.SIS.RECT.FBAT HUS-585215902
...
43
Solenoids HUS-582042802
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
29
SWITCH.SEAT.OPC.GRY.BUTTON/CAP HUS-581429302
...
25
CABLE.STARTER.8GA.17.5 HUS-585555501
...
28
CABLE.GROUND.STARTER HUS-585306901
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
102
REVERSE SWITCH HUS-532407568
...
24
CABLE.BTRY.HARN.POS.LEAD HUS-585734301
...
42
COVER.TERMINAL.RED HUS-532154336
...
22
LIGHTBULB HUS-532004152
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
30
SMARTSWITCH.MY15.TRACTOR HUS-586590708
...
46
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
105
HARNESS PIGTAIL PCH TEX ROS HUS-532404454
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
99
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
8
TRAY.BATTERY BOX.FRONT HUS-587205101
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
41
Screws HUS-596437001
...
100
Washers HUS-596135301
...
26
FUSE 20AMP HUS-532175158
...
71
HARNESS.CHAS.TEX.SIS.FBAT.TWIN HUS-585216001
