Husqvarna TS 246 - 96041038501 (2016-10) Tractors/Ride Mower

Model: TS 246 - 96041038501 (2016-10)

Back To Assemblies

Save Part Not Listed?
product name

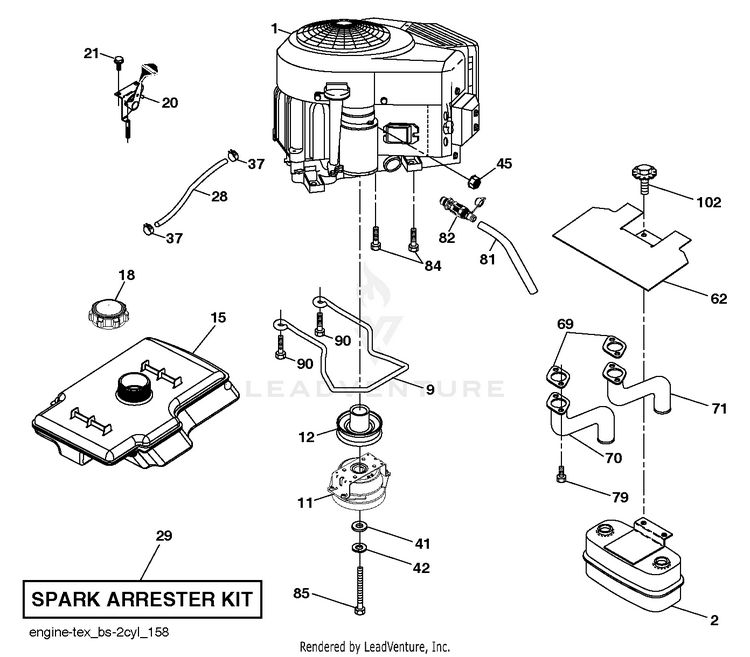

ENGINE

...
...
9
Keepers HUS-596501502
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
15
TANK ASM.REAR.2.5GA.DAPCO.E10 HUS-583462301
...
82
VALUE.OIL.DRAIN HUS-532428287
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
1
ENGINE B&S MODEL NO 44N677-0016-G1 (501259501) HUS-000000000
...
20
THROTTLE CABLE HUS-587242504
...
90
SCREW 3/8-16X1 HUS-817000616
...
18
CAP.ASSY.FUEL.3".N-EPA.BLK.428 HUS-584248701
...
21
Screws HUS-596321701
...
41
WASHER HUS-532126197
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
84
SCREW.3/8-16 HUS-817060620
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
70
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
69
GASKET.MUFFLER HUS-532165391
...
42
Washers HUS-596238901
...
79
Screws HUS-596134202
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
37
HOSE CLAMP HUS-532123487
