Husqvarna TS 242XD - 96043031300 (2019-07) Riding Tractor

Model: TS 242XD - 96043031300 (2019-07)

Back To Assemblies

Save Part Not Listed?
product name

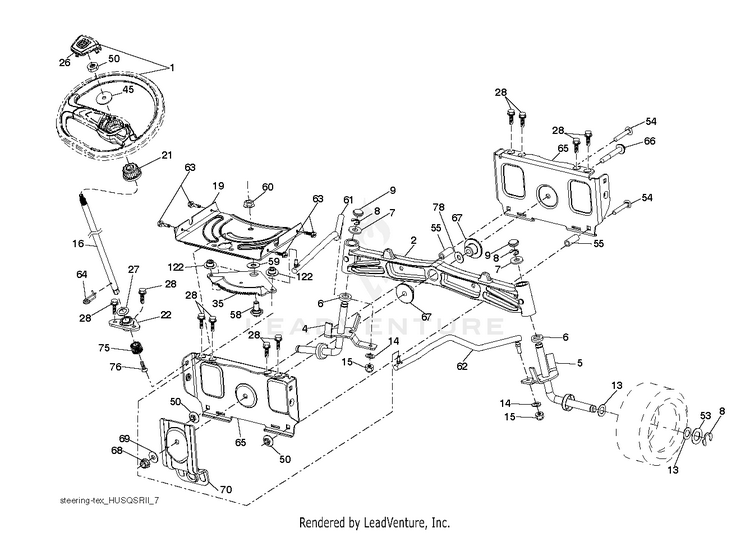

STEERING

...
...
54
BOLT HUS-874760636
...
66
BOLT HEX FGHD 7/16-14 X 3 SERR HUS-871020748
...
75
KIT.SRVC.STEERINGSHAFT.PINION HUS-587738906
...
45
WASHER.3/8ID.2-3/8OD.12GA.PLTD HUS-587016401
...
27
Washers HUS-596933401
...
28
SCREW, 3/8-16X3/4 HUS-817000612
...
62
Links HUS-597070302
...
70
BRACKET FRONT DECK SUSPENSION HUS-585338802
...
19
SERVICE KIT PLATE PLATE.STEER. HUS-531169101
...
60
NUT.FLANGE.LOCK.5/8-11 HUS-583612801
...
67
BUSHING, AXLE HUS-529496302
...
76
SCREW HEAD SOCKET LRVB HUS-580683601
...
78
THRUST WASHER HUS-532057079
...
58
BOLT.SHOULDER.SECTOR.P HUS-532194747
...
61
Links HUS-597070202
...
15
NUT CROWNLOCK 3/8-24 HUS-873540600
...
14
Washers HUS-596238701
...
1
Service Kit HUS-597866101
...
9
CAP.SPINDLE.BLACK HUS-532121232
...
6
WASHER THRUST HUS-532006266
...
22
KIT.SRVC.STEERINGSHAFT.LWRBSHG HUS-587738901
...
69
WASHER.1.5X.505X.118 HUS-532199162
...
122
CAP.GEAR.SECTOR.TEX HUS-583576601
...
65
BRACE.AXLE.FRONT.NLT/N HUS-532194734
...
13
WASHER HUS-532121749
...
68
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
4
SPINDLE.WLDMT.LH.15IN BLK.X431 LH HUS-538690501
...
8
RING CLIP HUS-812000029
...
21
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
35
GEAR.SECTOR.PLATE.DDL. HUS-532194732
...
50
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
59
WASHER.THURST.SECTOR.S HUS-532194748
...
7
WASHER HUS-532121748
...
2
AXLE.SVC.ASM CAST IRON.TEX HUS-532413591
...
63
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
55
SPACER.BRACE.AXLE HUS-532414736
...
53
WASHER.HARDENED HUS-532188967
...
16
KIT.SRVC.STEERINGSHAFT.2HISHFT HUS-587738904
...
5
SPINDLE.WLDMT.RH.15IN BLK.X431 RH HUS-538690601
...
64
RETAINER.CLIP.SPRING.S HUS-532199849
...
26
Steering HUS-594949101
