product name

Husqvarna TS 242 - 96043030600 (2019-07) Riding Tractor

Model: TS 242 - 96043030600 (2019-07)

Back To Assemblies

Save Part Not Listed?
product name

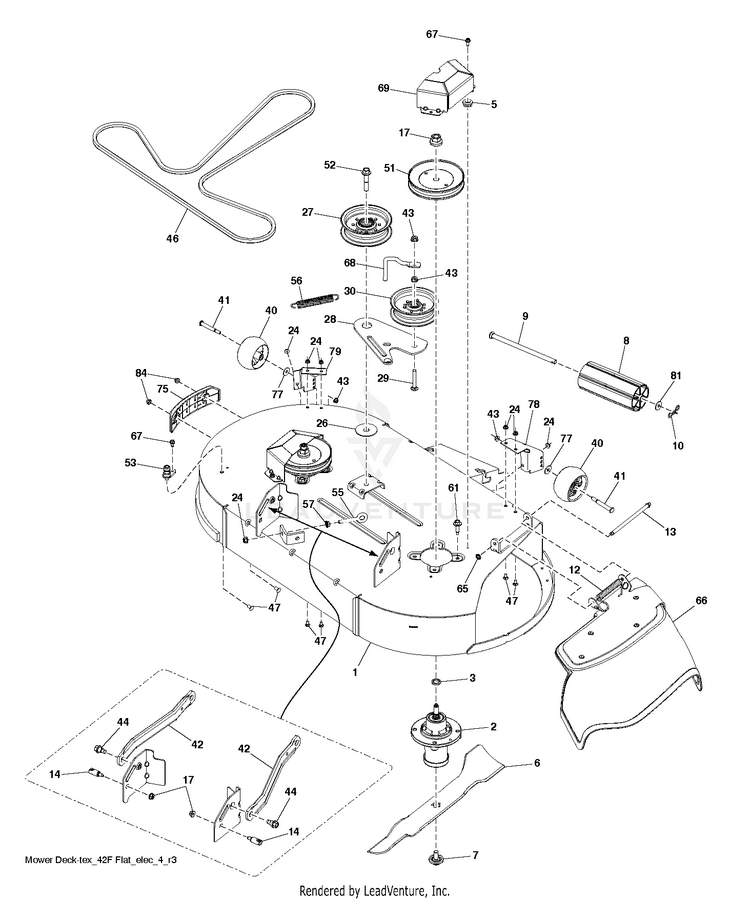

MOWER DECK / CUTTING DECK

...
...
68
KEEPER.BELT.IDLER.54"T HUS-532198468
...
66
DEFLECTOR.ASM.42.FCS.ORANGE HUS-587305701
...
43
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
84
SHOULDER BOLT 5/16-18TT HUS-532170165
...
1
SERVICE KIT SVC.WELDMENT.42F HUS-591117901
...
7
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
53
PORT.WASHOUT HUS-532415598
...
55
GSPW Bolts HUS-596240801
...
61
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
26
WASHER HUS-532178515
...
24
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
6
BLADE.42.FCS.BAGGING.BLADE. HUS-586918102
...
- -
COUPLING.QUICK CONNECT HUS-532416405
...
75
BUMPER.42CC.TRIM.SIDE.ASSY.HUS HUS-582683203
...
34
Nuts HUS-596322601
...
65
NUT PUSH M HUS-532110452
...
69
COVER.42".MANDREL.FCS.PNT.498 HUS-586936805
...
27
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
57
GSPW Hardware HUS-596039201
...
51
PULLEY MANDREL 5.0" HUS-532199791
...
17
GSPW Nuts HUS-596135701
...
40
WHEEL.GAUGE.RALLY HUS-589527301
...
47
GSPW Bolts HUS-595901601
...
81
BUSHING.NOSE.ROLLER HUS-582360501
...
10
PIN.COTTER.5/16.BOW TI HUS-532194208
...
67
SCREW.1/4-20X5/8 HUS-532137729
...
46
BELT.42.FCS.TRACTOR.DECK.DRIVE HUS-587270101
...
30
PULLEY.IDLER.2006 HUS-532196106
...
42
LINK FIXED MOWER DRAWBAR BLACK HUS-536050602
...
5
Nuts HUS-596134801
...
28
ARM.42"FCS.CLUTCHING.X431 HUS-586874002
...
77
GSPH HUS-596134901
...
41
Bolts HUS-596434404
...
56
SPRING.EXTN.42.FCS.TR.DECK.DRV HUS-587358401
...
2
MANDREL ASM, CAST IRON HUS-539131898
...
29
Bolts HUS-596337801
...
8
NOSE ROLLER 48" HUS-532176066
...
- -
Decks HUS-598510301
...
52
SCREW.7/16-14 X 2.125.WASHER HUS-588438301
...
78
BRACKET.PNT.GA-WHEEL.FCS.42.RH HUS-501808302
...
9
Rods HUS-594092501
...
13
Rods HUS-595297001
...
14
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
44
BOLT.SHOULDER HUS-532196539
...
79
BRACKET.PNT.GA-WHEEL.42FCS.LH (590439002) BRACKET LH HUS-590439002
...
12
SPRING.42.FCS.DEFLECTOR HUS-587354701
