Husqvarna TS 242 - 96043030600 (2019-07) Riding Tractor

Model: TS 242 - 96043030600 (2019-07)

Back To Assemblies

Save Part Not Listed?
product name

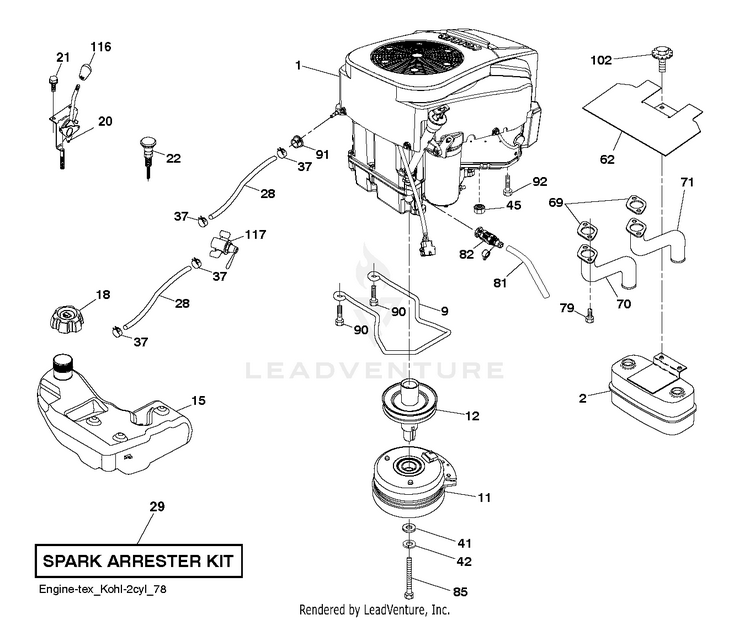

ENGINE

...
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
41
WASHER HUS-532126197
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
11
CLUTCH. 5.0 PD. 2.5 OFFSET HUS-587255001
...
21
SCREW.#10X.750 (2 2) HUS-583533301
...
1
ENGINE KOHL MODEL NO. KT725-3087 (596957001) HUS-000000000
...
116
KNOB - SHIFT HUS-539132624
...
85
BOLT.HEX.7/16-20X5.GR5.GREEN HUS-501606701
...
18
CAP ASSY FUEL 3" GRAY HUS-585124801
...
90
SCREW 3/8-16X1 HUS-817000616
...
71
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
70
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
92
SCREW 3/8-16X1 HUS-817120616
...
69
GASKET.EXHAUST.KOHL.CV18-CV26 HUS-532186054
...
82
VALUE.OIL.DRAIN HUS-532428287
...
20
THROTTLE.KOHL.PRO.#88PAD_46" HUS-587631703
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
15
FUEL TANK, 4GAL, 2.25"NECK, 20 HUS-529998404
...
42
Washers HUS-596238901
...
91
BUSHING.1.375OD HUS-532187495
...
9
Keepers HUS-596501502
...
37
HOSE CLAMP HUS-532123487
...
12
PULLEY.EXTENDED.SHAFT.GROUND HUS-586899601
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
