Husqvarna TS 242 - 96041040000 (2017-01) Tractors/Ride Mower

Model: TS 242 - 96041040000 (2017-01)

Back To Assemblies

Save Part Not Listed?
product name

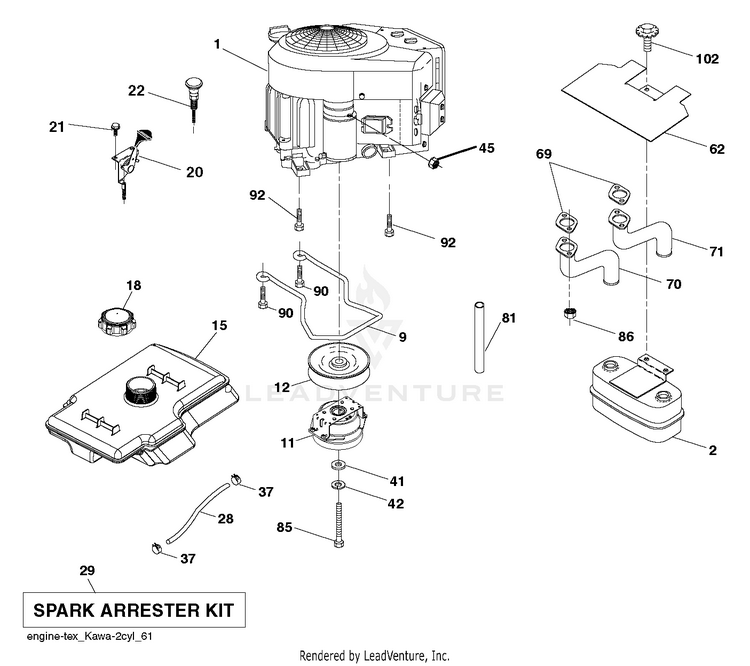

ENGINE

...
...
69
GASKET HUS-532178151
...
85
CLUTCH BOLT7/16-20X3.5 GR524HR HUS-581332804
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
37
HOSE CLAMP HUS-532123487
...
18
CAP.ASSY.FUEL.3".N-EPA.BLK.428 HUS-584248701
...
1
KAWA Model No. FR600V-AS11 (581477001) HUS-000000000
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
70
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
15
TANK ASM.REAR.2.5GA.DAPCO.E10 HUS-583462301
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.60" HUS-587044860
...
11
CLUTCH.OGURA.4.4PD.GT1.5-EH13V HUS-587241501
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
41
WASHER HUS-532126197
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
20
CONTROL.THROTTLE.COBRA.BLACK HUS-532412165
...
42
Washers HUS-596238901
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
92
SCREW 3/8-16X1 HUS-817120616
...
71
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
21
Screws HUS-596321701
...
9
Keepers HUS-596501502
...
90
SCREW 3/8-16X1 HUS-817000616
