Husqvarna TS 238 - 96041036902 (2015-07) Riding Tractor

Model: TS 238 - 96041036902 (2015-07)

Back To Assemblies

Save Part Not Listed?
product name

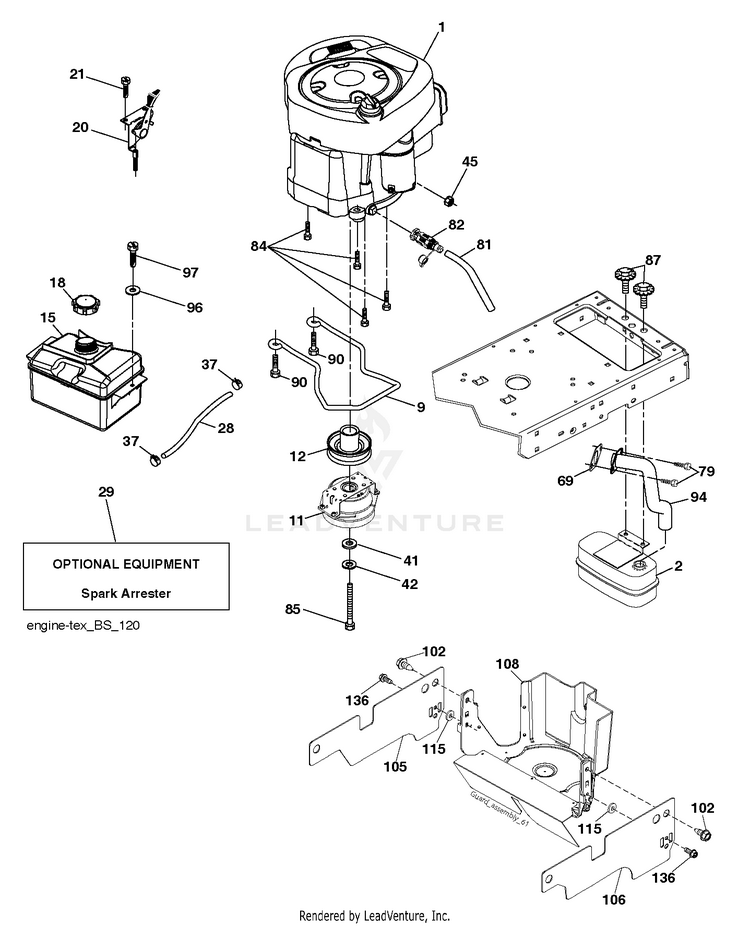

ENGINE

...
...
2
MUFFLER.SINGLE.CYL.KOHL/B&S HUS-532188655
...
96
Washers HUS-596135301
...
41
WASHER HUS-532126197
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
84
SCREW.3/8-16 HUS-817060620
...
21
Screws HUS-596321701
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
90
SCREW 3/8-16X1 HUS-817000616
...
42
Washers HUS-596238901
...
105
SHIELD.SIDE.LH.3842"TEX FRN.BK HUS-501267202
...
20
THROTTLE CABLE HUS-587242604
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
108
COVER ENGINE PULLEY COVER WITH HUS-587179509
...
1
Engine B&S Model No. 31S777-0003-B5 (597359801) HUS-000000000
...
79
Screws HUS-596134201
...
37
HOSE CLAMP HUS-532123487
...
85
CLUTCH BOLT7/16-20X3.5 GR524HR HUS-581332804
...
9
Keepers HUS-596501502
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
106
SHIELD.SIDE.LH.3842"TEX FRN.BK HUS-501268202
...
15
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
82
VALUE.OIL.DRAIN HUS-532428287
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
136
Screws HUS-596434001
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
115
RETAINER HUS-532431761
...
94
EXHAUST.TUBE.B&S.28/31 HUS-581880901
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
11
CLUTCH.OGURA.4.4PD.GT1.5-EH13V HUS-587241501
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
